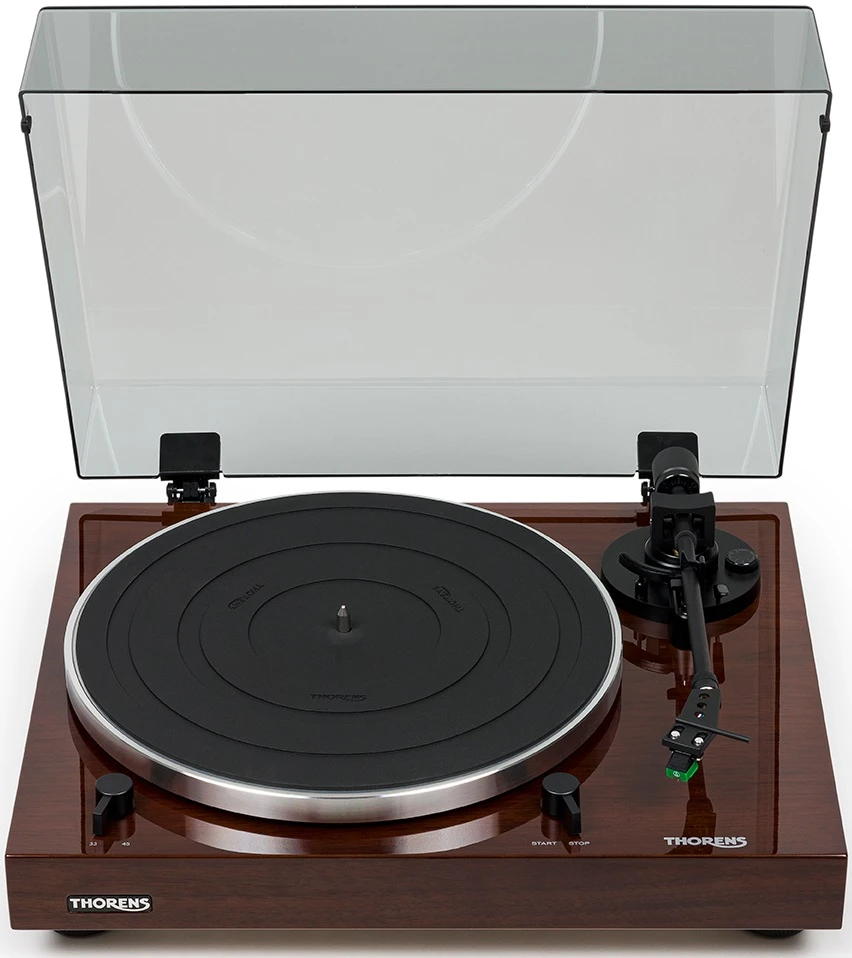

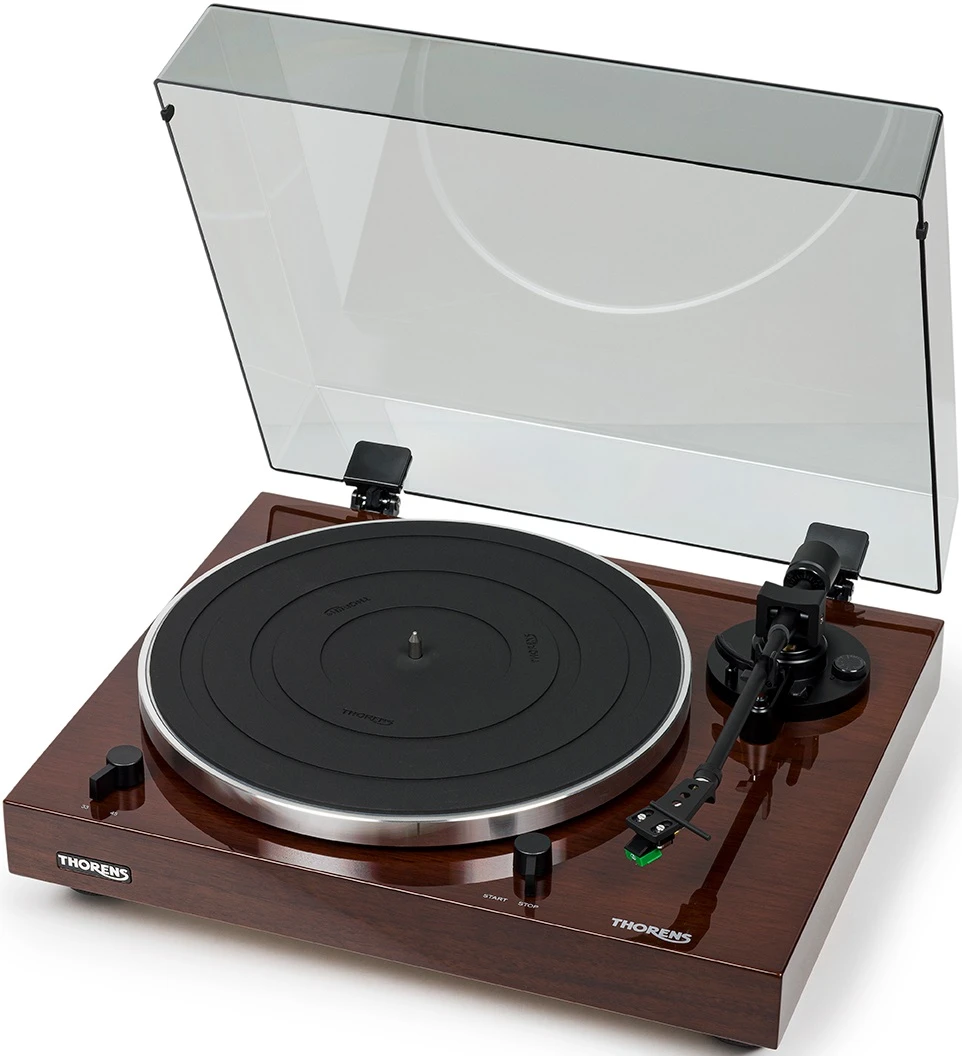

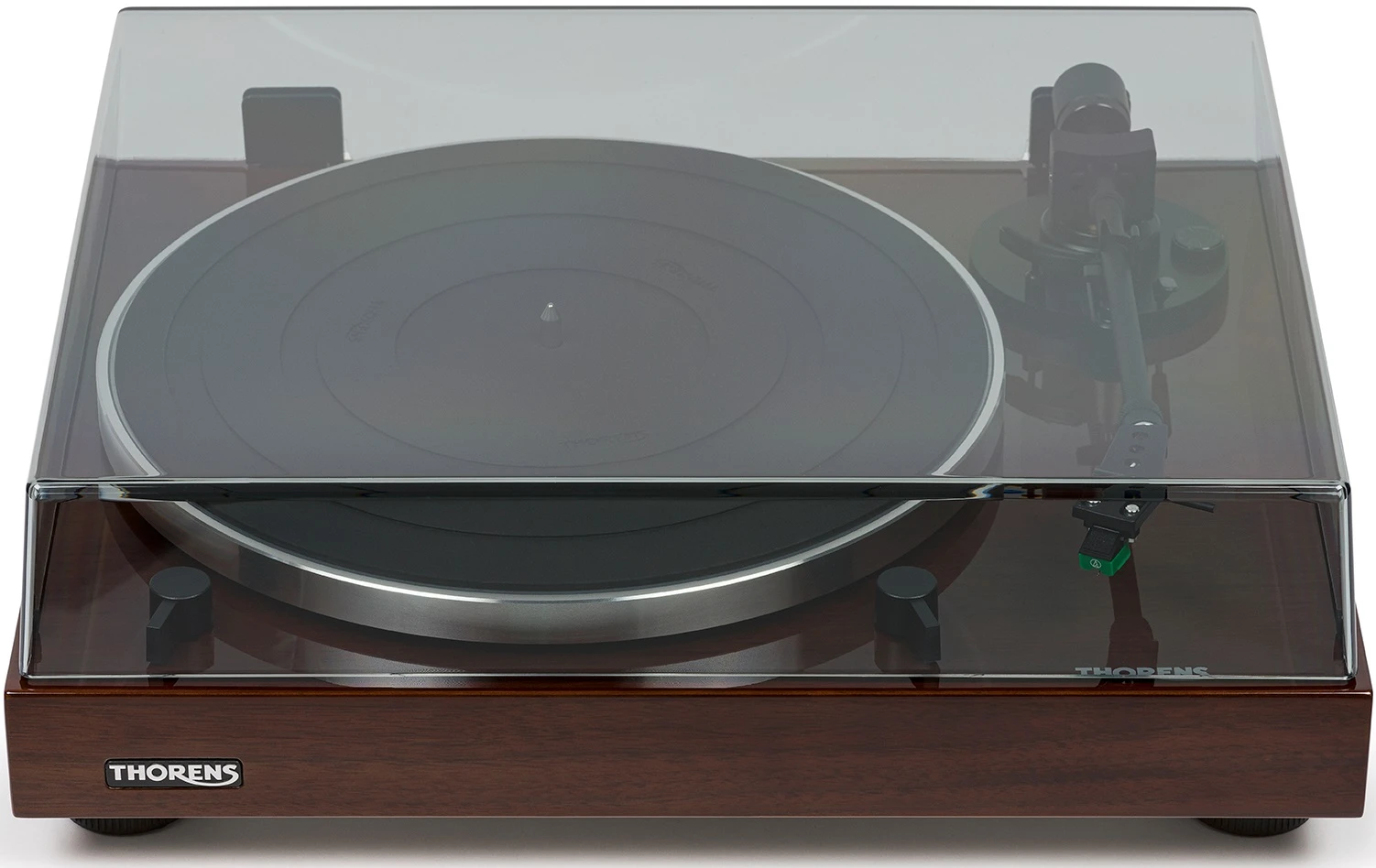

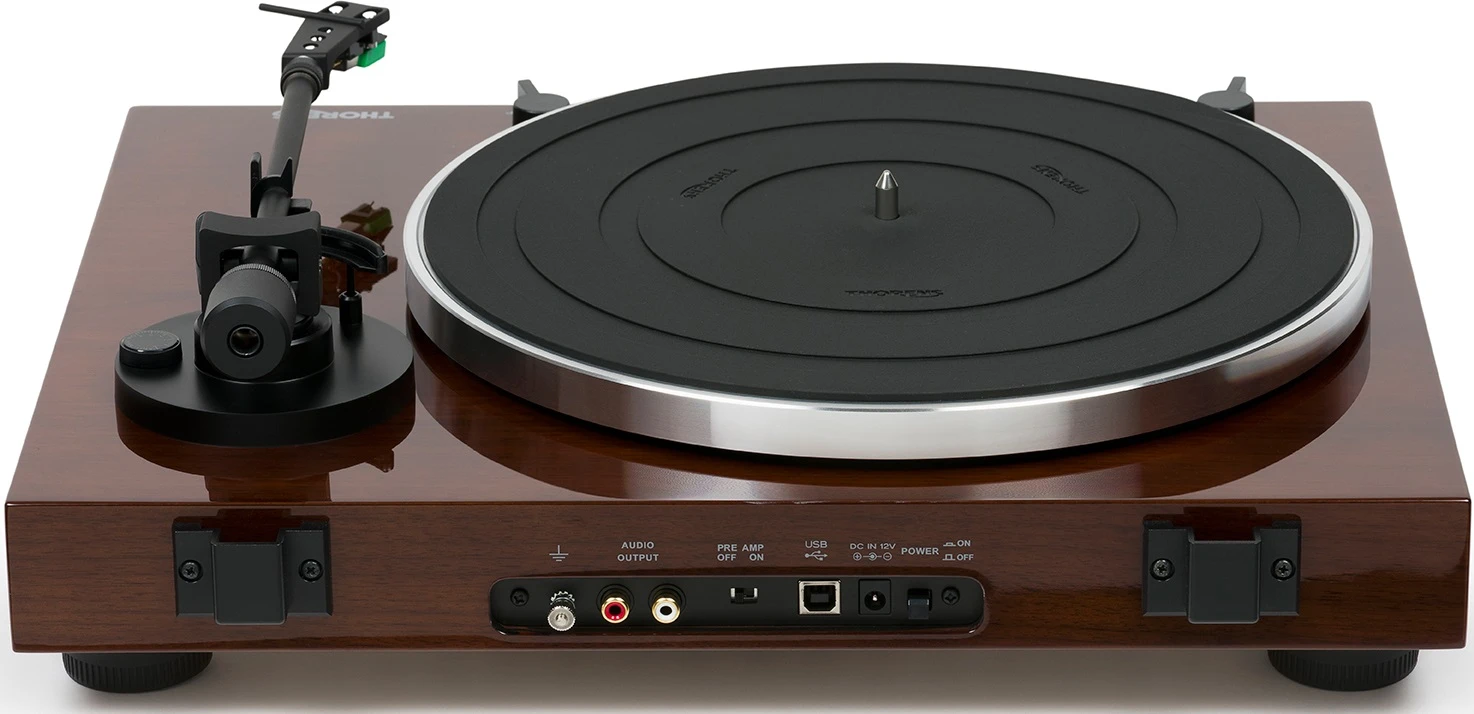

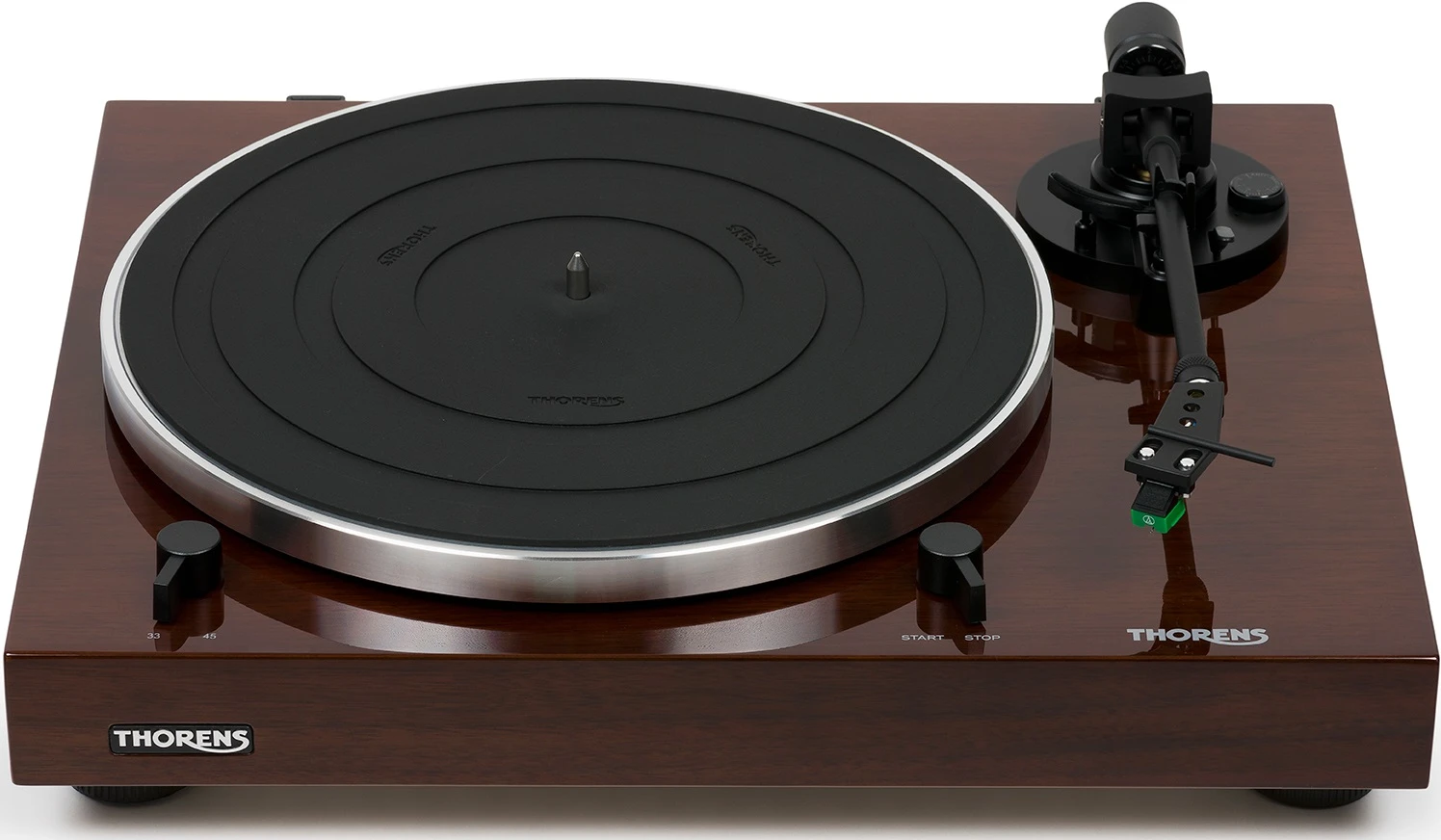

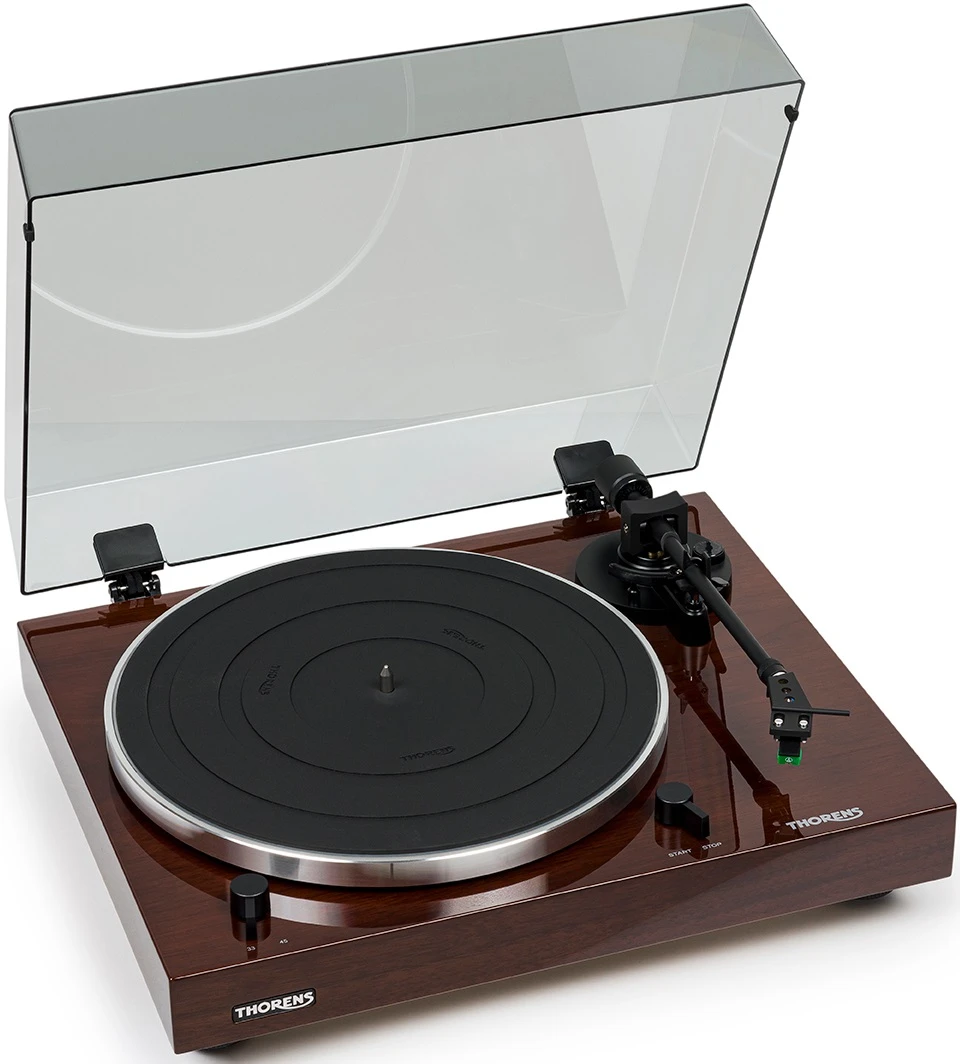

Thorens TD 202 Turntable With AT 95E Cartridge (Walnut)

New TD 202 completes the new series of manual plug and play
turntables. Compared with its “smaller” brother TD 201 it comes with a more
massive plinth and a AT 95E cartridge.

SPECIAL FEATURES

The integrated phono stage includes an additional
analogue/digital converter with USB out. So the record played will be
automatically digitized and can easily be recorded on a computer using several
kinds of recording software that can be downloaded from the web.

Turntable section

Drive System Belt
Drive

Motor DC Motor

Speed 33 1/3 RPM,
45 RPM

Rotation Speed
Variation +/–2%

Wow and Flutter
0.2%

Signal-to-Noise Ratio
67dB or higher (A-weighted, 20kHz LPF)
60dB or higher (unweighted, 20kHz LPF)

Platter Aluminum
Die-cast

Diameter of Platter
12″, 300mm

Tonearm section
Alumi tube

Type Static
Balance, Straight

Effective Arm Length 8.8″,
223.6mm

Stylus Pressure Range
0 to 4g

Supported Cartridge
Weight 3.5 to 6.0g

Overhang 18.6mm

Anti-skating
Adjustment Supported

Cartridge section

Type MM type
(Audio-Technica AT-95E)

Stylus Construction
Bonded Diamond

Frequency Response
20Hz to 20kHz

Channel Separation
>18dB

Channel Balance
2.5dB

Vertical Tracking
Angle 20 degrees

Supported Load
Impedance 47k ohms

Output Voltage
2.5mV (1kHz, 3.54cm/sec.)

Stylus Pressure
2.0g +/–0.5g

Cartridge Weight
5.7g +/–0.5g

Head-shell Weight
11g (including Screws, Nuts and Wires)

Analog Output

Connector RCA Pin
jack (Gold-plated)

Power AC 100 to
240V, 50/60Hz

Power Consumption
1.5W (less than 0.5W at Standby)

Overall Dimensions (W
x H x D)
420 x 355x 121mm

Weight
Approx. 3.9 kg
