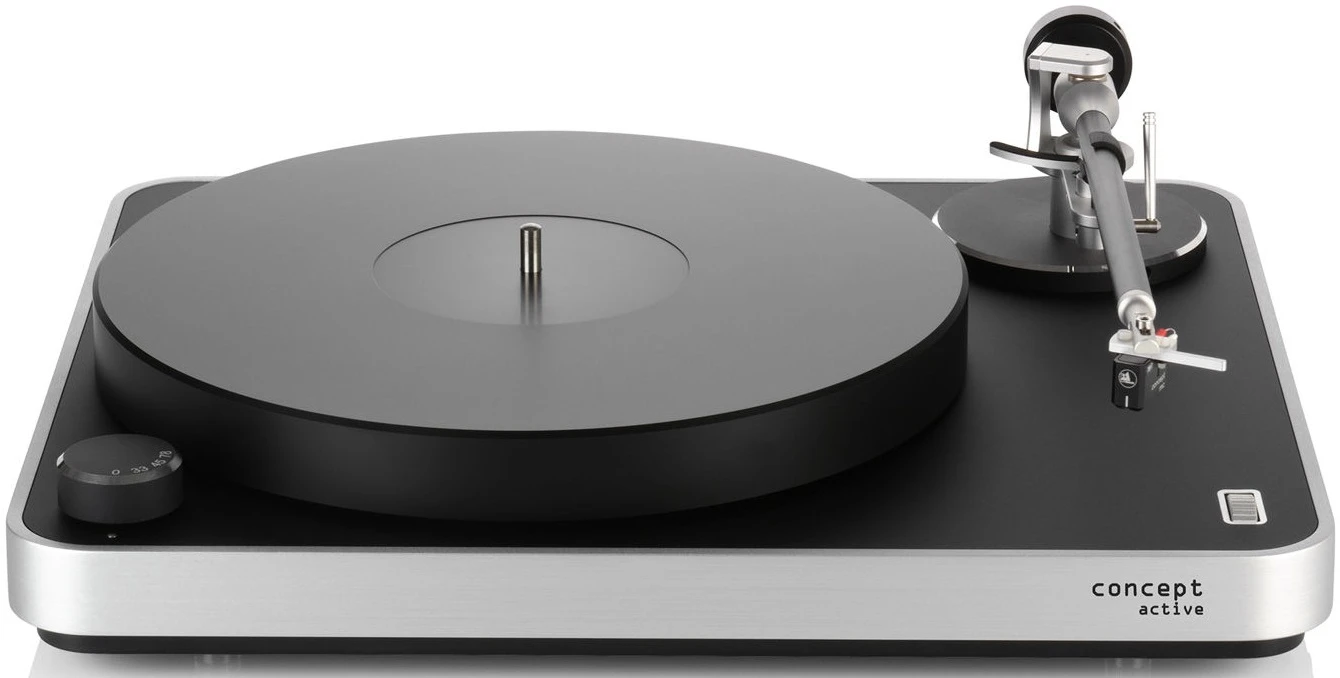

Clearaudio Concept Active Turntable With Internal Phono Preamp & Headphone Amp (Silver)

CONSTRUCTION DETAILS

Resonance-optimised
body, highly compressed wood chassis, core of natural medium-density wood
fibre within an aluminium surround and upper layer incorporating a high tech
synthetic compound

SPEED
RANGES

33 ⅓,
45 and 78 rpm

DRIVE
UNIT

Decoupled
and resonance damped DC motor, flat belt-drive and plug-in power supply unit
designed for worldwide use with all networks and power frequencies

BEARING

Polished
and tempered steel shaft in a sintered bronze bushing, runs on a mirror of
Teflon

PLATTER

Synthetic
material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium
subplatter.

SPEED
ACCURACY (MEASURED)

± 0.05
%

POWER
CONSUMPTION

Max.
consumption: 5.5 Watt
Off mode: 0.0 Watt

OF THE
INTEGRATED PHONOPREAMP BY 1KHZ

+52 dB
(MM mode)
+72 dB (MC mode)

AMPLIFICATION
OF THE INTEGRATED PHONOPREAMP BY 1KHZ

<
0,02 % (MM mode)
< 0,03 % (MC mode)

THD OF
THE INTEGRATED PHONOPREAMP

-74 dB
(MM mode)
-64 dB (MC mode)

S/N OF
THE INTEGRATED PHONOPREAMP

± 0,5
dB

RIAA
ACCURACY OF THE INTEGRATED PHONOPREAMP

47 kOhm

MAX.
OUTPUT VOLTAGE OF THE INTEGRATED PHONOPREAMP

<
10V

TOTAL
WEIGHT

Approx.
7.6kg (incl. tonearm and cartridge)

DIMENSIONS (W/D/H
in mm)

Approx.
420 x 350 x 125 (with tonearm)

WARRANTY

2
years*
* Provided the warranty card is fully completed and returned to Clearaudio
within 2 weeks of purchase.
