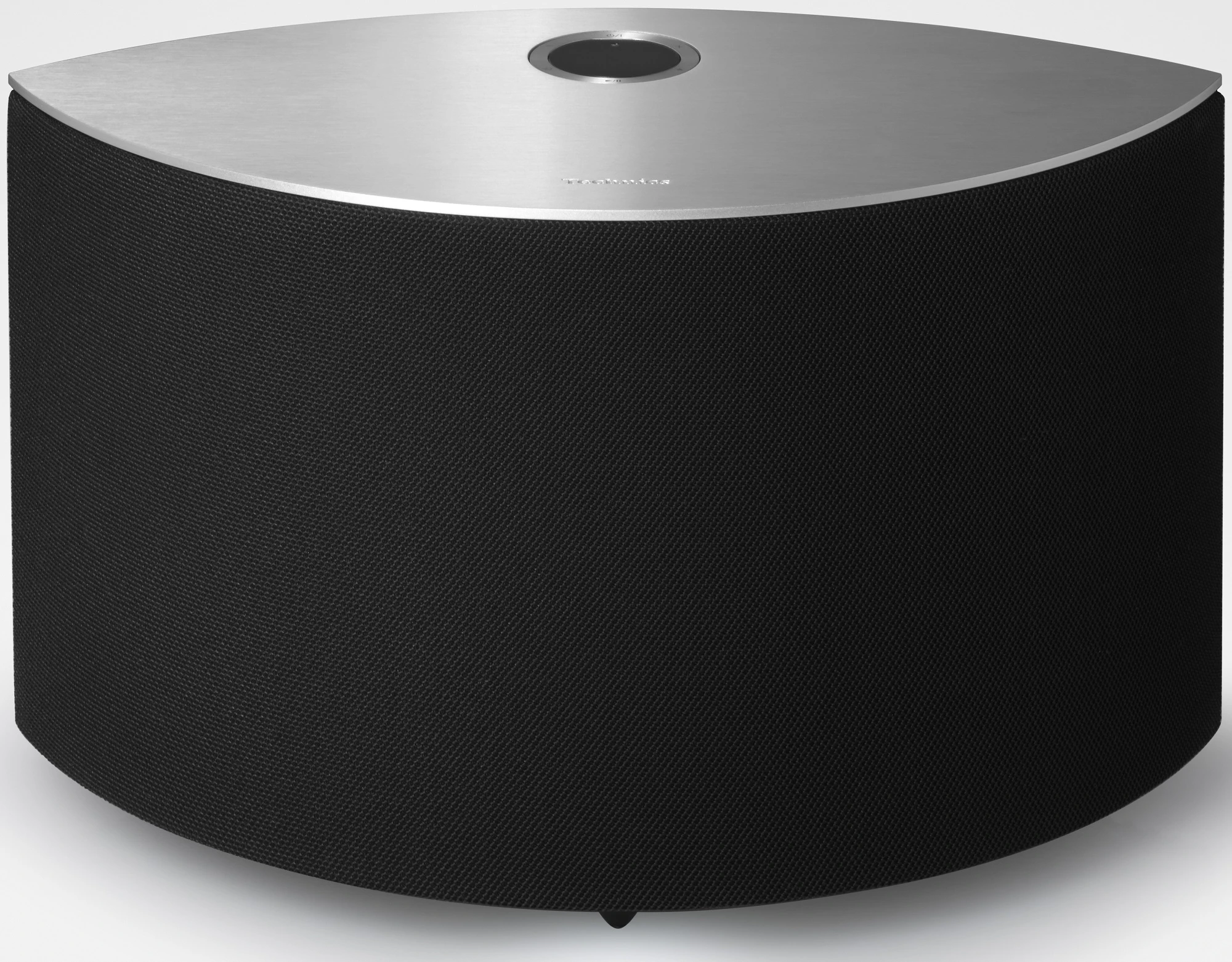

Technics SC-C50 OTTAVA F Premium Wireless Speaker System

PREMIUM WIRELESS
SPEAKER SYSTEM

SC-C50

4 JENO Engine

Four JENO Engines produce optimal performance, with superior
sound imaging through subwoofer,　midrange, and tweeter alignment. This
achieves excellent tuning and optimises sound spaces to fit　individual
listening environments using Space Tune.

LAPC

LAPC is an original Technics speaker load adaptive
technology. It measures the amp’s frequency amplitude phase characteristics
with speakers connected to the unit, and performs digital signal processing to
achieve the ideal impulse response. Characteristic parameters optimised for the
low-frequency and high-frequency speaker load characteristics of speakers are
already pre-set in the LAPC computation circuit of the unit to realise ideal
frequency and phase characteristics over the entire frequency range.

Space Tune

To provide the OTTAVA™ S SC-C50’s excellent sound in every
room and listening position, Space Tune optimises the listening environment to
the sound space.

In addition to offering 3 preset modes to suit the mounting location, a
microphone built into the main unit enables an Auto function to optimise the
sound and an iOS device can also be used to measure and compensate the
frequency response with greater precision. This allows the user to enjoy higher
sound quality regardless of where the unit is placed.

Complete Compatibility

In addition to USB playback and analogue/optical input, the
OTTAVA™ S SC-C50 supports Bluetooth, AirPlay, Chromecast built-in, Spotify,
Tidal, Deezer, Internet Radio and Network Playback, allowing comfortable
playback of a diverse range of music sources from a single unit. High
connectivity also supports multi-room, stereo pairs*, and Wi-Fi, as well as iOS
and Android control apps.

• Chromecast
  built-in

• AirPlay

• Internet
  Radio

• Spotify

• TIDAL

• Deezer

• Multi-Room

• Stereo
  Pair Compatible*

• Bluetooth

• Wi-Fi

• Network
  Playback

• USB
  Playback

• AUX-in

•
  Optical-in

• Powerful
  Bass with Subwoofer

• Space
  Tune™

• Control
  App

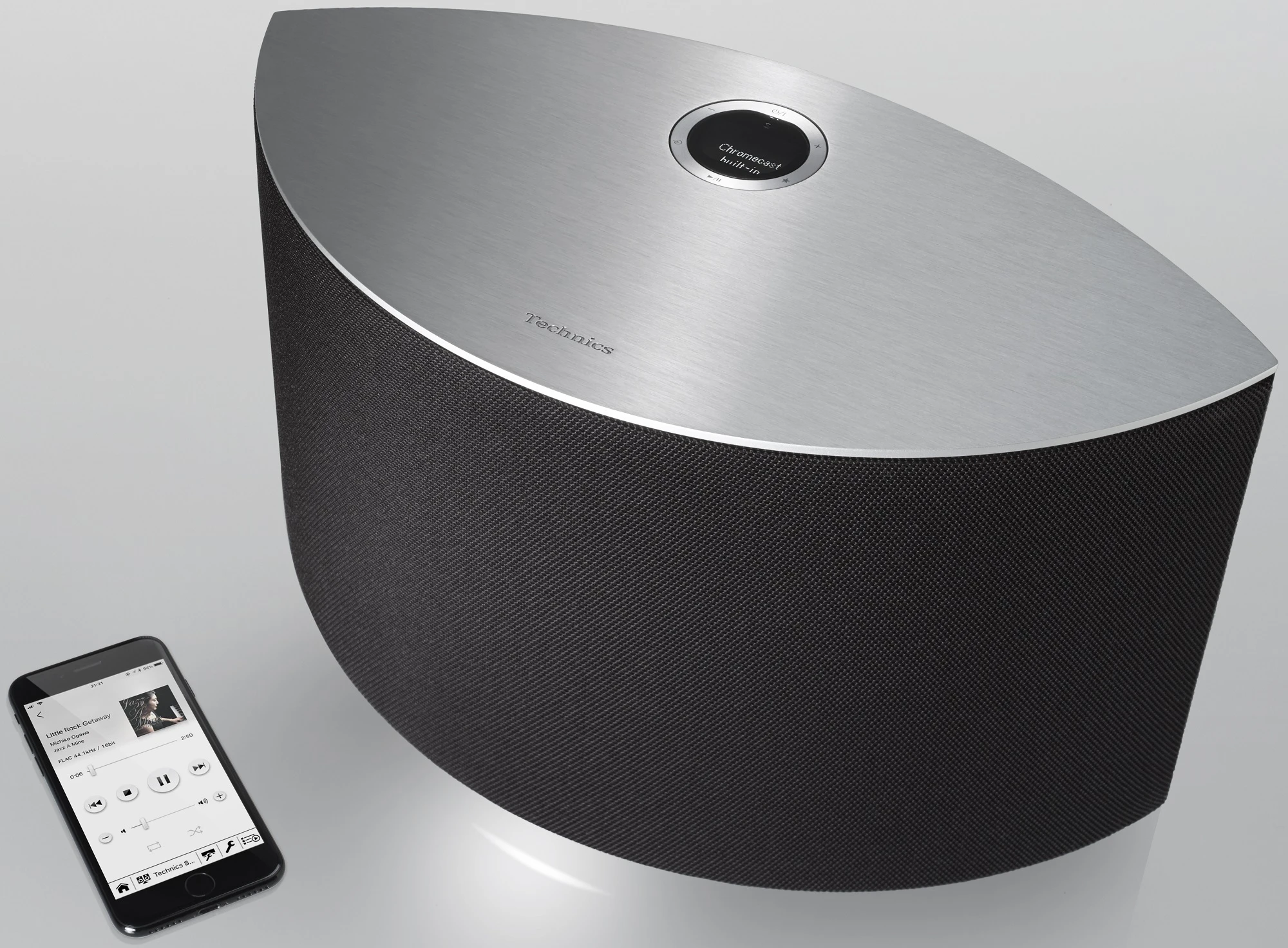

Elegant and Timeless Design

The OTTAVA™ S SC-C50 combines practical function with

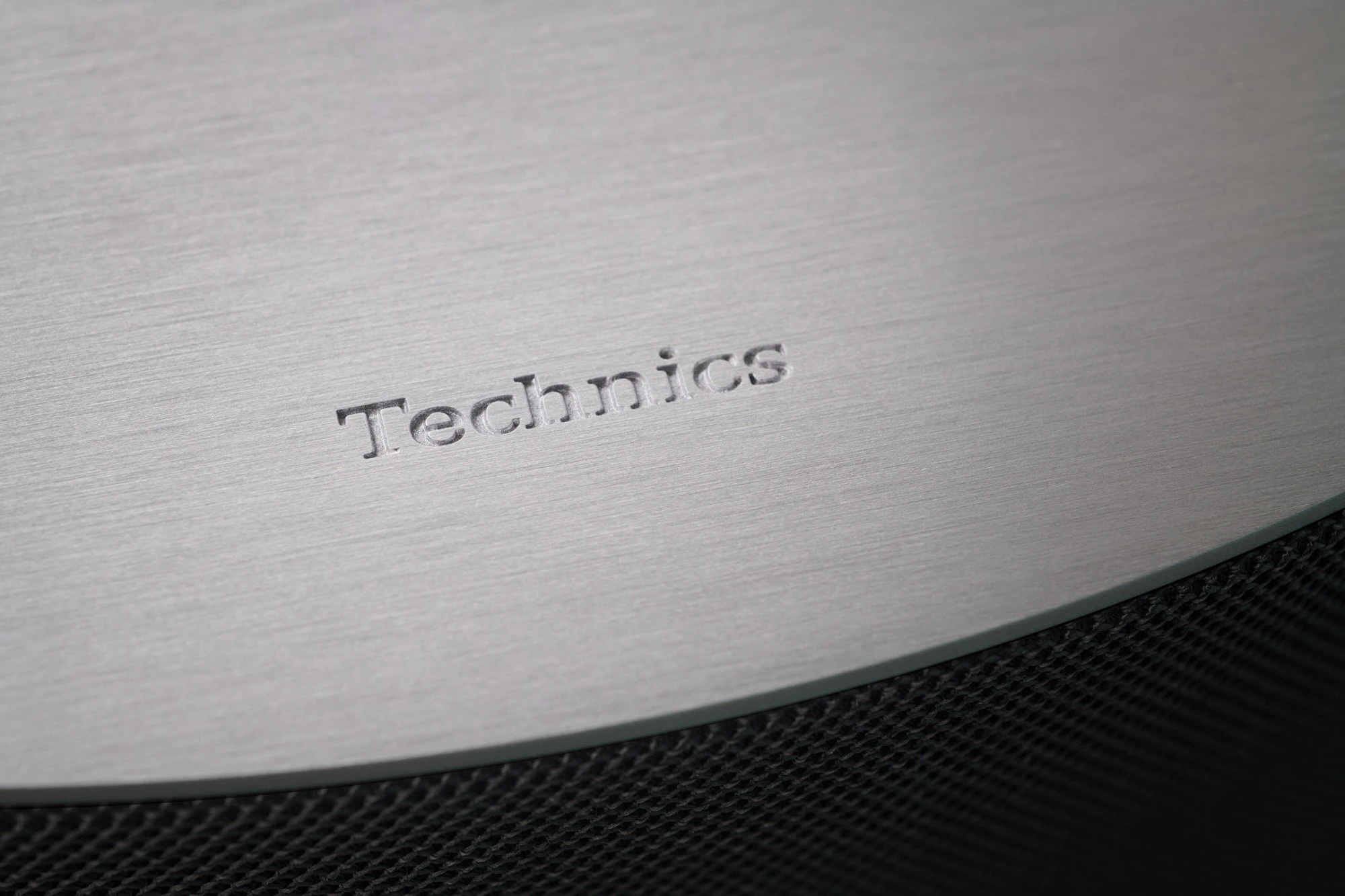

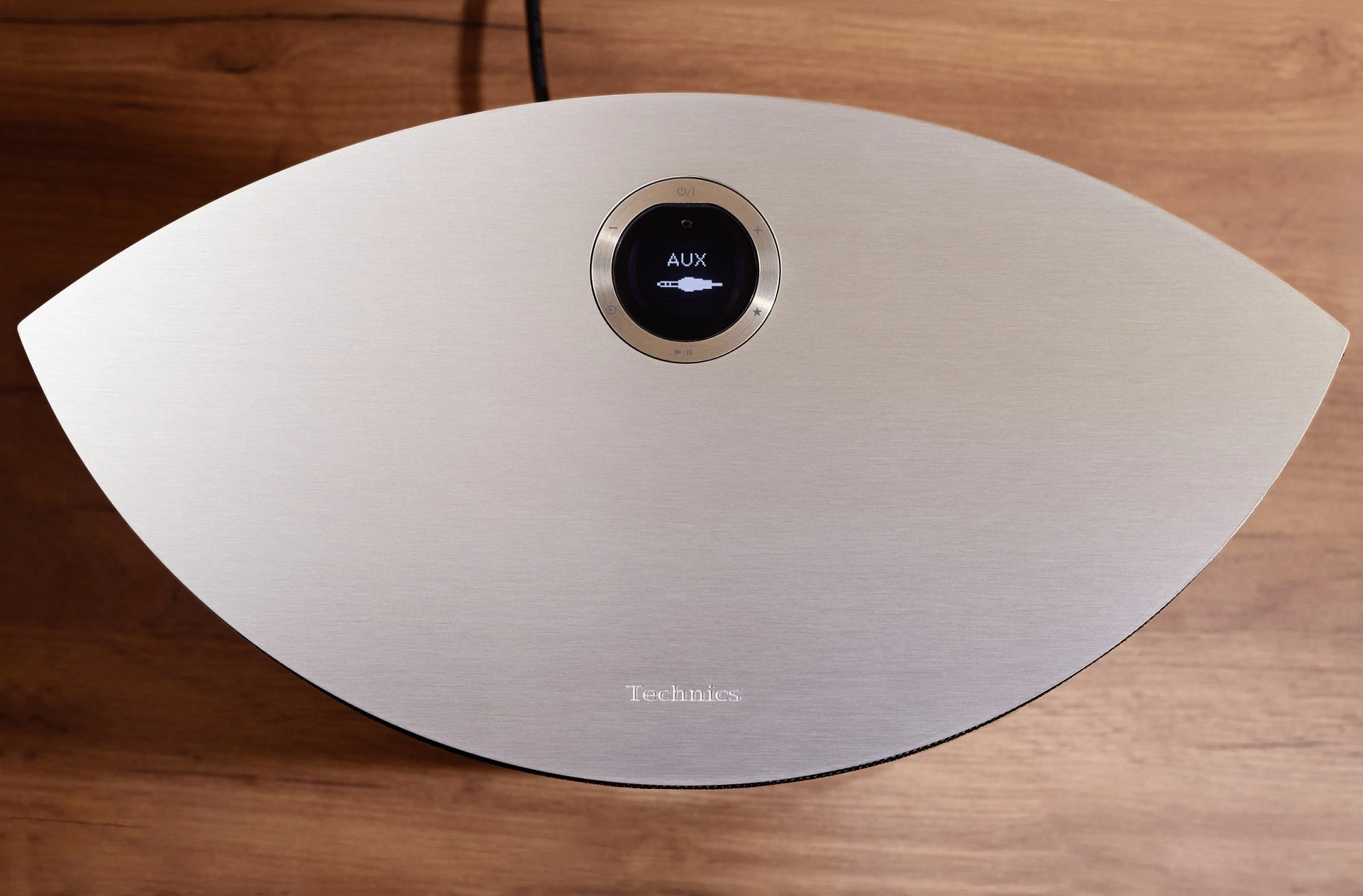

elegant design. The thick aluminum top panel increases the rigidity of the

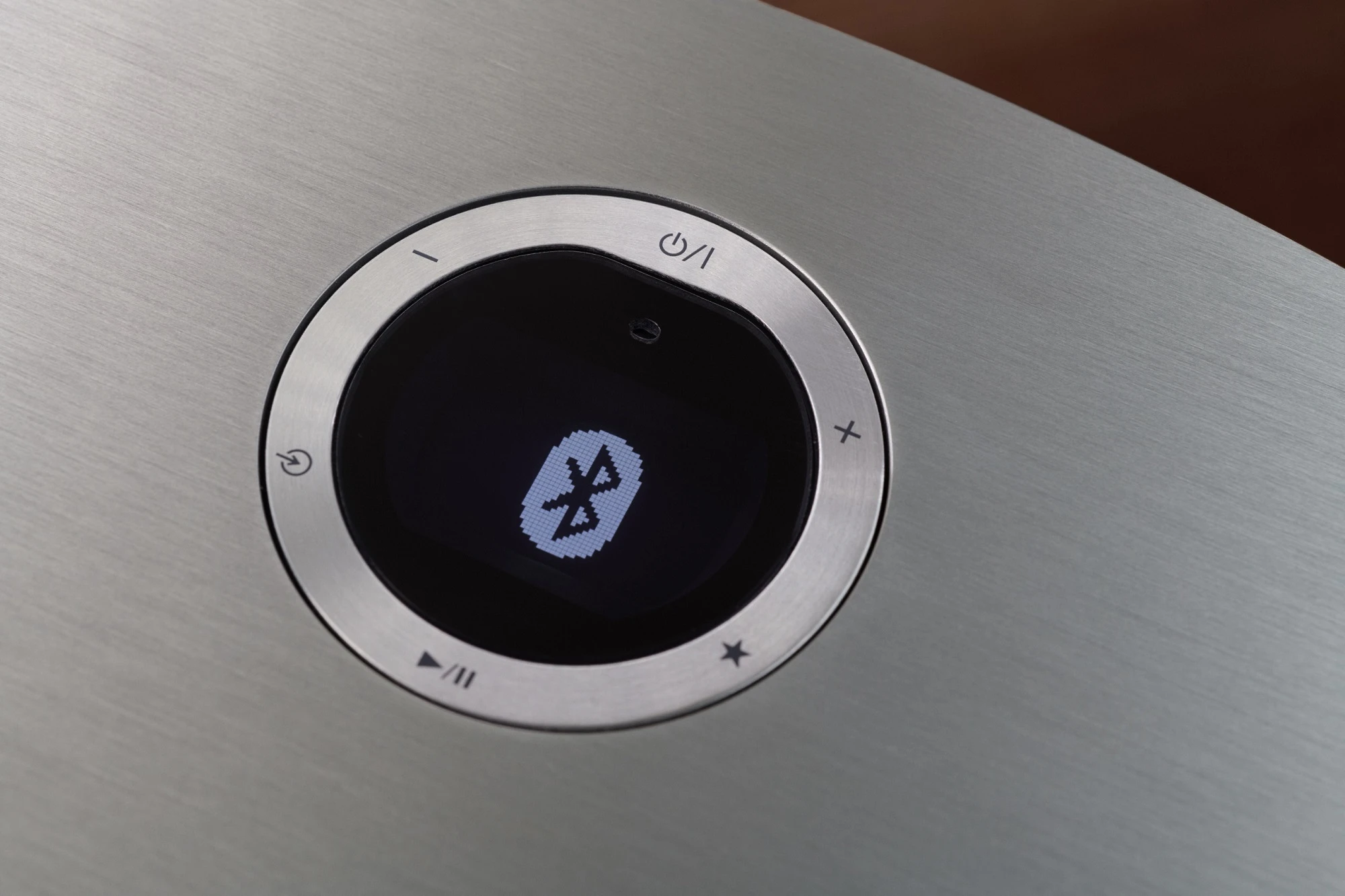

chassis, and the iconic OLED is surrounded by ring keys for easy operation.

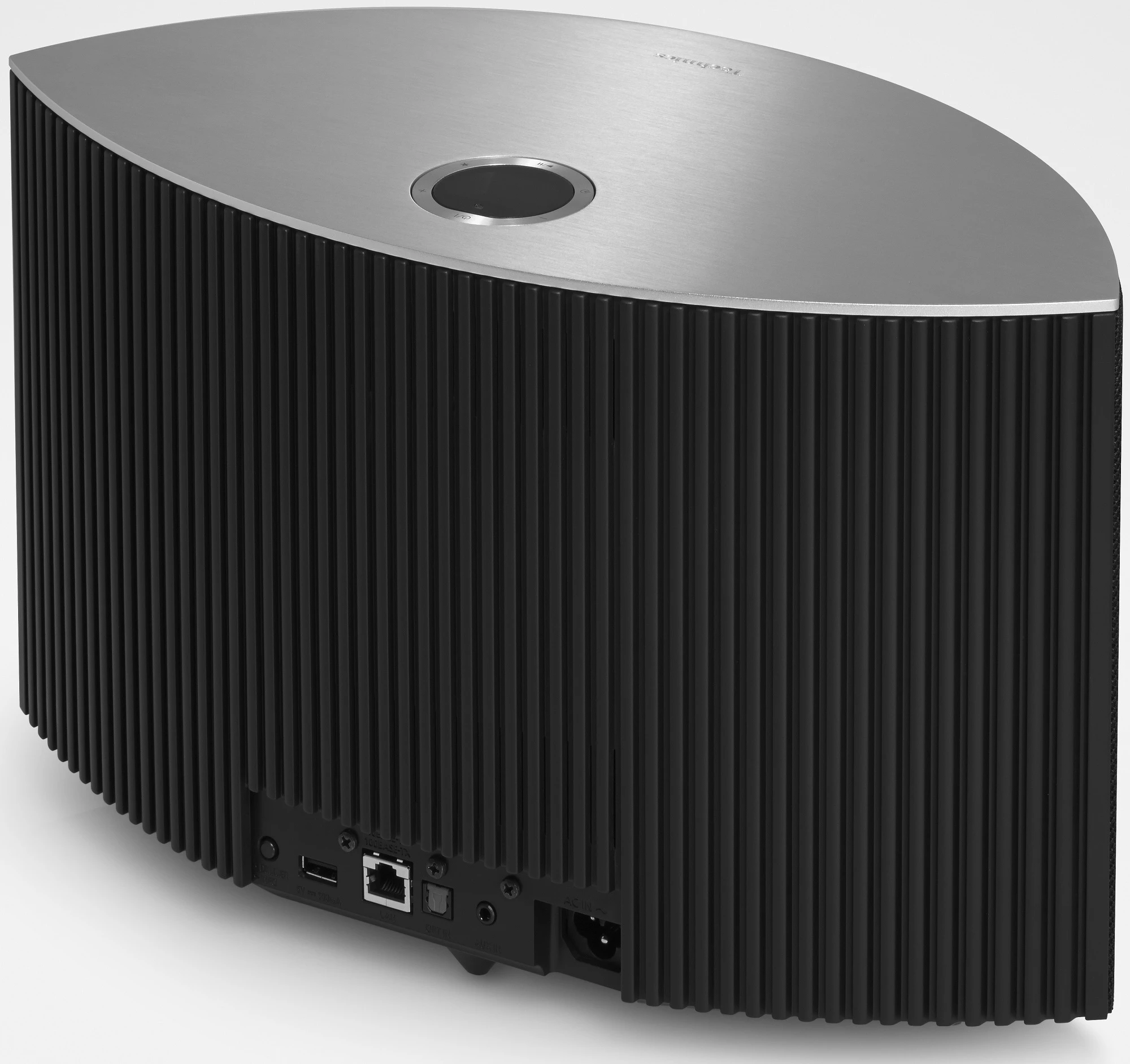

Rear louvers add further elegance while enhancing the function of an internal
heat-reducing mechanism. And the beautiful arc form, which helps to eliminate
unwanted vibration and standing wave in the chassis, incorporates acoustic
technology to achieve a wide sound stage. This lets you freely place the OTTAVA™
S SC-C50 to suit the listening position.

A Compact Body with a Wide Sound Stage

The arc-shaped body houses 3 midranges, 3 tweeters and 1
subwoofer, while left- and right-angled speakers and a centre speaker create
rich stereo imaging and crisp vocals. A “directivity-control horn” eliminates
mutual speaker interference to achieve wide directivity, and a coaxial midrange
and tweeter ensure vertical directivity with less frequency disorder from the
compact body.

Truly Powerful Architecture

Three 1.6-cm tweeters deliver high-res sound up to 50 kHz.
This combines with a front-firing 12-cm long-stroke subwoofer and a straight,
large-diameter, long port. A total of 7 units in the rigid, glass fiber
reinforced body produce powerful sound from the 3.1-channel amplifier.

Twin Power Supply Circuit System

Regular power supplies use one transformer to supply power
to the amp, and digital circuits, and so if there is any load fluctuation or if
noise occurs on a circuit, other circuits are affected, which results in
degradation of the sound quality. This power supply system includes
independently installed switch mode power supply circuitry for the amp and the
other circuits, which eliminates mutual interference, thereby reducing
degradation of sound quality caused by noise or power supply fluctuations. In
addition, a layout with dedicated transformer and amp circuits enables the
shortest possible connection to further reduce noise.

Chromecast built-in

The Chromecast function supports a wide variety of music
streaming services for easy casting from a smartphone app. And since the data
is streamed directly to the main unit, there is no degradation in sound
quality, and the user can select from a diverse range of music.

Works with the Google Assistant

If a Google Voice-activated Speaker is included in the same
network, Google Assistant can be used to operate OTTAVA™ S SC-C50 music
playback and other functions. When the user doesn’t have a smartphone app in
hand, or when hands are full, music can be easily played by voice command.

Multi-room and Stereo Pairing*

With a number of Chromecast built-in speakers, the variety
of music streaming services can be played in several rooms, or different music
can be played from room to room. *The Google Home App is required.

In addition, if you use Technics Audio Center
app and have another app compatible Technics devices, you can also enjoy other
music source in multi-room such as Bluetooth, AUX, Optical input, USB, Internet
radio and also OTTAVA™ S SC-C50 compatible streaming music. If two OTTAVA™ S
SC-C50s are arranged and set to stereo, you can enjoy highly ambient stereo
sound*.

Accurate Digital Technology
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration (w/o Calibration function)
Space Tune™

Noiseless Signal Technology
Twin Power Supply Circuit System

Emotive Acoustic Technology
Coaxial Speaker Layout
Directivity-control Horn Structure

Output Power
FTC Output power
Front speaker (L/R): 20 W + 20 W (1 kHz, T.H.D. 1.0 %, 8, 20 kHz LPF)
Front speaker (Center): 20 W (1 kHz, T.H.D. 1.0 %, 8, 20 kHz LPF)
Subwoofer : 40 W (100 Hz, T.H.D. 1.0 %, 4, 20 kHz LPF)
Front speaker (L/R): 15 W + 15 W (1 kHz, T.H.D. 1.0 %, 8, 20 kHz LPF)
Front speaker (Center): 15 W (1 kHz, T.H.D. 1.0 %, 8, 20 kHz LPF)
Subwoofer : 30 W (100 Hz, T.H.D. 1.0 %, 4, 20 kHz LPF)

Speaker Unit
Woofer : 6.5 cm (2-1/2 inch) Cone Type x 3
Tweeter: 1.6 cm (5/8 inch) Dome Type x 3
Subwoofer: 12 cm (4-3/4 inch) Cone Type

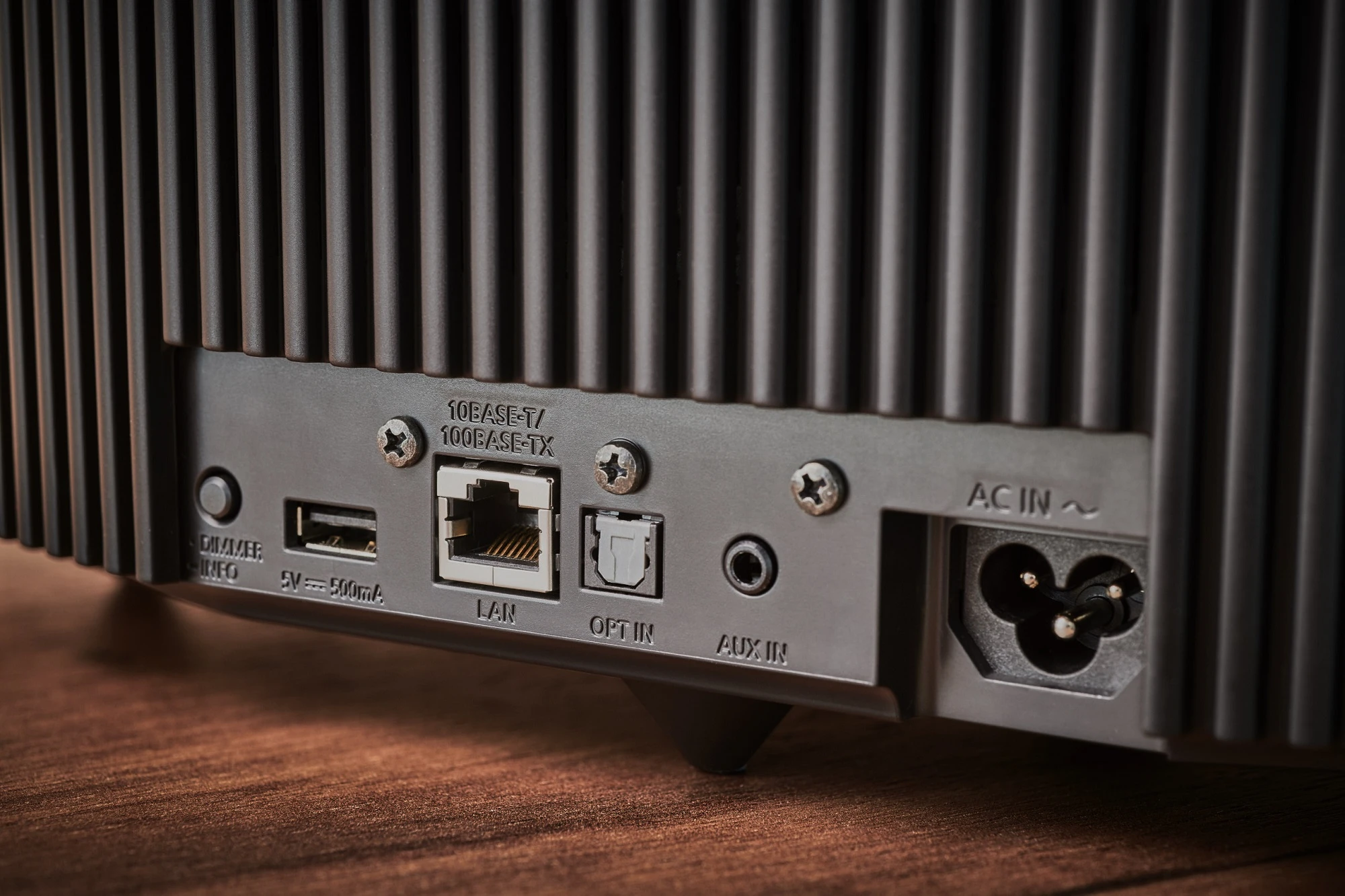

Analogue Input Terminal
AUX IN x 1 (3.5 mm) (1/8 inch)

Digital Input Terminal
Optical Digital x1, USB-A x 1

USB-A / Network Playback Support Codec
iPod/iPhone/iPad: No
WAV / AIFF: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
FLAC / ALAC: Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
DSD: Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
AAC: Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
MP3: Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface
LAN (100 Base-TX / 10 Base-T)

Wi-Fi
IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band

Chromecast built-in
Yes

Works with the Google Assistant
Yes

Multi-room
Yes

Stereo Pairing
Yes (*compatible with Technics Audio Center app) (*coming soon)

AirPlay
Yes

Bluetooth (Support codec)
Yes (AAC, SBC)

Spotify / TIDAL / DEEZER / Internet Radio
Yes

Power Supply
AC 120 V, 60 Hz

Power Consumption
42 W

Dimensions (W x H x D)
375 x 220 x 197 mm
14-49/64 x 8-21/32 x 7-3/4 inch

Weight
Approx. 5.9 kg
Approx. 13 lbs.

Accessories
AC Cord, Owner’s Manual
