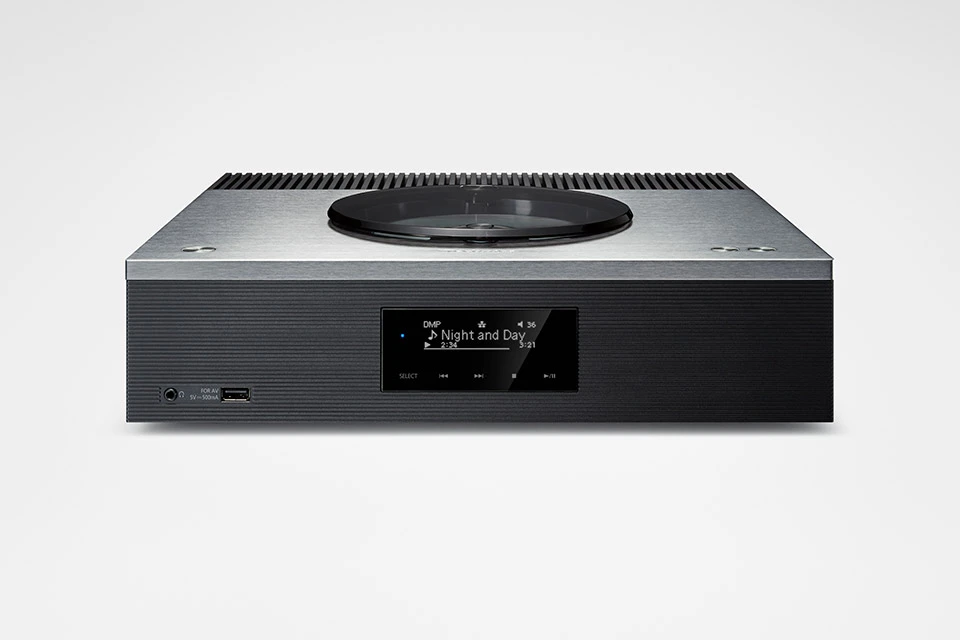

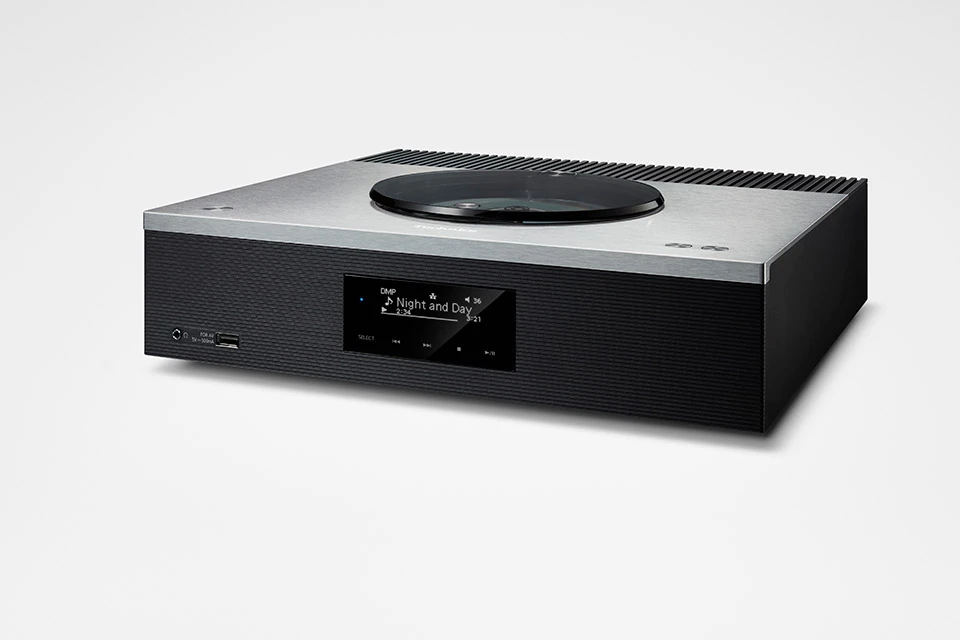

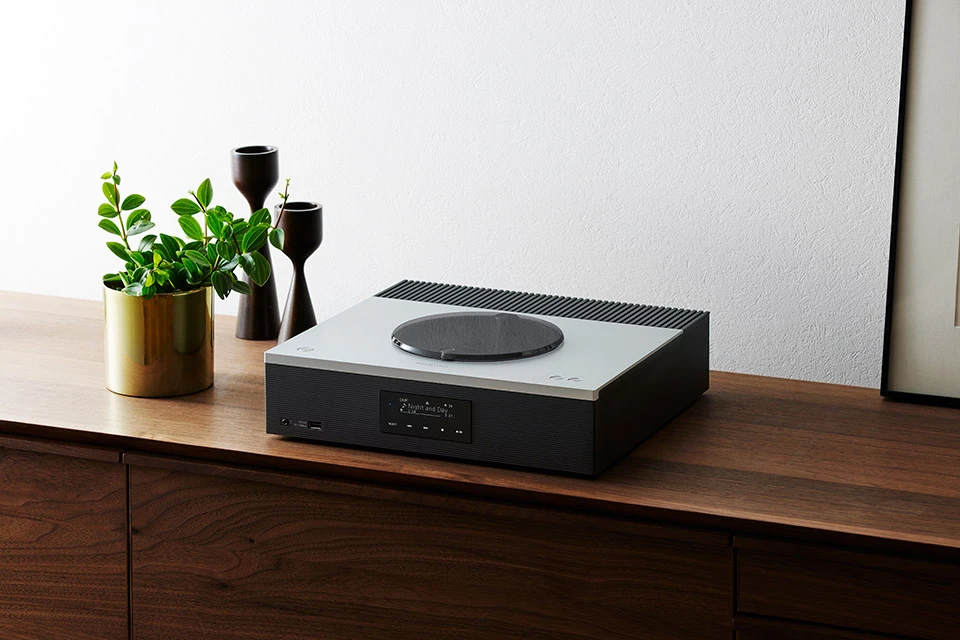

Technics SA-C600 Networking Digital Streaming Amp/CD Player

SA-C600 Premium Class Network CD Receiver

The Network CD Receiver SA-C600 brings you a wealth of music
content with a single device—everything from records, CDs, and radio to music
streaming and more besides—with a luxurious audio environment courtesy of
Technics’ superior sound engineering.

Full Digital Amp, JENO Engine (Jitter Elimination and
Noise-shaping Optimization)

The SA-C600 uses a fully digital amplifier incorporating
Technics’ renowned digital audio technology. Its digital transmission system
processes signals fully digitally in all stages from input to output. Compared
to analogue transmission, this system is less susceptible to signal degradation
caused by external noise, ensuring more precise signal transmission. Accurate
signal processing not only delivers high-resolution digital audio but also
maintains the soft texture inherent in analogue recordings.

Twin Power Supply Circuit System

The design of the power supply is extremely critical in
audio systems containing CD players, amplifiers, digital circuits and other
such components. To eliminate any adverse effects on the amplifier, the SA-C600
is equipped with a dedicated power supply for the amplifier circuits that is
independent from all other circuits, supplying power to the two independent
transformers. The wiring connections between the two dedicated transformers and
the amplifier circuits are also optimized for noise reduction.

Clean Powered Clock Generator

The power supply for the clock circuit of the JENO Engine utilizes
the same noise suppression circuit employed in Technics’ flagship turntable
model, the SL-1000R, in order to improve noise reduction. It achieves superb
sound image localization and transparent spatial expression.

Built-in Phono Equalizer compatible with MM Cartridge

The built-in phono equalizer supports MM cartridges. The
phono equalizer uses a dedicated power supply and is equipped with a power
supply circuit that is different from the control circuit for improved noise
reduction. The equalizer circuit also features a shielded construction to shut
out the effects of external noise and allows for signal amplification without
any loss of fidelity.

Space Tune™

The SA-C600 is equipped with a Space Tune function that
enables the adjustment of sound to suit the environment and location of the
unit so that anyone can enjoy superb music reproduction. By using the Technics
Audio Centre* app for tablets and smartphones or by selecting one of the four
presets on the main unit—Free, Wall, Corner and Shelf—the user can achieve the
most suitable sound reproduction for their specific acoustic environment.

The L/R Custom feature allows users to enter separate settings for each
individual speaker, adjusting for installation under different conditions and
bringing out the best sound quality in any environment.

* Available for iOS devices only

Supports a Wide Range of Music Content

Compatible with a variety of music sources

The SA-C600 supports a variety of music sources including
CD, radio, phono input, optical digital input (including TVs), coaxial digital
input, USB input, and more.

Enjoy high-quality sound wirelessly

Compatible with MQA®

Designed for Sophisticated Music Listening Experience

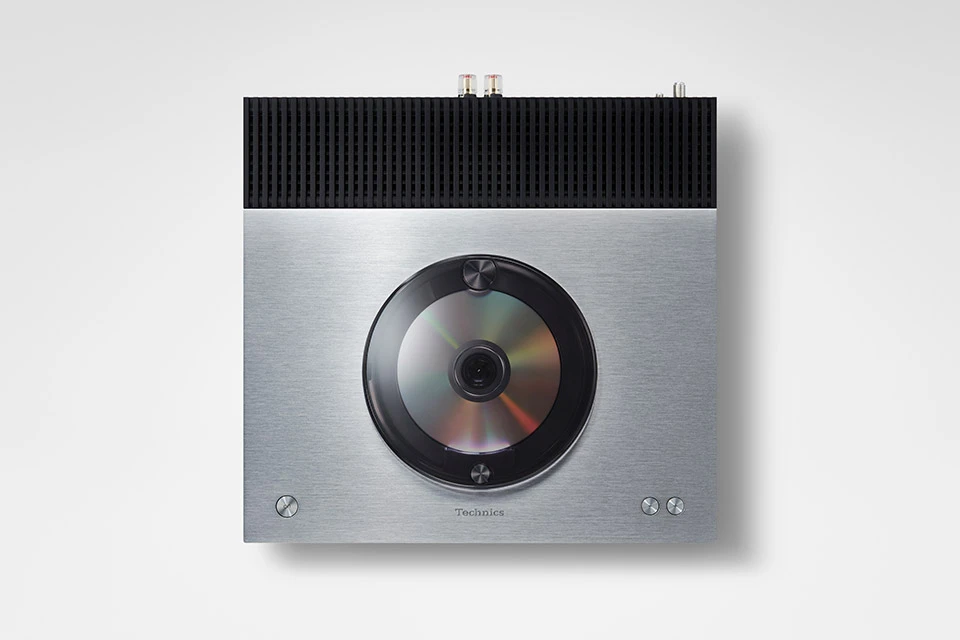

To ensure consistency of appearance, the design of the
SA-C600 incorporates elements from Technics turntables such as color, texture
and dimensions, improving the aesthetics of the system. The aluminum top panel
sports a built-in CD player with a manually operated lid for ease of use and
functional beauty.

Output Power

• 60 W
  + 60 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)

FTC Output Power

• 40W +
  40W ( 1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF )

Load Impedance

• 4Ω-16Ω

Frequency Response

• PHONO
  (MM)

• 20Hz
  – 20kHz ( RIAA DEVIATION ±1dB, 8Ω )

• LINE

• 20Hz
  – 80kHz ( -3dB, 8Ω )

• DIGITAL

• 20Hz
  – 90kHz ( -3dB, 8Ω )

Input Sensitivity / Input Impedance

• PHONO
  (MM)

• 2.5
  mV / 47 kΩ

• LINE

• 200
  mV / 22 kΩ

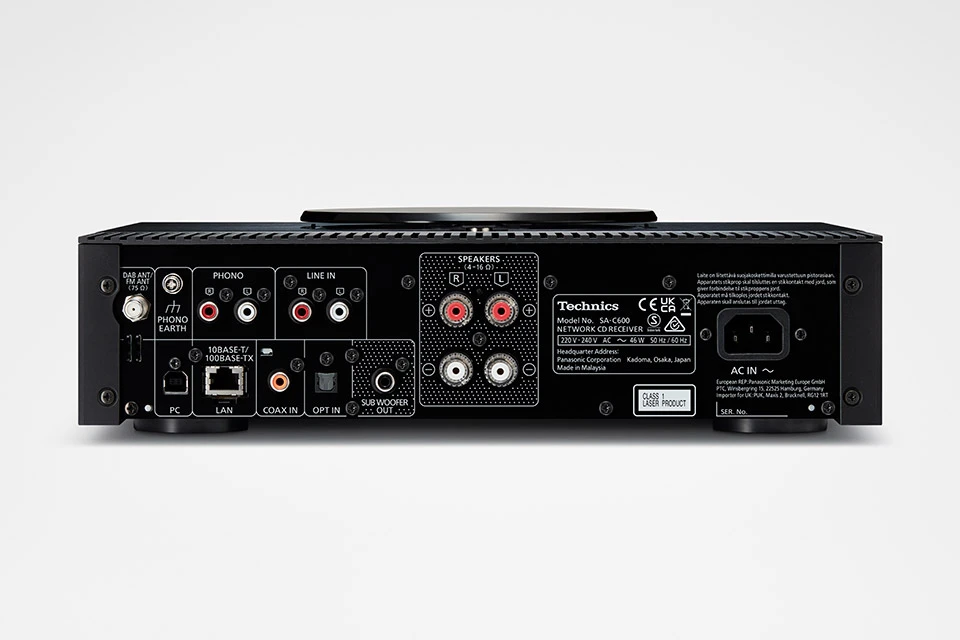

Analogue Input Terminal

• LINE x
  1

•
  PHONO (MM) x1

Digital Input Terminal

• Optical
  digital x1

•
  Coaxial digital x1

•
  USB-A x1

•
  USB-B x1 (PC)

Analogue Output Terminal

• Sub
  Woofer x1

Headphone Output

• Yes,
  Stereo Φ3.5 mm

Disc Compatibility

• Audio
  CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)

USB-A

• iPod/iPhone/iPad

• No

• Support
  Codec

• WAV

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

• FLAC

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

• DSD

• Yes
  (2.8 MHz, 5.6 MHz, 11.2 MHz)

• AIFF

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

• ALAC

• Yes(32,
  44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

• AAC

• Yes
  (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)

• MP3

• Yes
  (32, 44.1, 48 kHz / 16-320 kbps)

PC(USB-B)

• USB
  Audio Class Specification

• USB
  2.0 high-speed

•
  USB Audio Class 2.0, Asynchronous mode

• Support
  Codec

• LPCM
  Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

•
  DSD Yes (2.8 MHz, 5.6 MHz)

• DSD
  contol mode

• ASIO
  Native mode, DoP mode

MQA Decorder

• Yes

LAN(DMR)

• WAV

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

• FLAC

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

• DSD

• Yes
  (2.8 MHz, 5.6 MHz, 11.2 MHz)

• AIFF

• Yes
  (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)

• ALAC

• Yes(32,
  44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)

• AAC

• Yes
  (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)

• MP3

• Yes
  (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface

• LAN
  (100 Base-TX/10 Base-T)

Wi-Fi

• IEEE
  802.11 a/b/g/n/ac

•
  2.4 GHz / 5 GHz Band

Chromecast built-in

• Yes

AirPlay 2

• Yes

Bluetooth® (Support codec)

• Yes
  (AAC, SBC)

Tuner

• DAB/DAB+/FM

Power Supply

• AC
  120 V, 60 Hz

Power Consumption

• 46W

Dimensions (W x H x D)

• 13-25/64
  x 3-45/64 x 13-7/16 inch

Weight

• Approx.
  10.6 lbs

Accessories

• AC Cord, DAB Indoor Antenna, Remote Control,
  Batteries for Remote Control, Owner’s Manual
