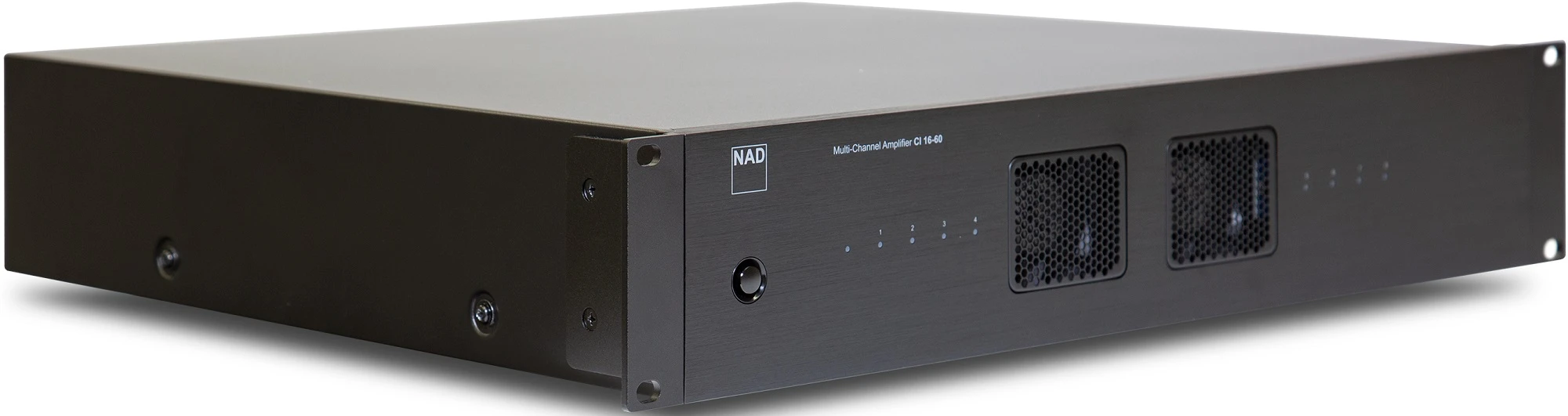

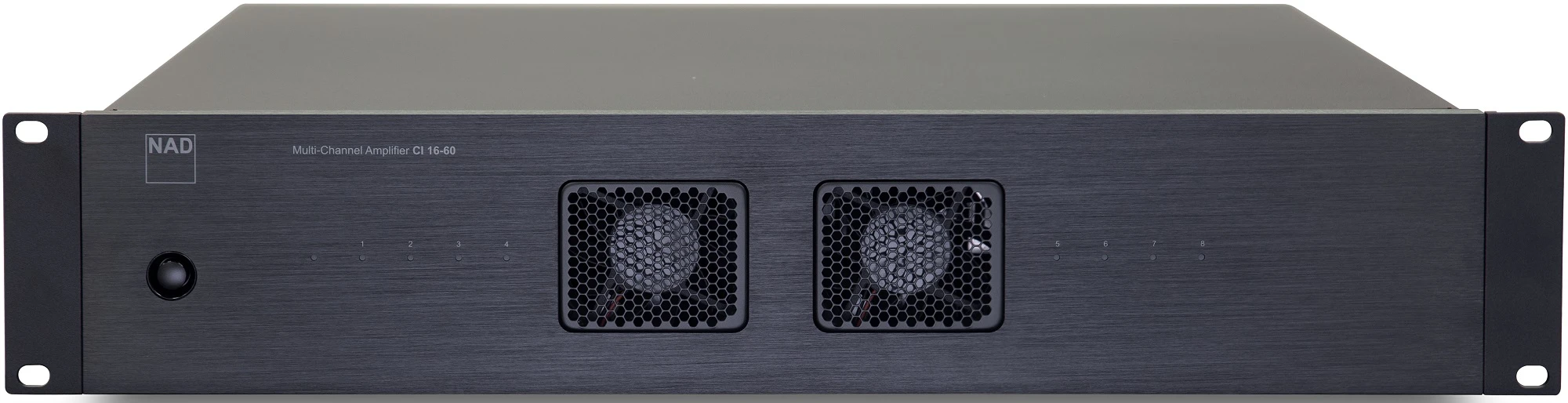

NAD CI 16-60 DSP 16-Channel Amplifier

Like every NAD product, legendary high performance is at the
heart of this 16 channel amplifier. Promising reliability, stability and a
variety of installer-friendly features, this amplifier will redefine the way
you view high performance distributed audio systems.

Smart CI Solution with Audiophile Performance for
Distributed Audio

Highly versatile and robust, the CI 16-60 is built for the
demands of professional installations. This amplifier delivers a conservative
60 watts per channel at 8 ohms into all of its 16 channels with each pair of
channels bridgeable to 140 watts per channel if more power is desired. The
hybrid digital amplifier platform delivers stable and efficient power with high
current capability all in a compact 2U rack space.

The CI 16-60 DSP uses a customized version of the proven
Hypex UcD output stage to deliver great load invariant power with extremely low
distortion and noise in the audible range. Every detail of this design has been
carefully executed to bring out the best possible performance. Meticulously
designed and built to deal with the demands of the custom installation market,
the CI 16-60 can effortlessly handle long cable runs and difficult speaker
loads.

NAD is keenly aware that reliability is paramount for a
professional installer so all models will be based on tried and true
amplification platforms delivering stable and reliable performance. The CI
16-60 amplifier is stable at 4 ohm impedance. A variety of power on methods are
available as well as an Eco mode setting for minimal power consumption.

Key Features of the NAD CI 16-60 DSP Amplifier

• 16
  Channels X 60 Watts @ 8 Ohms

• Any
  consecutive channel pair bridgeable to 2 x 140 Watts @ 8 ohm

• Renowned
  NAD sonic signature

• 2U
  Rack Height- saves valuable rack space

• Platform
  accessed through IP control

• Custom
  web app manages DSP calibration, Input assignments and more

• Effectively
  handles long cable runs and difficult speaker loads

• Dual
  global Inputs/Outputs

• 5W
  Standby Mode, 3W Network Standby

• 12V
  Trigger In; IR In/Out

• Multiple
  power-up options and Eco Mode

• Universal
  AC Power Supply

GENERAL

• Continuous
  output power into 8 ohms

• 60 W
  (all channels driven, 1kHz 0.05% THD

• 65 W
  (two channels driven, 1kHz 0.05% THD

• into
  4 ohms

• 65 W
  (all channels driven, 1kHz 0.05% THD

• 105 W
  (two channels driven, 1kHz 0.05% THD

• Continuous
  output power into 8 ohms at Bridged mode

• 140 W
  (all channels driven, 1kHz 0.05% THD

• 240 W
  (two channels driven, 1kHz 0.05% THD

• THD
  (1 W to 50 W, 8 ohms and 4 ohms)

• 0.05 %
  (20 Hz – 3 kHz)

• 0.2 %
  (3kHz – 20 kHz)

• Signal-to-Noise
  Ratio

• 80 dB
  (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

• Clipping
  power (all channels driven)

• 60 W
  (1 kHz 8 ohms 1 % THD)

• 80 W
  (1 kHz 4 ohms 1 % THD)

• Clipping
  power into 8 ohms at Bridged mode

• 150 W
  (1 kHz 1 % THD – all channels driven)

• 250 W
  (1 kHz 1 % THD – two channels driven)

• IHF
  Dynamic Power (all channels driven)

• 8
  ohms: 65 W

• 4
  ohms: 125 W

• IHF
  Dynamic Power (two channels driven)

• 8
  ohms: 70 W

• 4 ohms:
  125 W

• IHF
  dynamic power (Bridged mode, all channels driven)

• 8
  ohms: 270 W

• IHF
  Dynamic Power (two channels driven)

• 8
  ohms: 280 W

• Peak
  output current

• 15 A
  (1 ohm, 1 ms)

• Damping
  factor

• 110
  (20 Hz to 1 kHz 8 ohms)

• Frequency
  response

• ±1dB
  (20 Hz – 20 kHz)

• Channel
  separation

• 60 dB
  (1 kHz)

• 55 dB
  (10 kHz)

• Maximum
  undistorted input level

• 2900
  mV

• Input
  sensitivity (for 50 W in 8 ohms, maximum volume)

• 760 mV

• Input
  impedance

• 20
  kohms//220pF

• Analog
  input audio sense threshold (one channel with signal)

• 3 ±
  0.5 mVrms (ref. 100 Hz – 10 kHz)

• Trigger
  IN level

• 3 – 30
  Vdc

• Standby
  power

• 0.5W

DIMENSION AND WEIGHT

• Gross
  dimensions (W x H x D)*

• 483x100x435mm

• 19
  1/16 x 3 15/16 x 17 3/16 inches

• Net
  Weight

• 10.3
  kg (22.7 lbs)

• Shipping
  Weight

• 12.8
  kg (28.2 lbs)

* Gross dimension includes extended rear panel
terminals and excludes installed feet
