Lyngdorf MP-60 Ultimate Performance Surround Sound Processor

MP-60 SURROUND SOUND PROCESSOR

THE ULTIMATE PERFORMANCE

The MP-60 surround sound processor from Lyngdorf Audio is
built for the demanding audiophile, who requires the ultimate performance in
immersive formats as well as stereo.

Together with the Steinway Lyngdorf version, Model P300, the
MP-60 is developed at the group headquarter in Skive, Denmark and it is
equipped with all the advanced technologies for which Lyngdorf Audio is known,
including the renowned room correction system, RoomPerfect™ and the unsurpassed
qualities in digital signal processing.

STATE-OF-THE-ART HDMI PROCESSING

The MP-60 features decoding and balanced outputs for 16
audio channels, with an extraordinary ease in installation and daily use. With
8 HDMI inputs and 3 outputs (one being HDBaseT) this new masterpiece from
Lyngdorf Audio now supports the HDMI 2.1 features eARC, Dynamic Lip-Sync and
QMS (Quick Media Switching) as well as the latest decoding and post-processing
formats.

Now with full 16 channel decoding the MP-60 offers full
support of the immersive surround formats DOLBY ATMOS®, DTS:X® PRO and
AURO-3D®, and it delivers a surround sound experience that outmatches anything
in and above its class. Allowing a video throughput of up to 18 Gbps the MP-60
now supports the full 4K 60Hz video stream including the passing of HDR or
Dolby Vision information.

eARC will allow for a full Dolby Atmos audio bitstream being
‘returned’ to the processor from the television allowing for full audio quality
from the TV’s built-in media players. The MP-60 of course also supports the
pass-through of the new HDR format for streaming video: HLG (Hybrid Log Gamma).

MEDIA PLAYER

The MP-60 features a built-in media player, which connects
to Spotify and Roon as well as internet radio. Through a cabled network or USB
connector, you can access your library of music and enjoy it in stereo or as
up-mixed to a surround sound format.

FLEXIBILITY IN INSTALLATION

With its visual speaker layout, the setup menu will enable
everybody to have the optimal processor setup for their speaker system, and
with the features like the HDBaseT™ connector, you can easily connect to a
projector in the ceiling with uncompressed full HD digital video, audio.
3 optional modules allow for digital connection to DCI
(Digital Cinema Initiatives) movie servers, an AES67 compliant audio system or
digitally to active loudspeakers or amplifiers with digital input.

Multiple control options will allow you to integrate the
MP-60 with control systems, IR sensors, and triggers, whereas the IP-control or
the RF remote will offer a direct control of all features.

TECHNICAL DETAILS

Decoding:

Dolby Atmos®, Dolby Digital, EX & Plus, Dolby TrueHD, DTS:X PRO, DTS ES
Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Res. Audio, DTS-HD
Master Audio, AURO-3D®, 16 native channels

Post procession options:

Dolby Surround, AURO-MATIC®, DTS VirtualL:X

Audio inputs:

8 x HDMI™ (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x
S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs
(≤96Hz/24bit), 1 x USB audio input (≤384kHz/32bit), 1 x microphone input (XLR)
for RoomPerfect™

Audio outputs:

16 x XLR analog outputs (5.0 Vrms), 1 x SPDIF coax digital ZONE output (Fix
96kHz/24bit)

Audio specifications:

Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion:
0.005% max from 20 to 20,000 Hz

EQ:

RoomPerfect™, Subwoofer level assistant, 32 x adjustable voicings holding ≤8
shelving, high/low pass or parametric filters with adjustable gain and Q

Media player:

Internet radio (vTuner), Airplay, Spotify Connect, Roon Endpoint (awaiting
certification), DLNA Support of FAT32 based media storage

Video inputs:

8 x HDMI™ (2.0b – HDCP 2.2), accepts 3D 30Hz, 4K 60Hz (18 Gbps), accepts HDR,
Dolby Vision and HLG

Video outputs:

2 x HDMI™ (HDCP 2.2), 1 x HDBaseT™

Video scaling:

Upscaling of all video to 4K ultra high definition, No downscaling of 4K video

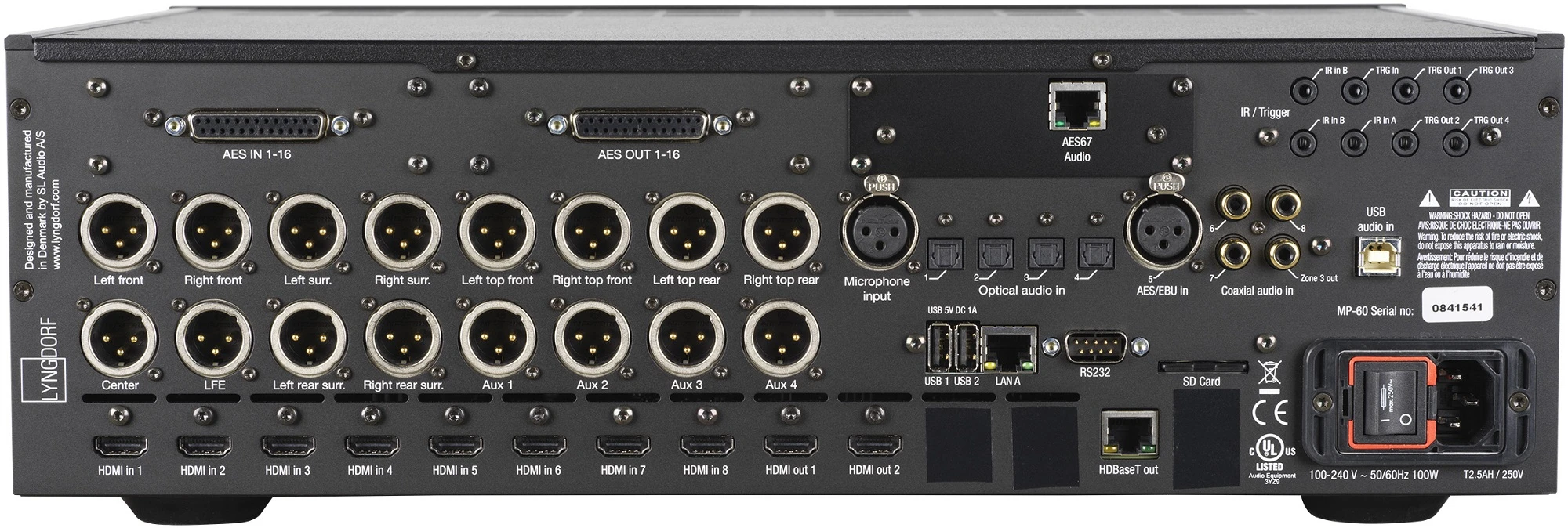

Control interfaces:

1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of
the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet
LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for
system software and settings)

Accessories included:

RoomPerfect™ microphone, Microphone stand, Microphone cable, RF remote control

Optional module:

16 channel DCI-compliant digital AES/EBU input for movie servers
(≤192kHz/32bit) / DB25), 16 channel digital AES/EBU speaker output

channels (Fix 97,565kHz/24bit / DB25), 16 channel AES67 digital AES/EBU speaker
output channels (Fix 48kHz/24bit / RJ45)

Placement options:

Rack mount or freestanding

Dimensions (H x W x D):

147 x 450 x 370 mm / 5.8 x 17.7 x 14.6 inches

Weight:

9 kg / 19 lb
