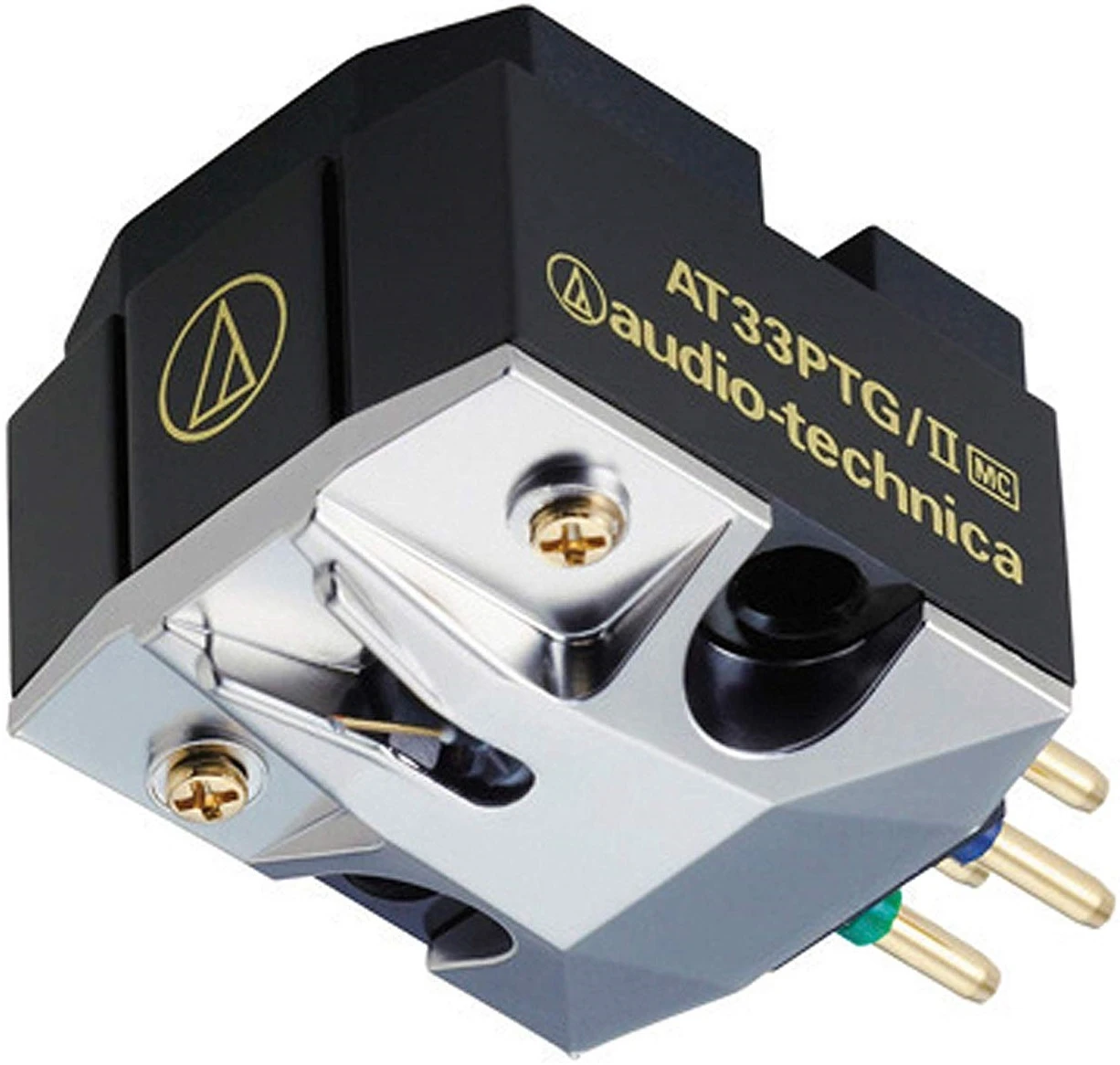

Audio-Technica AT33PTG/2 Dual Moving Coil MC Cartridge

The AT33PTG/II dual moving coil cartridge features a
Microlinear stylus that, with its small curvature radius, delivers
low-distortion, high-range performance, even when playing the inner
circumference of a record. The Microlinear stylus, which has an average life
span of around 1,000 hours, is mounted on a nude tapered boron cantilever with
a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel
separation and are affixed within a strong, lightweight mold made of hard resin
to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and
a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure
Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

• Moving
  coil cartridge with Microlinear stylus delivers exquisite, full-range
  audio reproduction

• Advanced
  tapered boron cantilever and reduced coil weight improve the audio
  quality, particularly in the higher frequencies

• Neodymium
  magnet and permendur yoke dramatically enhance the magnetic energy

• PCOCC
  (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

• High-separation,
  wide-response dual moving coil

• Strong,
  rigid housing limits unnecessary vibration

• Precision-cast
  hard aluminum alloy body enhances rigidity and the signal-to-noise ratio

Frequency Response	15-50,000 Hz
Channel Separation	30 dB (1 kHz)
Vertical Tracking Angle	23°
Vertical Tracking Force	1.8-2.2 g (2.0 g standard)
Recommended Load Impedance	More than 100 ohms (when head amplifier is connected)
Coil Impedance	10 ohms (1 kHz)
DC Resistance	10 ohms
Coil Inductance	22 µH (1 kHz)
Output	0.3 mV (at 1 kHz, 5 cm/sec)
Channel Balance	0.5 dB (1 kHz)
Stylus Shape	Microlinear
Stylus Type	Nude square shank
Stylus Curvature Radius	2.2 x 0.12 mil
Cantilever	Gold-plated nude tapered boron
Static Compliance	40 x 10-6 cm/dyne
Dynamic Compliance	10 x 10-6 cm/dyne (100 Hz)
Mount	Half-inch
Weight	6.9 g (0.24 oz)
Dimensions	16.0 mm (0.63″) H × 16.6 mm (0.65″) W × 26.5 mm (1.04″) D
Accessories Included	Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set

Note: Moving coil cartridges require receivers
or preamps with compatible inputs; their stylus assemblies are not
field-replaceable.
