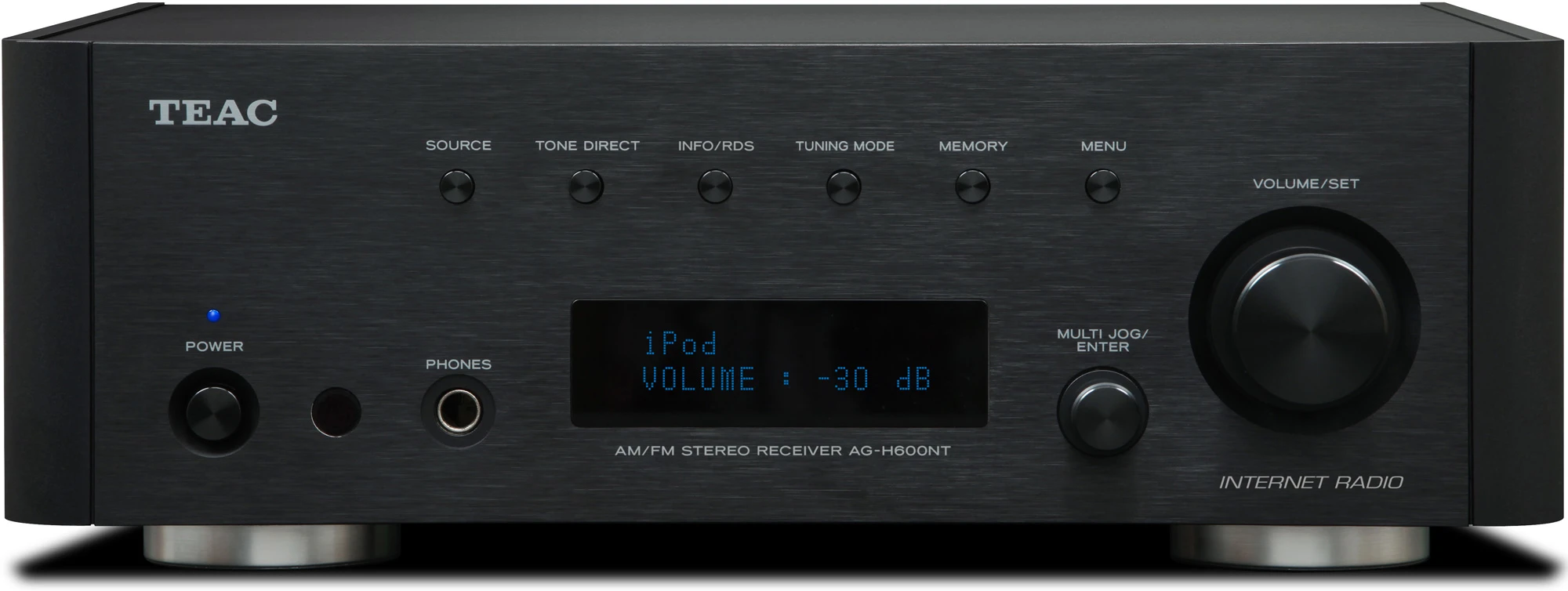

TEAC AG-H600NT AM/FM Stereo, CD, Internet Receiver

The TEAC AG-H600NT receiver joins old and new technologies
into an audio system that can play any format, with the sound quality to
present every note. It incorporates analog inputs – including phono, CD and AUX
– as well as digital sources like a digital input for your iPod and
streaming playback from internet radio stations. An AM/FM tuner is also
provided with 60 presets. The iPhone/iPod input, when connected with the
optional DS-20 docking station, grabs the digital signal from your portable
device, bypassing the analog electronics for the best sound quality possible.

The AG-H600NT connects to over 10,000 internet radio
stations through the vTuner website. It connects via your network through
either a wired or wireless connection, and recognizes MP3, WMA or RealAudio
streaming files. A wireless remote control commands not only the receiver but the
rest of your TEAC components as well.

The amplifier section on the AG-H600NT was carefully built
to reproduce every detail of your music. A large toroidal power transformer
delivers ample current to the heart of the amplifier, and a Schottky barrier
diode in the rectifier increases efficiency and offers extraordinarily fast
reaction to sudden transients. The result is 75W per channel of clean
amplification for detailed playback.

For the highest quality playback of audio formats old and
new, the TEAC AG-H600NT is the obvious choice.

• Output
  Power: 75W + 75W (8 ohms, 1kHz, 0.5%THD)

•
  90W + 90W (4 ohms, 1kHz, JEITA)

• Total
  Harmonic Distortion: 0.05% (8 ohms, 1kHz, 40W)

• Signal-to-Noise
  Ratio: 70dB (Phono); 100dB (CD, AUX); 110dB (Tone Direct)

• Input
  Sensitivity: 2.8mV, 47k ohms (Phono-MM); 180mV, 47k ohms (CD, AUX)

• Frequency
  Response: 10Hz – 65,000Hz (8 ohms, -3dB, 1W)

• Tone
  Control: Bass ±12dB (at 100Hz); Mid ±12dB (at 1kHz); Treble ±12dB (at
  10kHz)

• Tuner:
  AM (522kHz – 1620kHz); FM (87.50MHz – 108.00MHz, 50kHz steps);
  Internet-Radio (MP3, WMA, RealAudio)

• Number
  of Presets: 30 AM, 30 FM

• Network:
  Ethernet (10Base-T, RJ-45); Wireless LAN (IEEE802.11b/g); Security (WEP,
  WPA, WPA2)

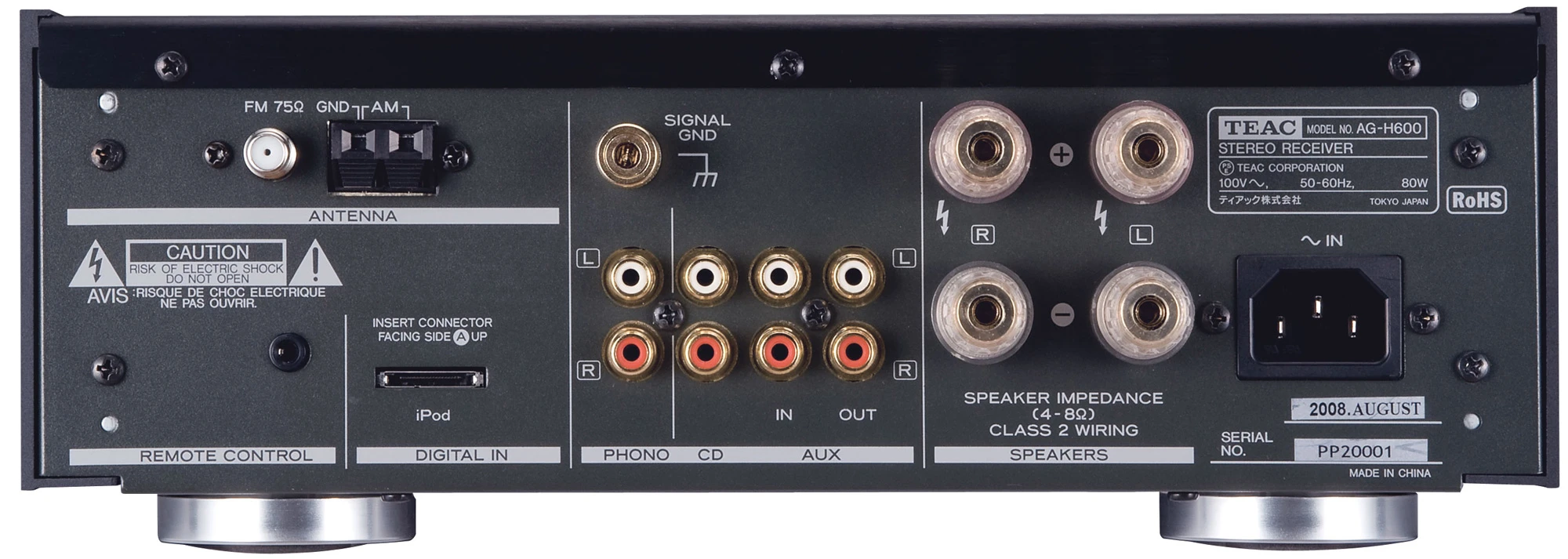

• Audio
  Input: 4 (Phono, CD, AUX, iPod)

• Audio
  Output: 1 (Line)

• Speaker
  Terminals: Binding-post x 2 pairs

• Headphone:
  6.3mm Stereo

• Display:
  Fluorescent Dot-matrix

• Display
  Dimmer: Yes (Normal, Dimmed, Off)

• Power
  Requirements: 120V, 60Hz (US), 230V, 50Hz (EUR/Asia)

• Consumption
  Power: 50W (Standby: 0.7W)

• Dimensions
  (W x H x D): 11.4″ x 4″ x 12.6″ (290 x 102 x 320mm)

• Weight:
  15 lbs. / 6.8kg

• Accessories:
  System Remote Control, AAA Batteries x 2, AM Loop Antenna, FM Lead-type
  Antenna, Wireless LAN Antenna, Power Cord
