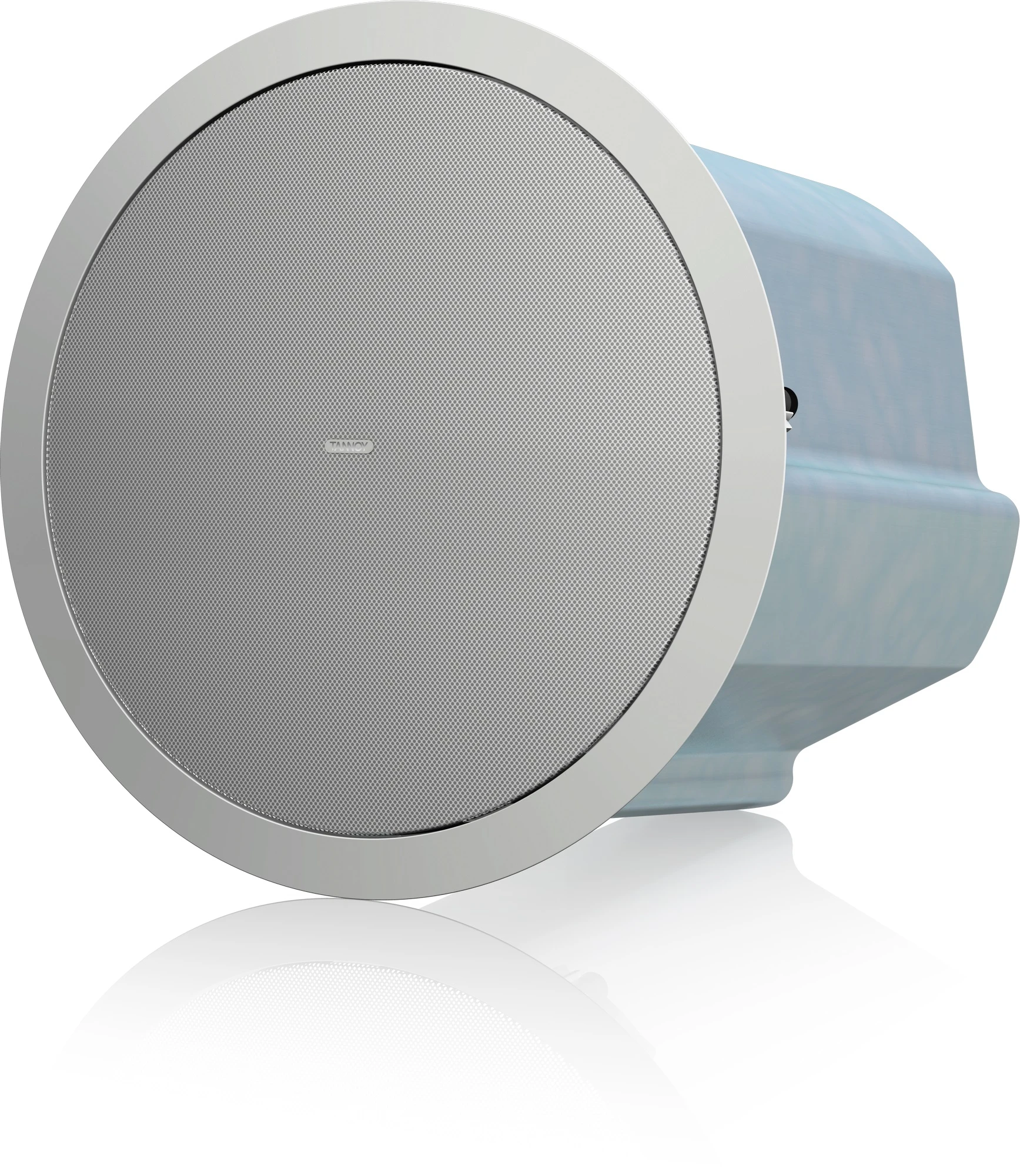

Tannoy CMS 801 SUB BM 8″ Compact Ceiling Mounted Sub

8″ Compact Ceiling Mounted Subwoofer for
Installation Applications (Blind Mount)

• Compact
  ceiling subwoofer for installation applications

• 100
  Watts continuous, 400 Watts peak power

• 8″
  long excursion driver for greater low frequency response

• Blind

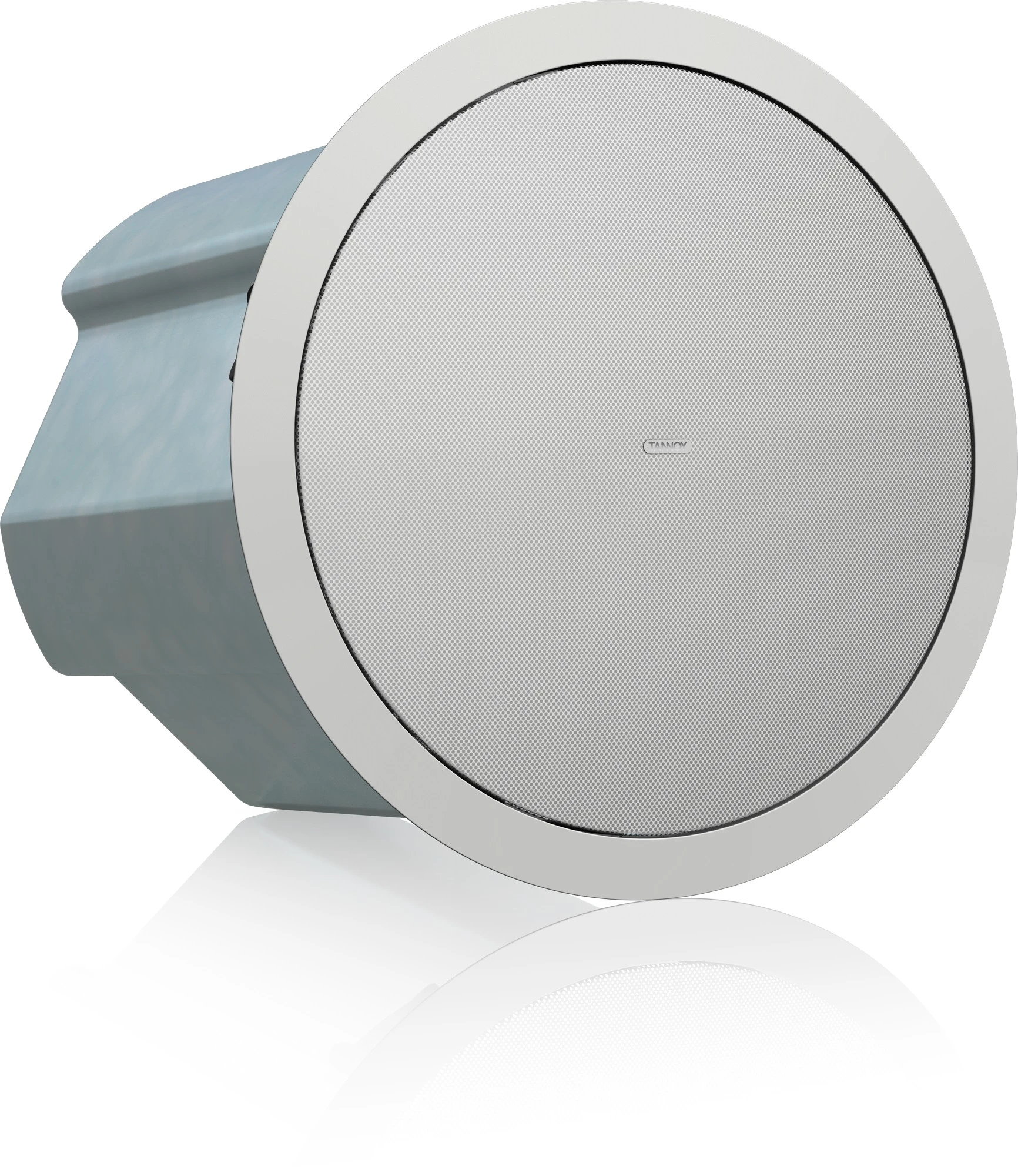

  mount version supplied with acoustically enhanced zinc plated steel back
  can

• Integrated
  single unit construction for ease of installation

• Multiple
  transformer taps for 70 V and 100 V line systems or 6 Ohm direct input

• UL
  1480 certified for general signaling systems

• UL
  2043 certified for air-handling spaces

• Low
  insertion loss 60 W line transformer with easily accessible tapping switch

• Semi
  matt white finish fits unobtrusively in any environment

• Powder

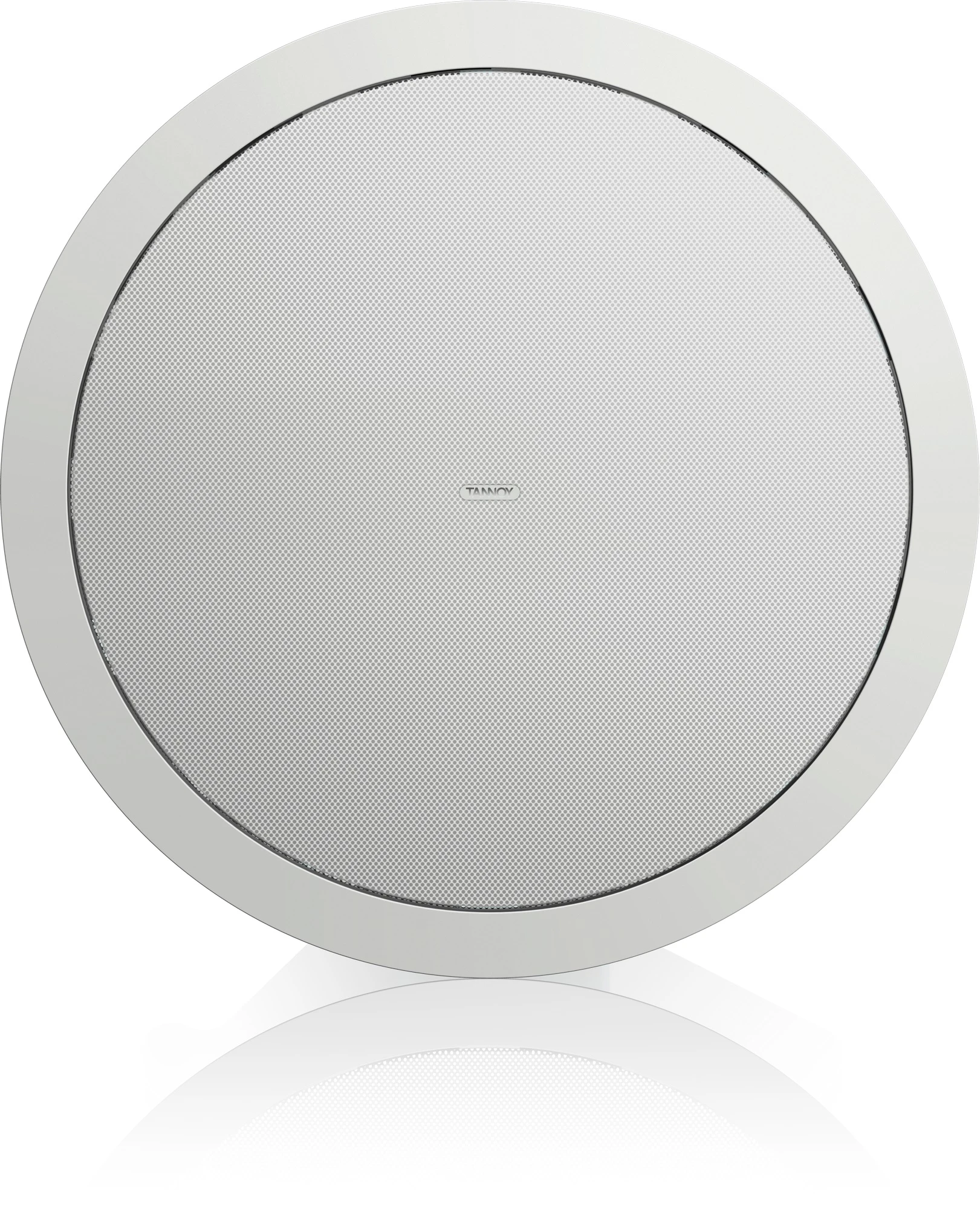

  coated UV resistant perforated steel mesh grille with dust protection

• Removable
  grille for custom painting

• Self-aligning
  5-way clamp mounting system

• Mounting
  C-ring and ceiling tile rails included

• 10-Year
  Warranty Program*

• Designed
  and engineered in the U.K.

CMS 801 SUB BM

The CMS 801 SUB BM is a compact 400- Watt subwoofer that
complements the entire range of CMS ceiling monitor systems.

Thanks to a powerful 8″ long excursion LF driver, the UL certified CMS 801
SUB BM delivers dynamic low frequency extension and premium grade audio for
music and speech reinforcement applications.

Optimized for Installation

Specifically designed with a self-aligning 5 way clamp
system for fast, simple and cost effective installation, CMS 801 SUB BM

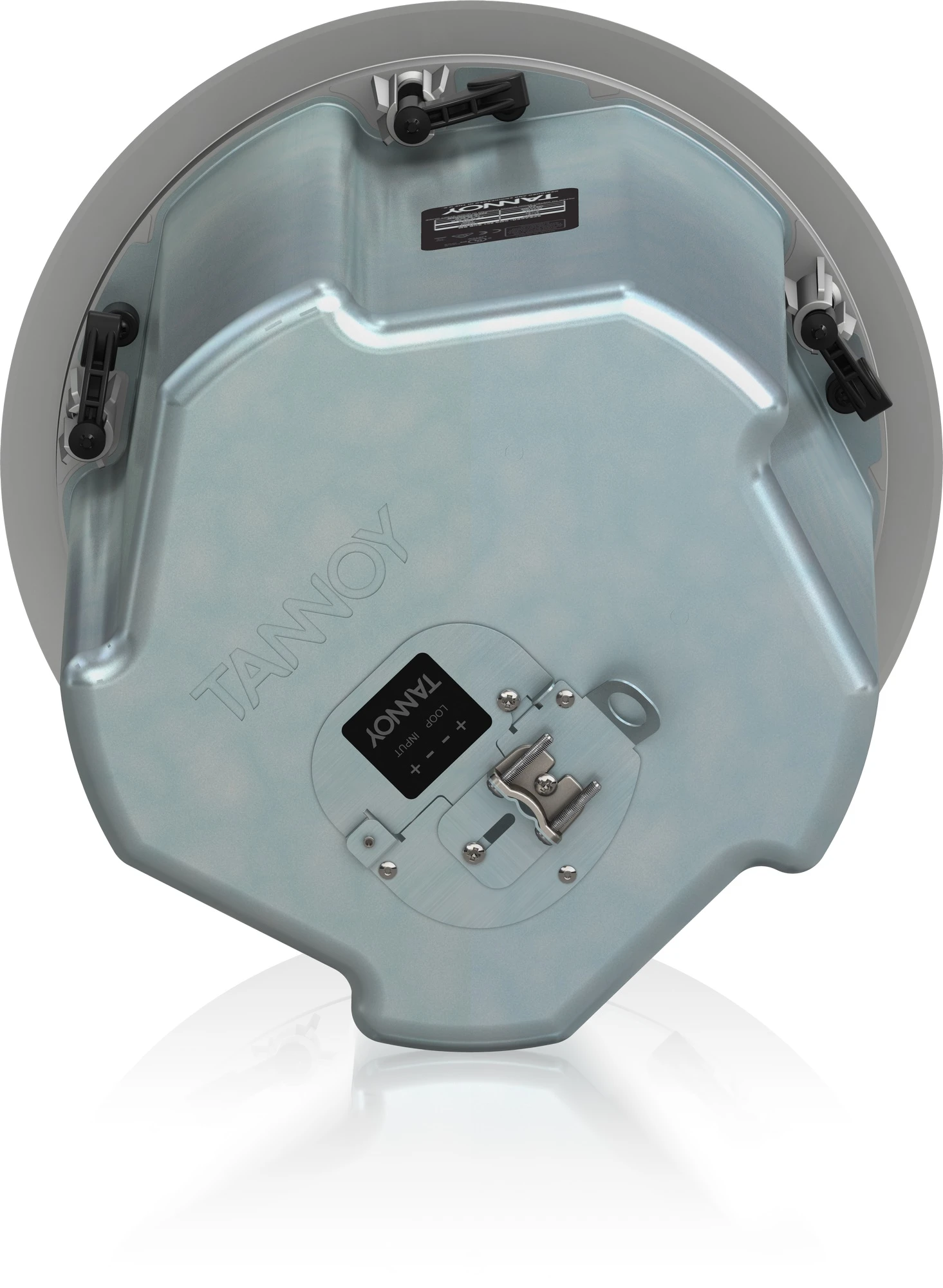

features an acoustically enhanced zinc plated steel back can with removable
locking screw terminal connector and loop-thru functionality.

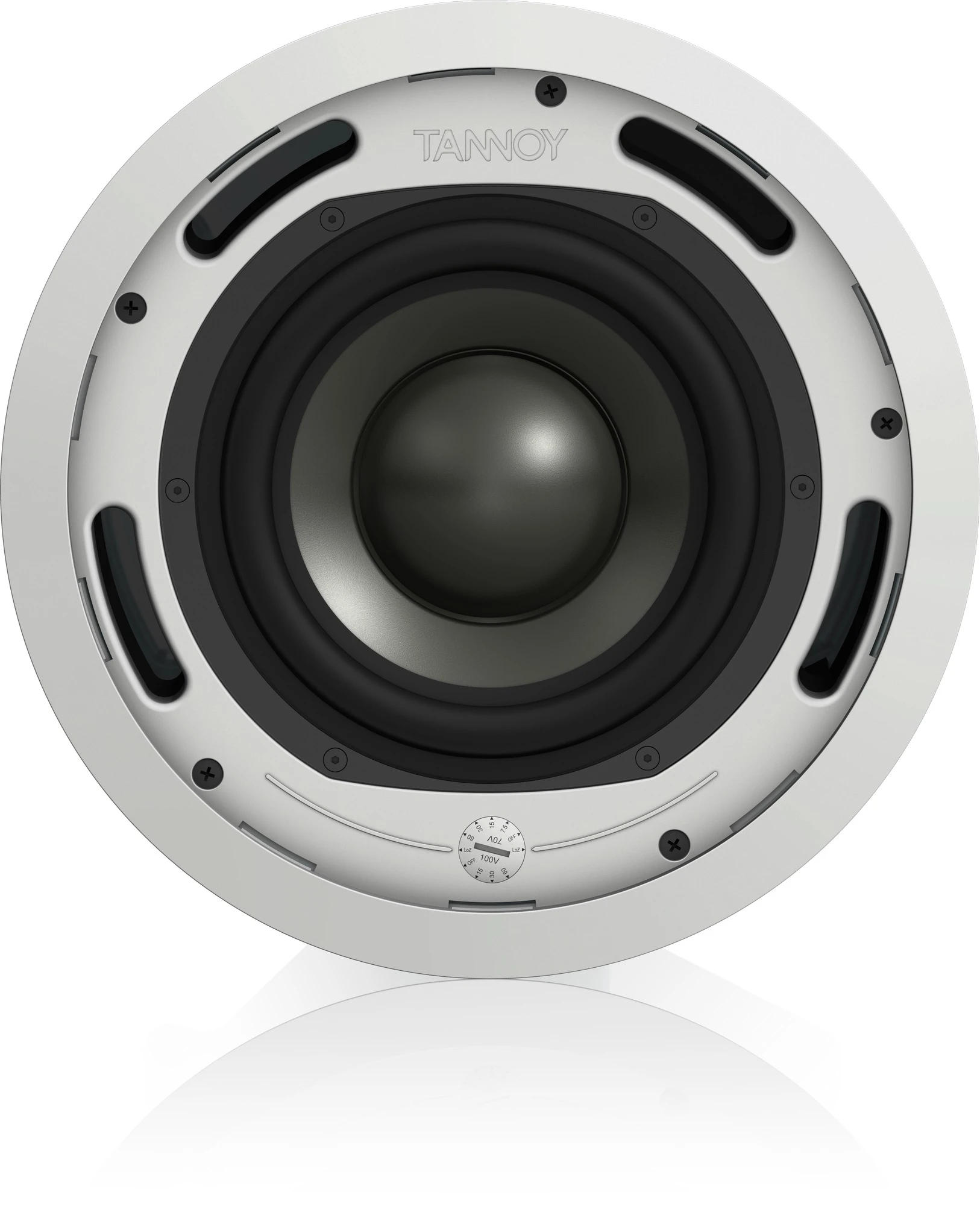

A low-insertion loss 60 W transformer with convenient front panel tap
switching, paintable powder coated steel mesh grille with dust protection, two
tile support rails and one C-ring are all included. A plaster (mud) ring is
available separately.

LAB GRUPPEN Ready

The CMS 801 SUB BM is finished in semi matt white and optimized
for use with LAB GRUPPEN amplifiers.

System

Frequency response (-3 dB) (1)	58 Hz – 160 Hz
Frequency range (-10 dB) (1)	42 Hz – 300 Hz
System sensitivity (1 W @ 1 m) (2)	92 dB (1 W = 2.45 V for 8 Ohms)
Rated maximum SPL (2)	112 dB (average) 118 dB (peak)
With THP60	110 dB (average)
Power handling (3)
Average	100 W
Programme	200 W
Peak	400 W
Recommended amplifier power	200 W @ 8 Ohms
Nominal impedance	8 Ohms
Transformer taps (via front rotary switch)
70 V	60 W/30 W/15 W/7.5 W/OFF & Low impedance operation
100 V	80 W/30 W/15 W/OFF & Low impedance operation
Crossover	Integral 2nd order passive, 160 Hz

Transducers

Low frequency / High frequency	1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone
Enclosure
Back can	Zinc plated steel
Baffle	Reflex loaded UL 94V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety Features	Safety ring located at rear of enclosure for load bearing safety bondClamping
Design	Security toggle clamp
Backcan Options
Blind Mount (BM)	Complete with fixed back can
Cable Entry Options	Cable clamp & squeeze connector for conduit up to 22mm
Conduit Knockouts	3 Sets of horizontal positions 19 / 22 / 28 mm (0.75 / 0.87 / 1.1″)
Connectors	Removable locking connector with screw terminals with “loop through” facility
Safety agency ratings (pending)	UL-1480, UL-2043, CE
BM hole cutout diameter	295 mm (11.61″)

Dimensions

Bezel diameter	325 mm (12.80″)
Front of ceiling to rear of back can (BM)	310.5 mm (12.22″)
Front of ceiling to top of safety loop (BM)	327.8 mm (12.90″)
Net Weight (ea)
CMS 801 BM	8.4 kg (18.48 lbs)
Included Accessories	C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories	Plaster (Mud) Ring

Ordering
Information

Model name	CMS 801 SUB BM
Baffle / Grille Colour	WHITE
Packed Quantity	2
Packed weight kg (lbs)	20.2 (44.44)
