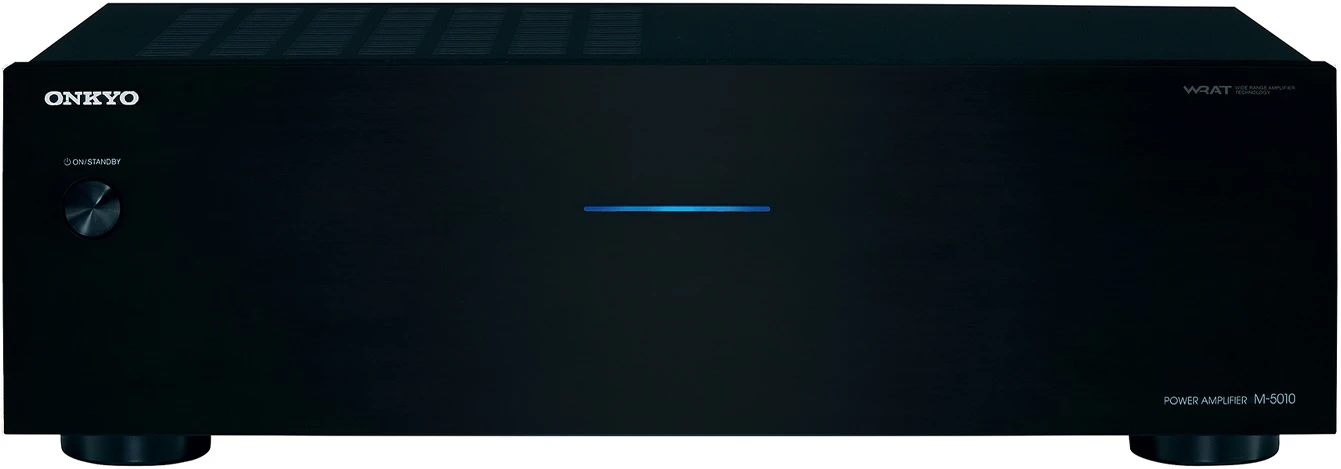

Onkyo M-5010 Stereo Power Amplifier

Add the M-5010 2-channel amplifier to expand your home
theater’s multi-room capabilities or to enable the 11-channel surround sound
feature offered on selected Onkyo A/V receivers. Boasting our acclaimed Wide
Range Amplifier Technology (WRAT) with three-stage inverted Darlington
Circuitry, this two-channel power amp is perfect for handling the fast-changing
dynamics of movie soundtracks while retaining enough sensitivity to deliver all
the nuances of your favorite music.

• Low
  negative feedback circuits for reduced noise, expanded frequency response,
  and maximum efficiency

• Highly
  durable amp construction built around a thick anti-resonant metal chassis
  for extra vibration resistance

• All-analog
  circuitry for an ultra-clear sound

• High-output
  power supply for signal purity

• Configure
  your setup with selectable audio, 12-volt triggers, and rear side level
  adjustments

• Banana
  plug-compatible speaker posts included for easy integration

Amplifier

THD	4 Ω: 65 W/Channel (1 kHz, 0.08%, 2 channels driven, FTC) 8 Ω: 75 W/Channel (1 kHz, 0.08%, 2 channels driven, FTC)
Damping Factor	60 (front, 1 kHz, 8 Ω)
Input Sensitivity/Impedance	870 mV/20 k (unbalanced)
Rated RCA Output Level	0.87 V
Impedance	270 Ω (line out)
Frequency Response	10 Hz to 100 kHz/+0 dB, -3 dB
S/N	110 dB (line, IHF-A)
Speaker Impedance	4 Ω to 16 Ω

General Attributes

Power Supply (AC)	120 VAC, 60 Hz
Power Consumption	160 W No-Sound: 45 W
Standby Power Consumption	0.4 W
Dimensions	17.1 x 5.5 x 12.3″ (435.0 x 140.0 x 311.1 mm)
Weight	17.6 lb (8.0 kg)

Packaging Info

Package Weight	21.5 lb
Box Dimensions (LxWxH)	21.8 x 16.6 x 10.2″
