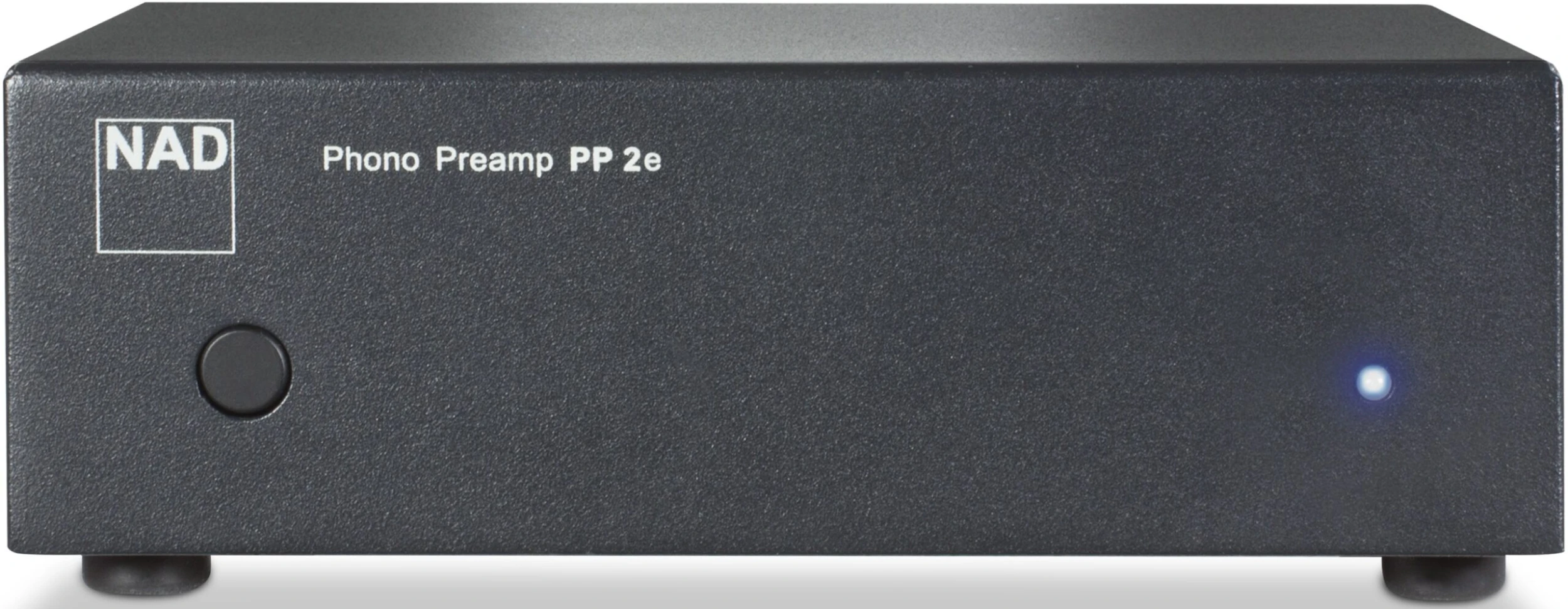

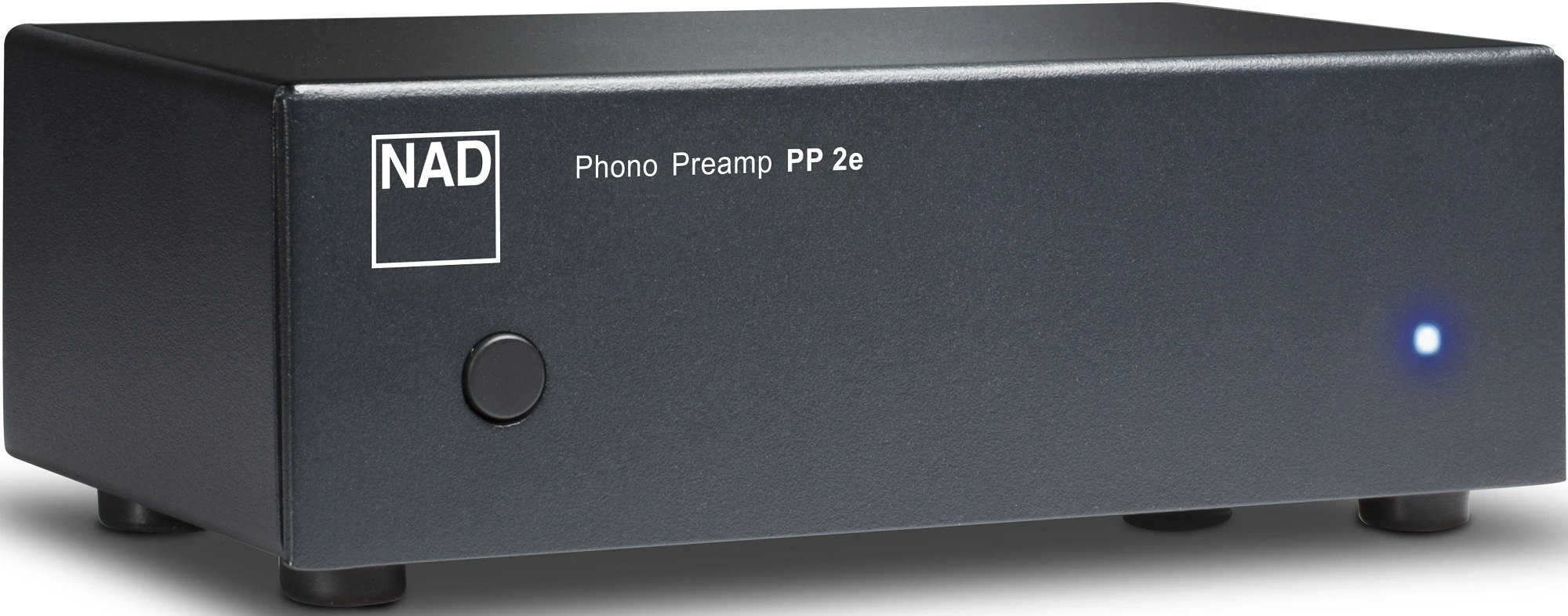

NAD PP 2e Phono Preamplifier

The PP 2e Phono Preamplifier offers superb performance in a
clean and simple package. Perfect for the budget-conscious audiophile, the PP
2e’s moving coil/moving magnet input selector provides different phono
cartridge options. This allows the PP 2e to be paired with any turntable,
giving consumers unlimited choice in building their system. The PP 2e’s Auto
Power Down feature saves energy by automatically powering the PP 2e to OFF when
not in use. Built to be the best companion to one’s turntable setup, the PP 2e
breathes life back into the vinyl you love.

Improved Energy Saving Phono Preamp

The PP 2e Phono Preamplifier offers superb performance in a
clean and simple package for a very reasonable cost. Perfect for the
budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input
selector provides different phono cartridge options. The PP 2e’s Auto Power
Down feature saves energy by automatically powering the PP 2e to OFF when not
in use.

• Low
  noise, wide band MM & MC phono stage

• Connect
  your turntable to almost all amplifiers and receivers

• External
  24 volt power supply

• Gold
  plated input sockets

• High
  quality components

• LED
  power indicator

MC

• Input
  Impedance (R and C)

• 100
  Ohm + 180pF

• Gain
  at 1kHz

• 60dB

• Input
  Sensitivity (ref. 200mV output)

• 0.3mV

• Signal
  to Noise Ratio

• 78dB
  (A weighted, with cartridge connected)

• Input
  Overload (20Hz/1kHz/20kHz)

• 0.8/9/84mV

• Rated
  Distortion (THD 20Hz – 20kHz)

• <0.03%

• RIAA
  Response Accuracy

• ±0.3dB

MM

• Input
  Impedance (R and C)

• 47
  kilohm + 200pF

• Gain
  at 1kHz

• 35dB

• Input
  sensitivity (ref. 200mV output)

• 2.5mV

• Signal
  to Noise Ratio

• 80dB
  (A weighted, with cartridge connected)

• Input
  overload (20Hz/1kHz/20kHz)

• 10/102/950mV

• Rated
  Distortion (THD 20Hz – 20kHz)

• <0.03%

• RIAA
  response accuracy

• ±0.3dB

Line Out

• Output
  Impedance

• 100
  Ohm

• Maximum
  Output Level

• 5.3V

General Specifications

• AC
  Supply

• External
  23.5V DC

• Dimensions
  excl. Power supply (W x H x D)

• 135 x 49 x 72mm

•
  5 5/16 x 1 15/16 x 2 7/8″
