M2Tech Crosby Stereo Power Amplifier

Crosby stereo power
amplifier

The perfect companion
for the Young MkIII

The Crosby is a versatile high efficiency class-D stereo
power amplifier which does for a perfect pair with the Young MkIII, both in
size and sound.

Its clean power is enough for most speakers, while its drive
capability can be improved by setting it in bridge mode.

In this case, the Crosby becomes a powerful mono amplifier;
two Crosby in bridge mode can drive virtually every speaker, be it an array of
dynamic drivers or an electrostatic panel.

Of course, the Crosby can be attached to every preamplifier,
not only to the Young MkIII. It is provided with both single-ended and balanced
inputs, plus trigger input/pass-through.

Thanks to its class-D design, it is virtually impossible to
destroy, all overload situations are reported on the front panel.

Crosby works great together with…Young MkIII…to drive your
speakers with clean power.

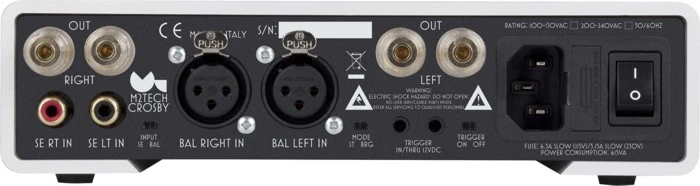

Inputs:	single-ended (RCA) balanced (XLR) trigger (3.5mm jack)
Outputs:	speakers (posts) trigger pass-through (jack 3.5mm)
Sensitivity:	1.25Vrms 5V (trigger)
Input impedance:	47 kOhms (single-ended) 20 kOhms (balanced)
Signal-to-Noise Ratio:	115dBA (stereo) 118dBA (bridged)
THD+N:	0.005% @ 60Wpc out on 8 Ohms
Output Power Before Clipping:	60Wpc (stereo, 8 Ohms) 110Wpc (stereo, 4 Ohms) 180W (bridged, 8 Ohms)
Supply voltage:	100-130VAC or 200-240VAC, 50/60Hz
Power Consumption:	615W (440Wpc on 4 Ohms mono) 1.5W (standby)
Size:	200x200x50mm (wxdxh)
Weight:	net 3kg (including ancillaries) gross 3.5kg
