Lyngdorf TDAI-3400 Integrated Amp With HDMI 2.1 (8K & HDR)

TDAI-3400

With the HDMI 2.1 input/output module upgrade:

The HDMI 2.1 module allows pass
through of the higher contrast and greater detail resolution
that HDMI 2.1 supports, up to 8K 50/60Hz and 4K 100/120Hz. It also
supports TVs with the latest Enhanced Audio Return Channel (eARC) and CEC. The
HDMI 2.1 module can be ordered with a new TDAI-3400 or fitted to an existing
TDAI-3400. It provides two HDMI inputs supporting audio up to 192kHz/24 bit and
one HDMI in/out with eARC/ARC.

With extreme audio processing options combined with the most
powerful and advanced digital amplifier technology, the TDAI-3400 is the most
powerful product from Lyngdorf Audio yet marketed.

Tailor your setup and sound

Through the web interface you can perform all setup and
operations from the menu system, which allows you to tailor your setup and
sound, and the digital crossover allows 3 individual output settings. With our
proprietary RoomPerfect™ room-correction software to eliminate the negative
influence of the listening room, the TDAI-3400 delivers a perfect sound without
the need for extensive room treatment.

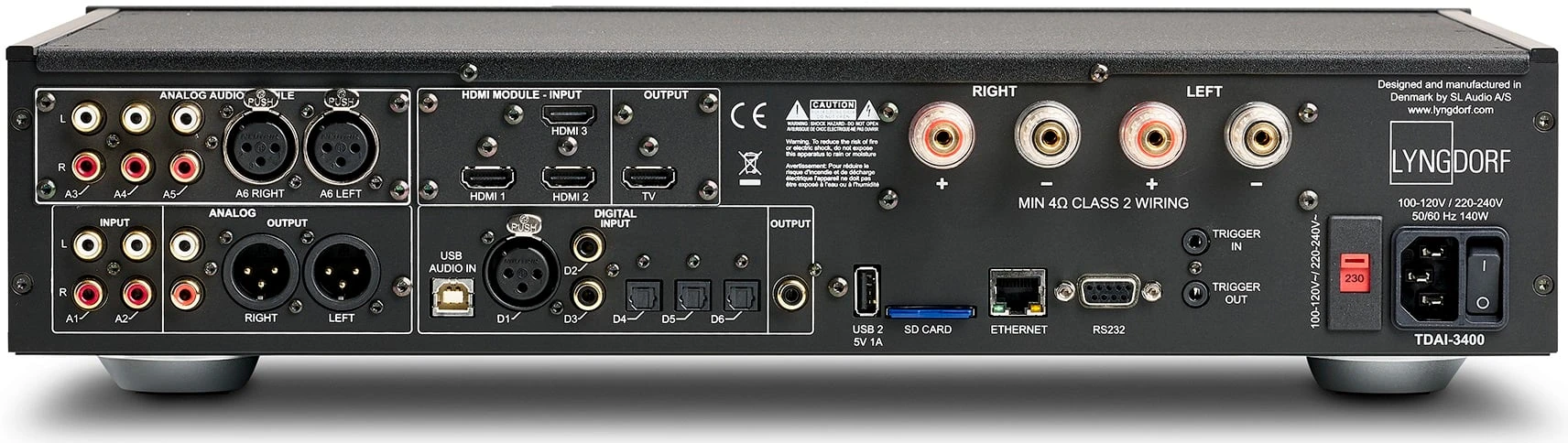

Connect audio and video sources

A variety of inputs and outputs provide plenty of options to
connect your audio and video sources as well as your speaker setup – such as 7
digital inputs including a balanced AES/EBU, USB inputs connects to music
stored external, 2 analog inputs for simple analog music sources and optional
modules.

Built-in media player

The TDAI-3400 accepts all media interfaces and features a
built-in media player with the highest playback quality. Through your local
network or via the USB connectors, you can access your entire library of music
through the DLNA/UPnP enabled player. This media player also allows music
streaming using Roon Ready, Spotify Connect, and Airplay 2 as well as internet
radio. The TDAI-3400 also supports TIDAL Connect which allows lossless audio quality
with the TIDAL app as the controller, and it includes the MQA Core Decoder, which unfolds the MQA file once to
deliver better than CD-quality. MQA (Master Quality Authenticated) is an
award-winning British technology that delivers the sound of the original master
recording.

Control the TDAI-3400 with an app

The “Lyngdorf Remote” app automatically discovers the
TDAI-3400 connected to your local network, and you will be able to adjust all
the basic functions like input selection and volume level from your handheld
device. The built-in media player can be controlled directly, and you can
access music files stored on pen drives connected to the Lyngdorf TDAI-3400 as
well as search all files stored on your local hard drives. Swiping left and
right gives you access to cover art as well as informing you of the signal
resolution.

“Lyngdorf Remote” app is available for free download from
both IOS and Android.

Specifications

: 2-channel integrated amplifier and audio
processor
Power handling: 2×400 W RMS @ 4Ohm / 2x200W RMS @ 8Ohm
Max output current: 40A
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000
Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz, THD-N 1w/8ohm
0,04% / THD-N 1w/4ohm 0,04%
Digital inputs (asynchronous): 1 x AES-EBU (≤192kHz/24bit), 2 x
Coaxial (≤192kHz/24bit), 3 x Optical (≤96 kHz/24bit), 1 x USB B (≤384kHz/32bit,
≤DSD128, DXD)
Analog inputs: 2 x Analog Single Ended RCA (Max level: 4.0V =
0dBFS), 1 x Microphone input for RoomPerfect™ calibration
HDMI module (optional): 1 x HDMI Output / 3 x HDMI Inputs (PCM ≤192kHz/24bit),
eARC/ARC (PCM ≤192 kHz/24bit), CEC integration, HDMI 2.0b support, HDCP 2.2,
Resolutions requiring 600 MHz clock supported
Digital outputs: 1 x coaxial digital (96kHz / 24 bit)
Analog outputs: 1 x analog single ended RCA, 1 x analog balanced
XLR, 1 x headphone output 3.5mm Jack
EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings
holding ≤8 filters with adjustable gain and Q
Mediaplayer: Roon Ready, Spotify Connect, Tidal Connect, DLNA
Support (uPnP), Airplay 2, Local file playback (USB), Internet Radio (vTuner),
MQA Core Decoder (output is 88.2kHz or 96kHz)
Wireless connections: Bluetooth (for Remote Control and BLE), Wi-Fi
(802.11 n/ac)
Interfaces: Web-interface, IP Control, 1 x DB9 connector for RS232
control, 1 x RJ45 Ethernet LAN connector, 2 x USB connectors (Type A) , SD card
slot (Backup of filters and settings)
Accessories included: RoomPerfect™ Microphone, Microphone stand,
cable & mini-jack connector, Remote control (IR / BLE)
Placement options: Optional rack mount or freestanding
Heat dissipation value: 270 BTU
Dimensions (Wx H x D): 45 x 10.5 x 36 cm (including connectors) / 17.7
x 4.1 x 14.1 inches
Weight: 8.2 kg / 18.1 lb
Finish: Matte black
