Lyngdorf LS-1000 2-way Line Source Speaker (Left)

LS-1000 (Left)

With our experience in creating speakers for Steinway
Lyngdorf reference home theaters, especially the outstanding Steinway &
Sons LS models, combined with our experience from the Lyngdorf MH and FR
speakers, our engineers have developed the LS-1000 for Lyngdorf Audio systems.

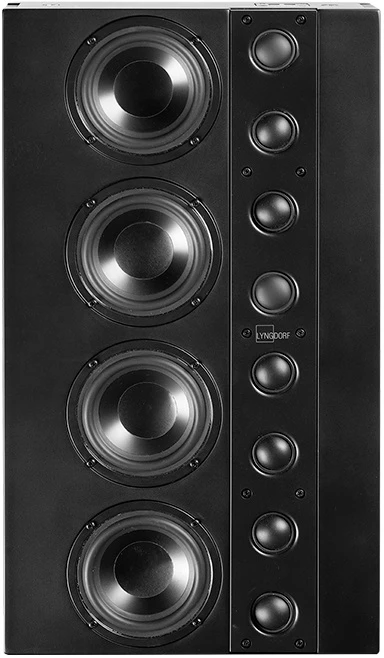

Four LS-1000 modules combined create a line source speaker, with each module
consisting of four 115mm midrange drivers with light aluminum cones, 25mm voice
coils and powerful vented magnets, complemented by eight 1” soft dome tweeters.
Four LS-1000 modules combined result in a line array with 16 midrange drivers
and 32 tweeters.

Depending on the room width, seat layout, speaker position
and screen size, three different LS-1000 models have been designed for the best
sound dispersion into the room:

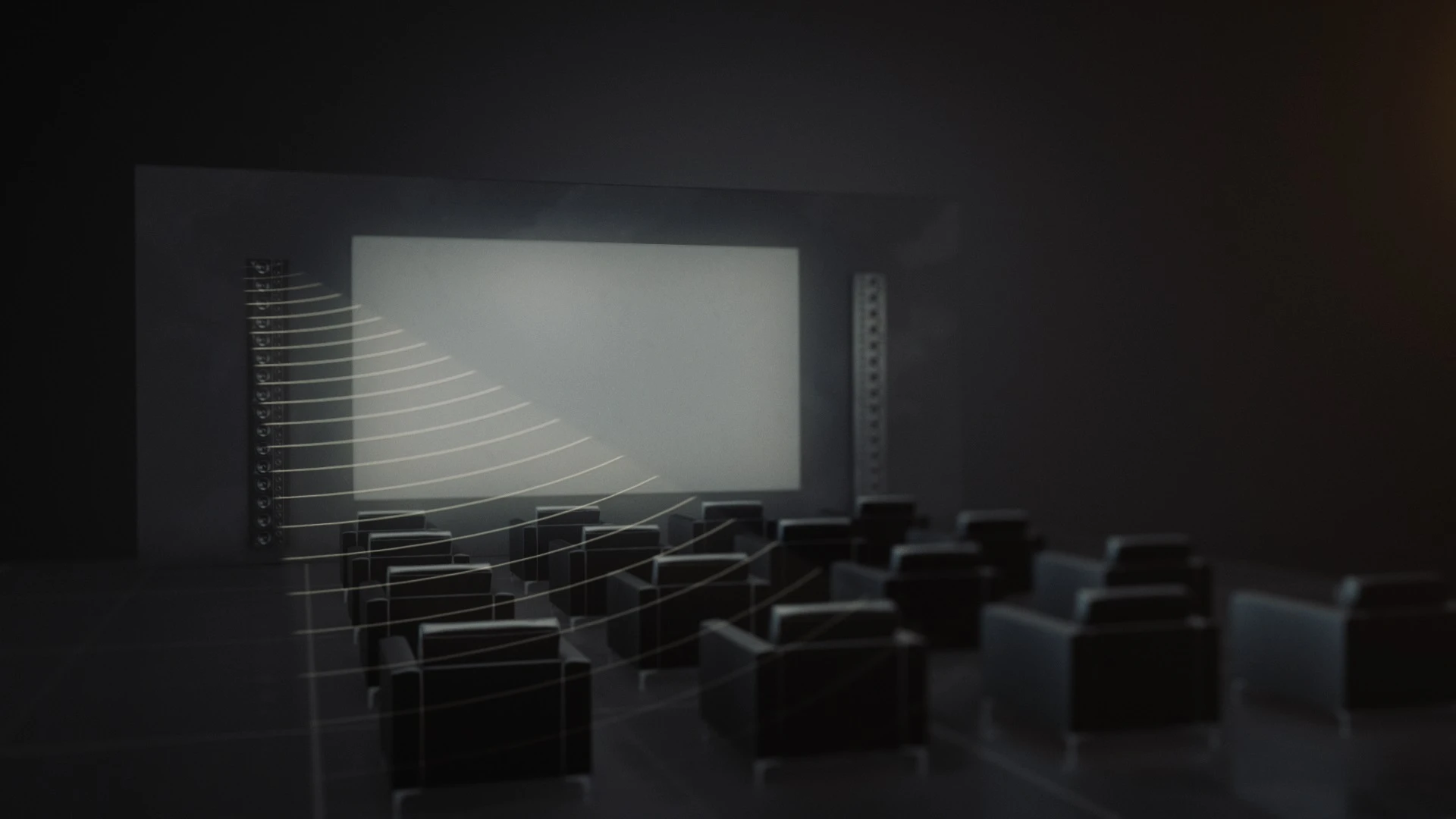

The Lyngdorf LS-1000 Left has a sound dispersion slightly
beaming inwards when placed on the left side, away from the side wall and
towards the listening area.

Unique features

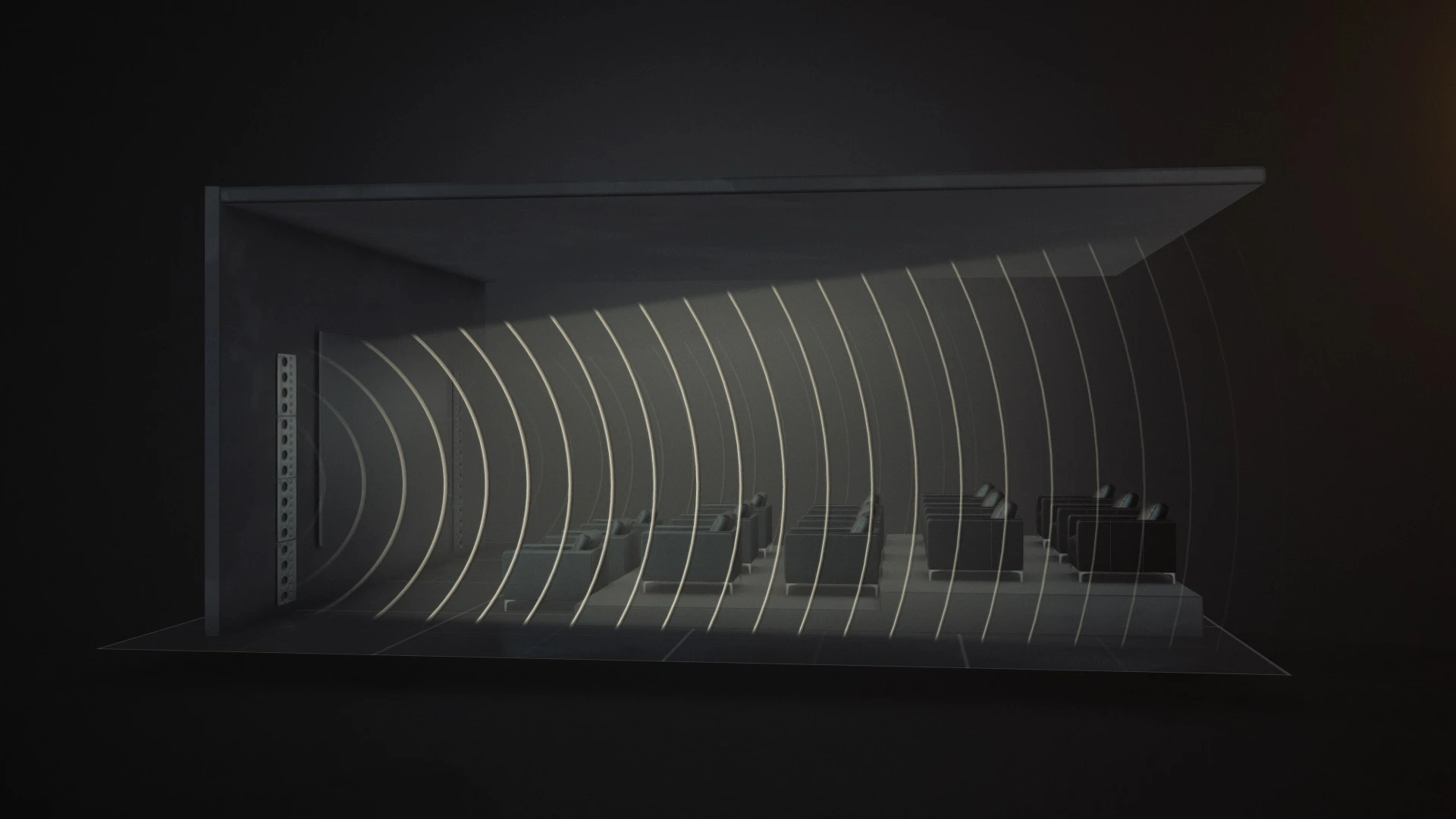

Reduced floor and ceiling reflections and uniform sound
energy across the room

The LS-1000 consists of multiple identical drivers in a
vertical line source array. Compared to conventional point-source speakers, a
line source minimizes the effect of floor and ceiling reflections by
restricting the vertical sound dispersion. Listeners will hear more of the
speaker and less of the room. The LS-1000 also retains its sound energy across
the room, the perceived volume level is very uniform on every seat. The “sweet
spot” opens-up in all directions significantly.

Dedicated LS models for left, right and center placement

Three different LS-1000 models have been designed for the
best sound dispersion into the room. The LS-1000 Left beams sound slightly
inwards when placed on the left side, away from the sidewall and towards the
listening area. The LS-1000 Right beams sound slightly inwards when placed on
the right side. The LS-1000 Center has the tweeters mounted centered, leading
to a wider sound dispersion equal to the left and right.

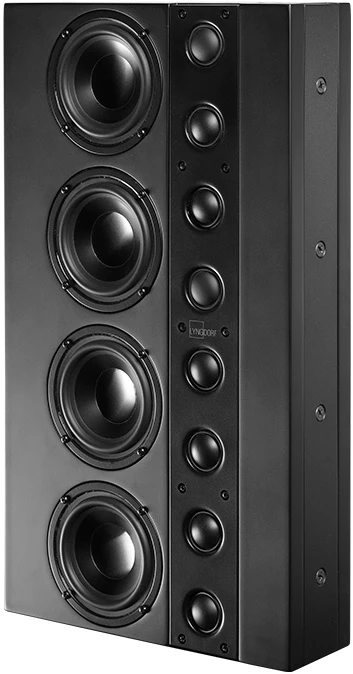

Very rigid and shallow modular construction, easy to
install

The LS-1000 is a very rigid modular construction which
minimizes mechanical resonance. The overall cabinet design is slim and very
shallow, which makes it very easy to install behind acoustically transparent
screens. The stacked modules connect through integrated contact pins, so that
no external speaker cables are required between the modules.

Easy to combine with amplifiers

With an IEC power handling of 300 watt, sensitivity of 98 dB
2.83 V/1m, and a combined impedance of 4 ohms when using four modules, the
LS-1000 is easy to combine with amplifiers. The high sensitivity combined with
a line source’s typically uniform sound energy across the room allows the
LS-1000 to achieve very high volume levels while sounding very effortless with
the given amplifier power. The frequency range of 20,000Hz down to 100Hz allows
different woofers or subwoofers to complement the LS-1000 seamlessly, ideally
with the Lyngdorf BW-20.

Specifications

Model: Lyngdorf LS-1000 Left
: 2-way line source, closed
Tweeter: 8 pcs 1” soft dome
Midrange driver: 4 pcs 115 mm, 25mm voice coil, aluminum cone,
vented magnet
Enclosure: MDF
Frequency range: 100 – 20.000 Hz (-3 dB) (for four LS-1000
modules)
Frequency extension down to 50 Hz depending on EQ

Frequency extension down to 50 Hz depending on EQ
Nominal Impedance: 4 Ohm (for four LS-1000 modules) (16
Ohm per module)
Sensitivity: 98 dB (2.83 V/1 m) (for four LS-1000
modules)
Power handling: 300 W (IEC) (for four LS-1000 modules)
Maximum SPL: 120 dB (for four LS-1000 modules)
Crossover point: 1,8 kHz
Connections: Screw terminals
Mounting: In-wall
Dimensions (W x H x D): 280 x 500 x 85 mm / 11 x 19.7 x 3.35 inches
+ mounting
Weight: 9,9 kg / 21.8 lb
Finish: Matte black
