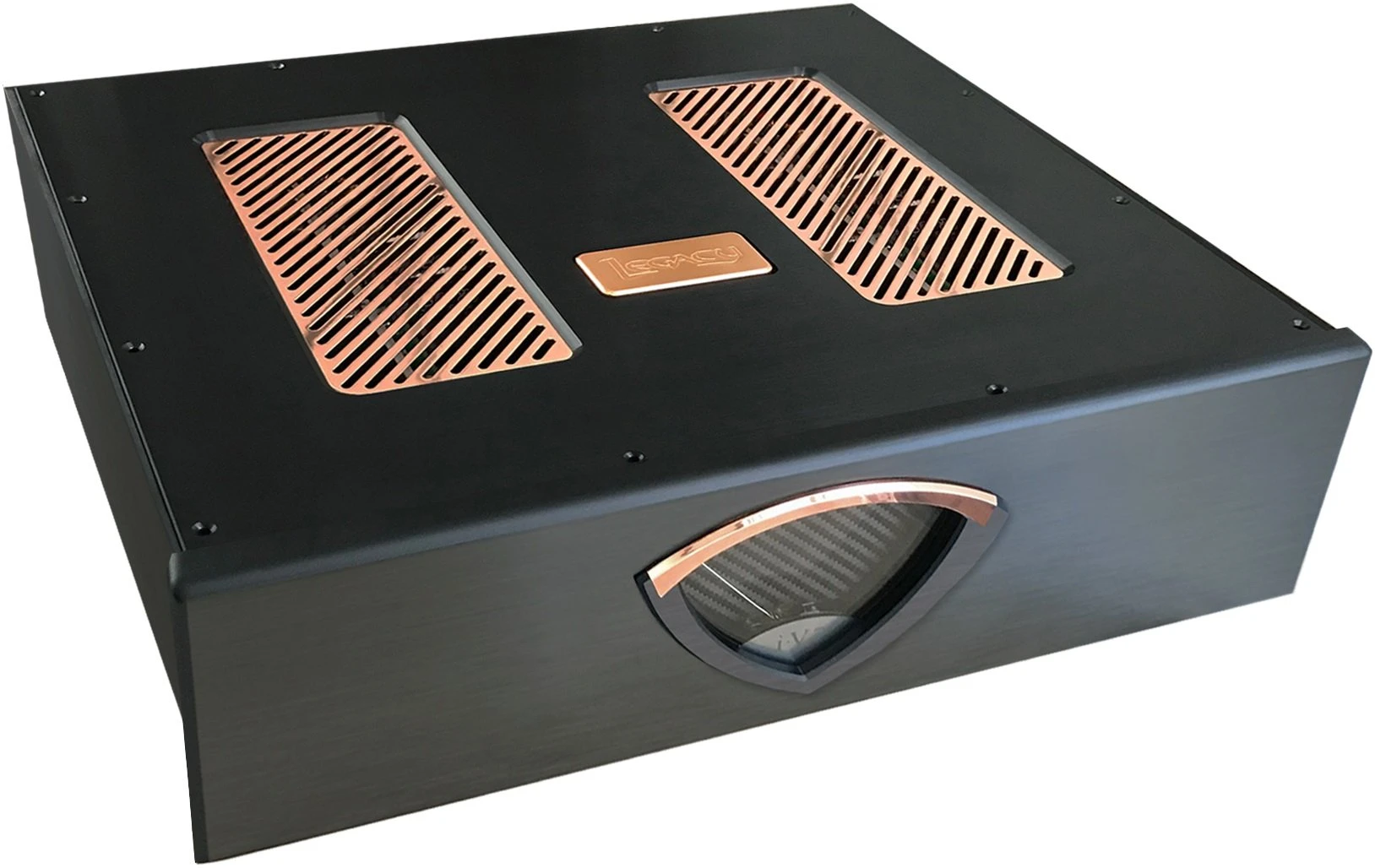

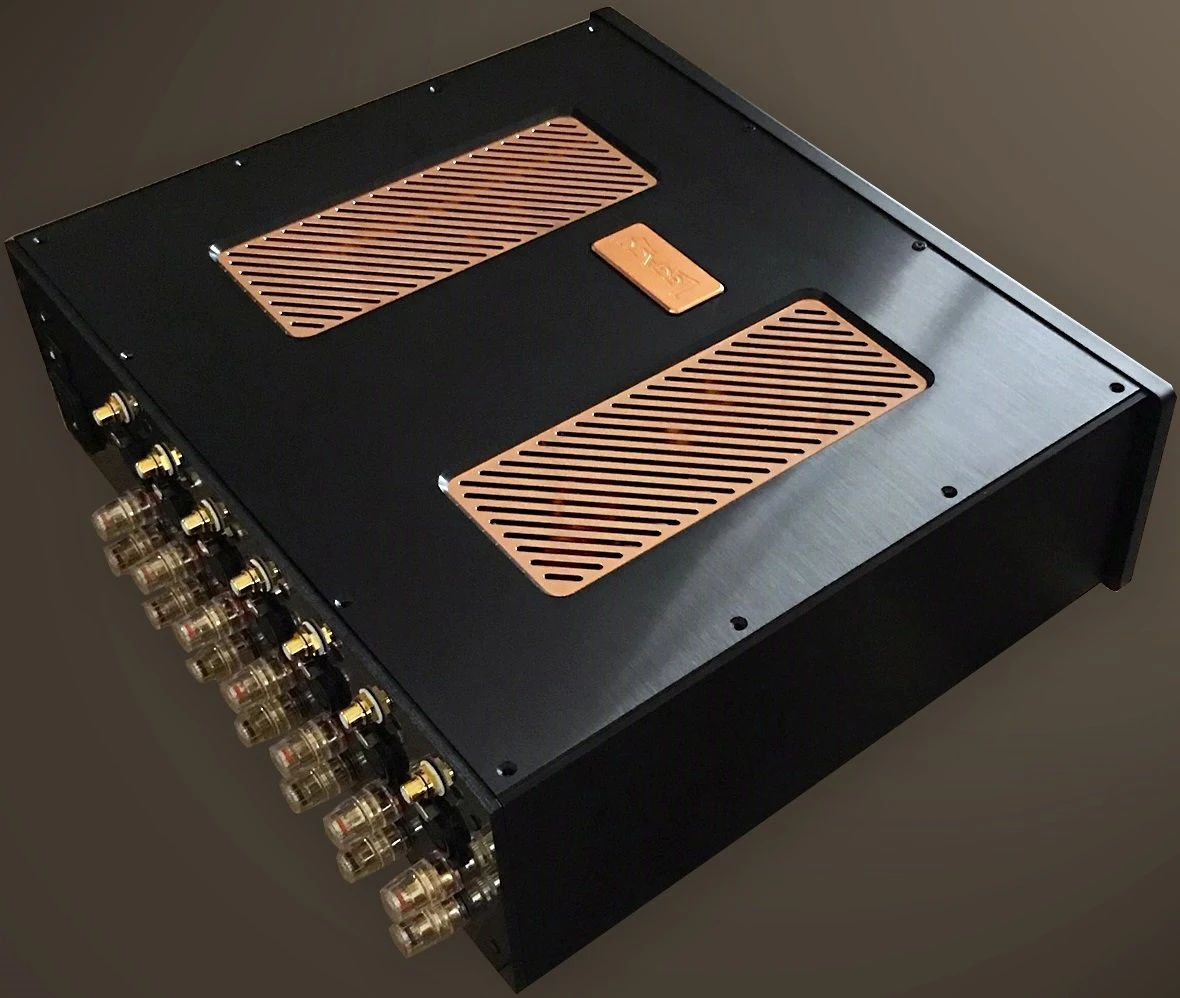

Legacy Audio I·V 2 Amplifier

PERFORMANCE COLLECTION

i·V2

Take advantage of the increased dynamic capability of high
resolution recordings with the Legacy i·V2 two channel amplifier. You will
enjoy a lower noise floor in your recordings, stronger crests, and increased
dynamic resolution.

Featuring state of the art ICEedge® technology, the elegant
i·V2 amplifier approaches 80% efficiency while delivering over 600 watts per
channel into 8 ohms, both channels driven. Such exceptional power is the
product of very high current (i) and voltage (V) output capabilities providing
stability into low impedances with a peak output current capability of 38A.

i·V 2 Features:

• Short
  circuit protection

• Thermal
  protection

• Triggered
  On/Off

• Standby
  switch

• Front
  panel status indicator

Say goodbye to excessive heat and transformer hum. The
crystal-clear sound is virtually noise-free and reliability is assured- after
all, it’s a Legacy.

The Legacy i·V series is available in a monoblock up to an
eight channel configuration. For a dedicated module for each channel, please
check out the i.V2 ULTRA amplifier.

“Truly Revolutionary. The i·V amplifier creates a
feeling of complete unity of the amplifier and speaker.” – Salon AV

ICEedge® Technology

These long life amplifiers employ ICEedge® technology to
sound as clean and uncolored as the best of the best while running much cooler.
This balanced differential design operates against a background of silence
while delivering incredible current and voltage outputs on demand.

Increased Resolution

Take advantage of the increased dynamic capability of
today’s high resolution recordings with the Legacy i·V amplifier series. You
will enjoy a lower noise floor in your recordings, stronger crests and
increased dynamic resolution.

Higher amplifier power assures the proper snap in transients
and means dense musical arrangements will avoid the smearing, strain and
inevitable distortion as complex passages reach higher levels.

• Power
  Rating:660 watts per channel x 2 @ 4 ohms, all channels driven 610 watts
  per channel x 2 @ 8 ohms, all channels driven

• Peak
  Power:1.2 kW peak power from any channel @ 4 Ohm/1kHz with less than 1%
  distortion

• Over
  Current Protection:Breaker reset for excessive sustained current

• Inputs:Fully
  balanced XLR, single-end RCA

• Outputs:Gold
  plated safety approved five-way binding posts

• Damping
  factor:750 average, 20Hz to 1kHz

• Voltage
  Gain:25.8 dB

• Dynamic
  Range:127dB, A- weighted

• Voltage/Current:98
  Vp / 38Ap

• Input
  Sensitivity:5.0Vp @ 1200W/4 Ohm

• Input
  Impedance:38 kOhm for both pin 2+ and pin 3-

• Channel
  Separation:120 dB at 1kHz

• Unit
  Dimensions:17.5″ W x 15.6″ D x 5.8″ H

• Unit
  Shipping Weight:28 lbs each

• A conventional single AC cord
  is provided.
