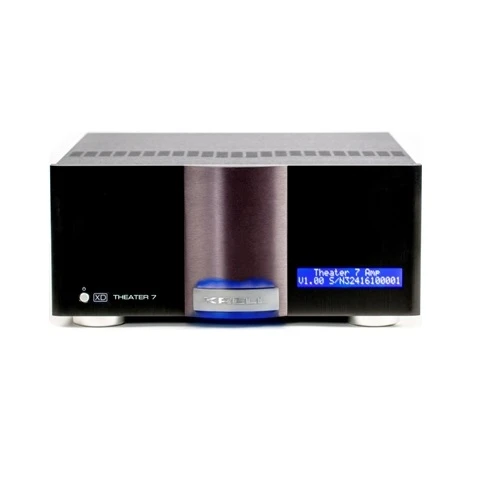

Krell Theater 7 XD 100-Watt 7-Channel Class-A Power Amplifier

THEATER 7 XD

7 Channel Power Amplifier

100 Watt Amplifier Featuring Krell iBias Technology

The amplifier design uses Krell Current Mode technology that
is fully differential and discrete in the critical gain stages. This results in
a highly linear and extended frequency response, well beyond the range of
hearing, for smooth effortless highs and tight high impact bass.

The power supply consists of two 787VA toroidal transformers
and 160,000uF of capacitance. This is shared among all the channels so all of
that power is available to the channels with the most demand.

In real world conditions the left, right, and center
channels require the lion’s share of the power so this gives the Theater 7 a
more effective power supply than other amplifiers that have smaller dedicated
power supplies for each channel.

Frequency response 20 Hz to 20 kHz +0, –0.11 dB <3 Hz to 200 kHz +0, –3 dB Signal-to-noise ratio >101 dB, wideband, unweighted, referred to full power output >114 dB, “A”-weighted Gain 25.5 dB Total harmonic distortion <0.02% at 1 kHz, at 100 W, 8 Ω, two channels driven; <0.20% at 20 kHz, at 100 W, 8 Ω, two channels driven; Input impedance Single-ended: 27 kΩ; Balanced: 54 kΩ; Input sensitivity Single-ended or balanced: 1.50 V RMS Output power, per channel 120W RMS at 8 Ω, 2 channels driven 115W RMS at 8 Ω, 3 channels driven 110W RMS at 8 Ω, 5 channels driven 105W RMS at 8 Ω, 7 channels driven 210W RMS at 4 Ω, 2 channels driven 190W RMS at 4 Ω, 3 channels driven 165W RMS at 4 Ω, 5 channels driven 140W RMS at 4 Ω, 7 channels driven Output voltage 93 V peak-to-peak 33 V RMS Output current 10 A peak

Output impedance
<0.025 Ω, 20 Hz to 20 kHz

Damping factor

>320, 20 Hz to 20 kHz, referred to 8 Ω

Power consumption

Standby: 1 W

Idle: 66 W

Maximum: 2000 W

Heat output

Standby: 3.42 BTU/hr.

Idle: 225 BTU/hr.

Maximum: 2200 BTU/hr.

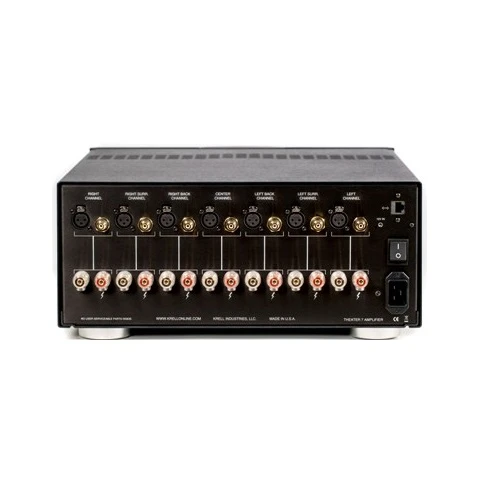

Inputs

7 single-ended via RCA connector

7 balanced via XLR connector

Outputs

7 pairs five-way binding posts

Remote connectors

One 12 VDC input (12 V trigger) via 3.5 mm jack

Dimensions

17.1 in. W x 7.65 in. H x 21.10 in. D

434 mm W x 194 mm H x 536 mm D

Weight

80 lbs., 36.4 kg (shipping)

70 lbs., 31.8 kg (unit only)
