Gold Note PH-1000 MM/MC Phono Stage (Silver)

PH-1000 is a premium phono stage which offers exclusive and
unique features including a large variety of Equalization Curves, Loads,
Capacitance and Gain ultra-fine adjustments, designed to complete top quality
turntable audio systems achieving the pinnacle of audio performance. You can
connect up to three different cartridges (MC or MM) simultaneously making
PH-1000 an extremely versatile phono stage and a trustworthy staple in any real
High-End analogue set-up. PH-1000 is completed by a stylish Italian industrial
design and easy handling via remote control or through the rotary knob on the
front panel. All settings are always graphically displayed on a practical TFT
color monitor.

MM/MC Phono Stage with 2 RCA and 1 XLR inputs, RCA and XLR
outputs, 20 EQ curves, manually adjustable EQ curves, and adjustable
load/capacitance.
Dimensions: 430mm W x 135mm H x 375mm D

THE LIMITLESS PHONO STAGE

The PH-1000 is a premium phono stage that offers limitless
features including unlimited modifiable Equalization Curves, presets of Loads,
Capacitance and GAIN ultra-fine adjustments. The PH-1000 can match MM and MC
cartridges and it is designed to take top quality turntables to the pinnacle of
their audio performances.

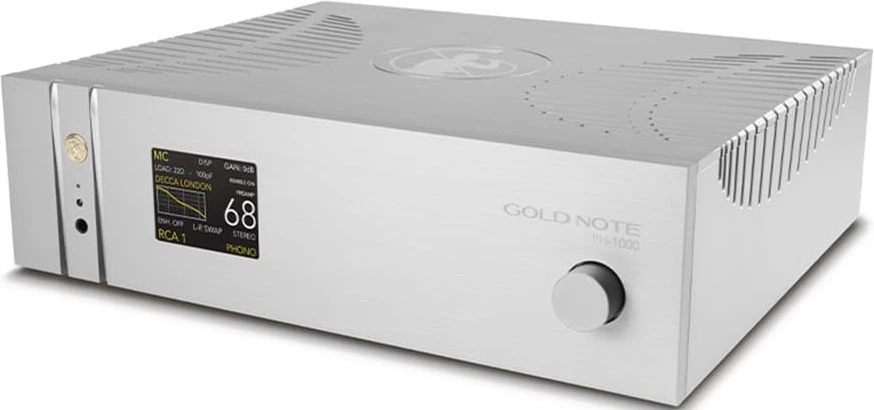

Featuring an extremely user friendly interface, the PH-1000
is an innovative and intuitive phono stage. All options are easily selectable
with the remote control or directly from the front panel Single Knob Control
(SKG) rotary knob while the large 3.5’’ color display shows all selectable
functions. Powered by a custom Gold Note firmware loaded on a micro SD Card,
updating operations are easily done on

a PC when needed. All functions can be adjusted in real time while music is
playing, allowing you to find the best setting for any records you are
listening to.

The PH-1000 is a fully analogue unit designed to preserve at
its best the audio signal purity. The Dual-Mono “Discrete Components Design”
also guarantees absolute superiority over other digital solutions available.
All selectable options are managed by High-End audio-grade analogue switches to
shorten the audio signal path, taking the best sound out of any vinyl record.

The PH-1000 also integrates a High- End audio analogue
preamplifier stage to connect the unit directly to a power amplifier like the
Gold Note PA-1175 MkII, the powerful and compact PA-10 or even active speakers.

The PH-1000 features a convenient high- quality built-in
headphone amplifier and three phono inputs: two RCA and one XLR, allowing
astounding connectivity.

Featuring also swapping channel, Mono/ Stereo mode, a serial
port and LAN/W-LAN connection, the PH-1000 is the absolute no compromise
High-End audio phono stage solution that offers amazing flexibility for a truly
new music experience.

To enhance the performance of the PH- 1000 even further, it
can optionally be matched to the external super inductive power supply
PSU-1250/1000 and the valve output stage TUBE-1012/1006.

Technical Specifications

PH-1000	Phono Stage Design with 6 output stages, made with discrete components
DIMENSIONS	430mm W, 135mm H, 375mm D
WEIGHT	26 lbs net weight 37lbs boxed
FINISHES	Case: Brushed Aluminium in Black, Silver or Gold color Inserts: Aluminium in Black, Silver or Gold color
AUDIO INPUTS	2 Stereo RCA unbalanced, 1 Stereo XLR balanced
AUDIO OUTPUTS	1 Stereo RCA (unbalanced) @ 1Volt 1 Stereo XLR (balanced) @ 4Volt 1 Output Stereo for TUBE-1006 & TUBE-1012 output stage (balanced GN) (optional upgrade)
FREQUENCY RESPONSE	20Hz – 20KHz
TOTAL HARMONIC DISTORTION THD	<0.01% max.
SIGNAL TO NOISE RATIO	-93dB
INPUT SENSITVITY	INPUT SENSITVITY
INPUT IMPEDANCE	12 selectable options [100KΩ, 75KΩ, 47KΩ, 33KΩ, 22KΩ, 1KΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
INPUT CAPACITY	selectable MM: 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
SUBSONIC FILTER	On/Off switchable 10Hz/36dB oct.
EQ CURVES	24 EQ Curves set-up [+ Enhanced Gold Note proprietary EQ curves] @ +/- 0.3dB max.
DYNAMIC RANGE	110dB
GAIN	Gain in MM 40dB adjustable 34 to 49dB (50 to 280 times) in 6 steps Gain in MC 65dB adjustable 59 to 74dB (890 to 5000 times) in 6 steps
MONO/STEREO	adjustable
CHANNEL SWAPPING	R/L, L/R
IR RECEIVER	for remote control
WIFI	optional
POWER SUPPLY	Dual Mono linear power supply 100-120V / 220-240V with automatic selection Power consumption: 30W PSU Input for special external power supply PSU-1000 & PSU-1250
