GOLD NOTE PA-10 Stereo Power Amplifier

GOLD NOTE PA-10 Stereo Power Amplifier

PREOWNED – FULLY TESTED – INCLUDES ORIGINAL BOX/PACKING, MANUAL, POWER CABLE, GN LINK CABLE

The PA-10 is small but powerful stereo power amplifier capable of delivering a power rate of 75W per channel @ 8 Ohm that can be increased to a considerable 600W @ 4Ohm when used in mono (Bridge-Tied-Load).

COMPACT SIZE FULL POWER AMPLIFIER

The PA-10 is the new power amplifier of the Gold Note Series 10 that can play either in Stereo or Mono (bridged) mode. Characterized by the greatest built quality and an impressive variety of functions, the PA-10 is an incredibly versatile power amplifier suitable for any modern High-End audio system. The aesthetic of the chassis is derived from the Series 10 products integrating the PA-10 seamlessly into a coherent concept inspired by the world- famous Italian style and Gold Note modular design.

The power amplifier is composed of a high-quality chassis made from heavy aluminum panels and accurately selected audio components. The idea behind the PA-10 was to design a power amplifier compact in size but capable of astounding power capable of driving any kind of loudspeakers. The new great proprietary technology developed for the PA-10 allows the amplifier to act like a Class A amplifier doubling its power while lowering the speaker impedance. It features a 75Watt @ 8Ω, 150Watt @ 4Ω and 300Watt @ 2Ω in stereo mode, and an amazing 300Watt @ 8Ω, 600Watt @ 4Ω in mono mode.

The PA-10 distinguishes itself with its great versatility, applying a lot of innovations Gold Note is now well known for. Starting from the adjustable Damping Factor, it allows a perfect pairing to any kind of speakers, from the most difficult to high-sensitivity and mini monitor, always providing the best matching.

The Bridge-Tied-Load technology (Mono mode) makes the PA-10 a super high-power amplifier able to virtually drive any speaker on the market. The XLR stereo output enables the PA-10 to be configured in series for convenient high quality multi-room solutions, made easy by the automatic On/ Stand-by mode based on the audio signal received.

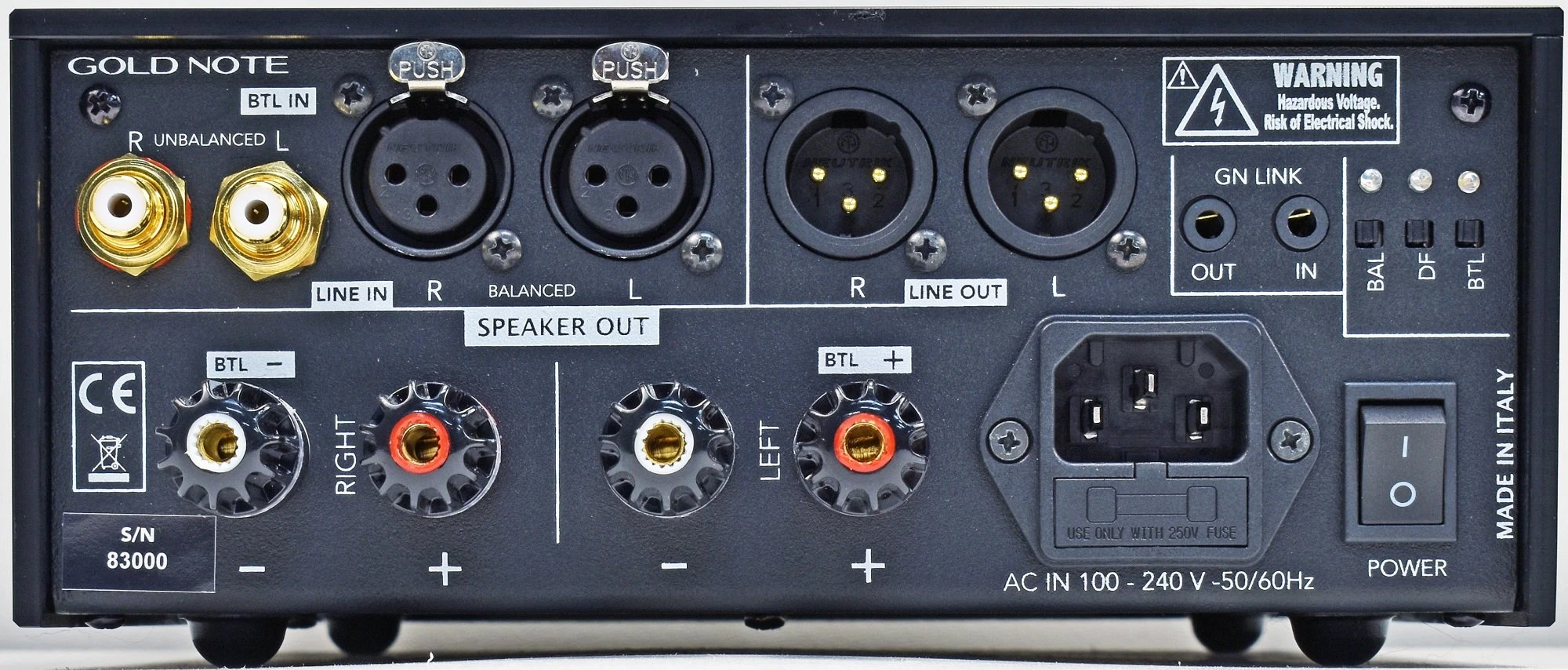

The PA-10 comes with both RCA and XLR inputs. It optionally offers the possibility to be simultaneously connected to two different sources like the Gold Note PH- 1000 phono stage with volume control and the DS-10 4-in-1 DAC.

More user friendliness is given with the in-house In/Out GN Link technology which allows putting the amplifier in master-slave- mode with other units presenting the same feature.

Technical Specifications

POWER OUTPUT	75/150W @ 8/4Ω per ch. in stereo to 600W @ 4Ω per ch. in mono (BTL)
FREQUENCY RESPONSE	10Hz-30kHz at +/-1dB
TOTAL HARMONIC DISTORTION (THD+N)	0,05%
DAMPING FACTOR	selectable high/low
INPUT SENSITIVITY	1,4V RMS on RCA and XLR
INPUT IMPEDANCE	13KΩ RCA/XLR
POWER CONSUMPTION	<1W in standby; <10W no signal; 150W at a 1/4 of nominal power, 1400W max
DIMENSIONS	200mm W x 80mm H x 260mm D
WEIGHT	8lbs net 11lbs boxed
