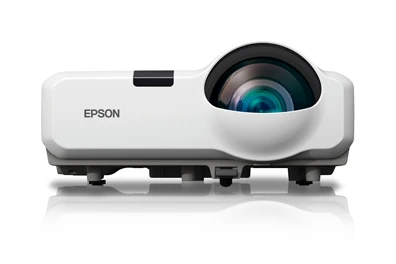

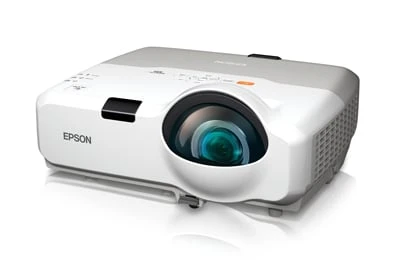

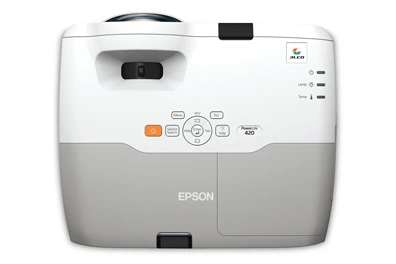

Epson® Epson PowerLite 420 XGA 3LCD Projector

Affordable Short-throw Projector with Premium Audio and Connectivity

Ideal for wall-mount installations in classrooms or conference rooms, the PowerLite 420 offers the perfect solution — at the perfect price. This budget-friendly short-throw projector minimizes shadow interference and glare, to ensure optimum viewing of your presentations. Using a built-in short-throw lens, it enables you to project an 80″ image from just 2.9 feet away. Get brilliant images with 2500 lumens of color brightness (color light output)¹ and 2500 lumens of white brightness (white light output)¹. The PowerLite 420 is equipped with a microphone input and a premium 16W speaker to enhance any lesson with captivating audio. HDMI digital connectivity and advanced networking capabilities offer even more flexibility for teaching scenarios today and in the future.

3x Brighter Colors with Epson* Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 2500 lumens of color brightness1 and 2500 lumens of white brightness1, the PowerLite 420 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H447020
Projection System: 3LCD, 3-chip technology
Native Resolution: 1024 x 768 (XGA)
Color Brightness: 2500 lumens¹
White Brightness: 2500 lumens¹

Key Features

• XGA

1024 x 768 resolution

• Short-Throw Projector

Can be mounted only 36 inches away from the board, and the projected image can get as large as 87″ diagonal with no shadow interference

• Present Over a Network

Project over a network, for multi-room presentations or to show digital signage

• Optional Wireless Connectivity

Can be used wirelessly with optional high-speed LAN module (purchased separately)

• HDMI Connectivity

Includes digital, HDMI audio and video connection, for HD quality with just one cable

• 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
• One measurement of brightness is not enough — look for both high color brightness and high white brightness.
  The PowerLite 420 has:

Color Brightness: 2500 lumens¹
White Brightness: 2500 lumens¹

• Large, engaging presentations, even in small spaces — short throw distance saves space; project a 80″ image from just 2.9 feet away
• Reduced shadows and glare — ideal for use with interactive whiteboards

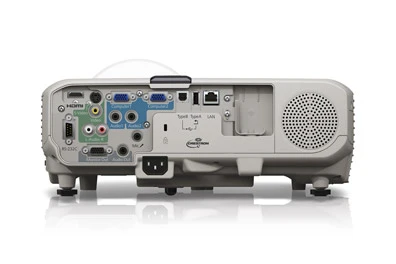

• Versatile connectivity for the classroom — HDMI, computer / VGA inputs, audio inputs, USB, audio out, monitor out and RS-232c
• Powerful sound and communication features, no added cost — built-in 16W speaker, microphone input and closed captioning decoder
• Remote monitoring / control or projecting content over the network — RJ-45 LAN with included EasyMP software
• Simple, cost-effective installation — optional short-throw all mount for flexible installation
• Energy-efficient E-TORL® lamp — lasts up to 6000 hours²
• Broadcast your message — advertise events or broadcast instructions to all networked Epson projectors³
• Fast wireless connectivity — via the optional wireless module with either the included EasyMP software (Mac and PC) or optional Quick Wireless Connection USB key (PC only)
• Virtual projector remote control on your computer — controls networked projectors via a web browser
• 3-in-1 USB Plug ‘n Play — instantly display your presentation, transmit audio, and use your remote control as a mouse to control your presentation
• Enhance classroom lessons — connect your 420 directly to the Epson DC-06 document camera via USB; no computer required
• PC-free slideshows — via a USB flash drive (supports JPEG, PNG, GIF and BMP file formats)
• Easy setup / positioning flexibility — adjust your presentation to suit your space and audience with the 1.35x digital zoom, Quick Corner and horizontal / vertical keystone correction
• Built-in teaching aids — pre-set and customizable templates to project lines, grids, or a frequently used image
• High density filter — 8x the surface area of previous filters for even more protection against dust; long filter cleaning cycle up to 5000 hours⁴

What’s in the Box

• Epson PowerLite 420 projector
• Lens cover
• Power cord
• Computer cable (VGA)
• Projector remote control
• Batteries
• User manual CD
• Projector software CD
• Quick Setup Sheet
• Password protection sticker

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

³ Message Broadcasting works only with Epson projectors that support presentation over the network capability.

⁴ Recommendation based on normal room conditions. Cleaning requirements may vary depending on use, environment and other conditions. Cleaning intervals may be adjusted to accommodate the environment in which the projector is used.
