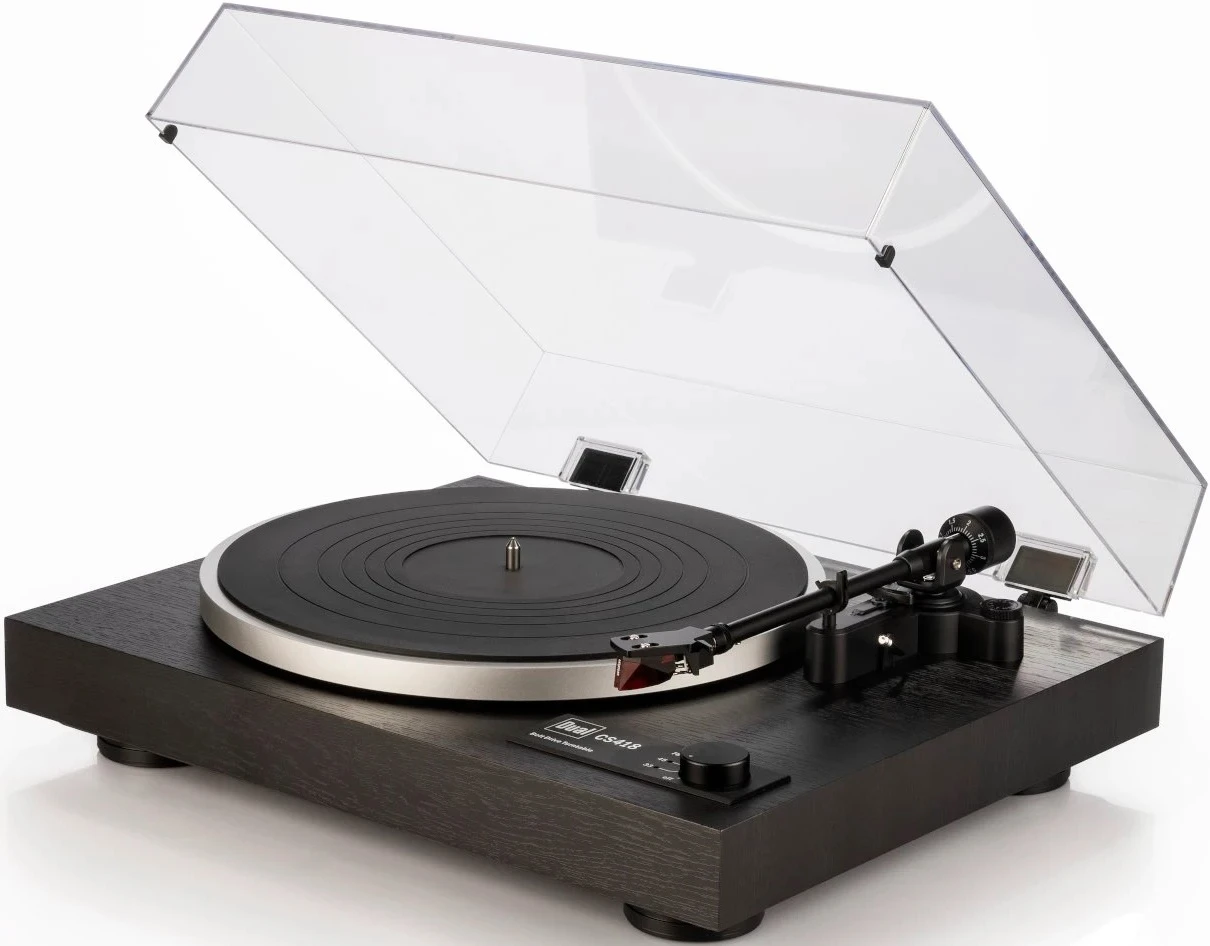

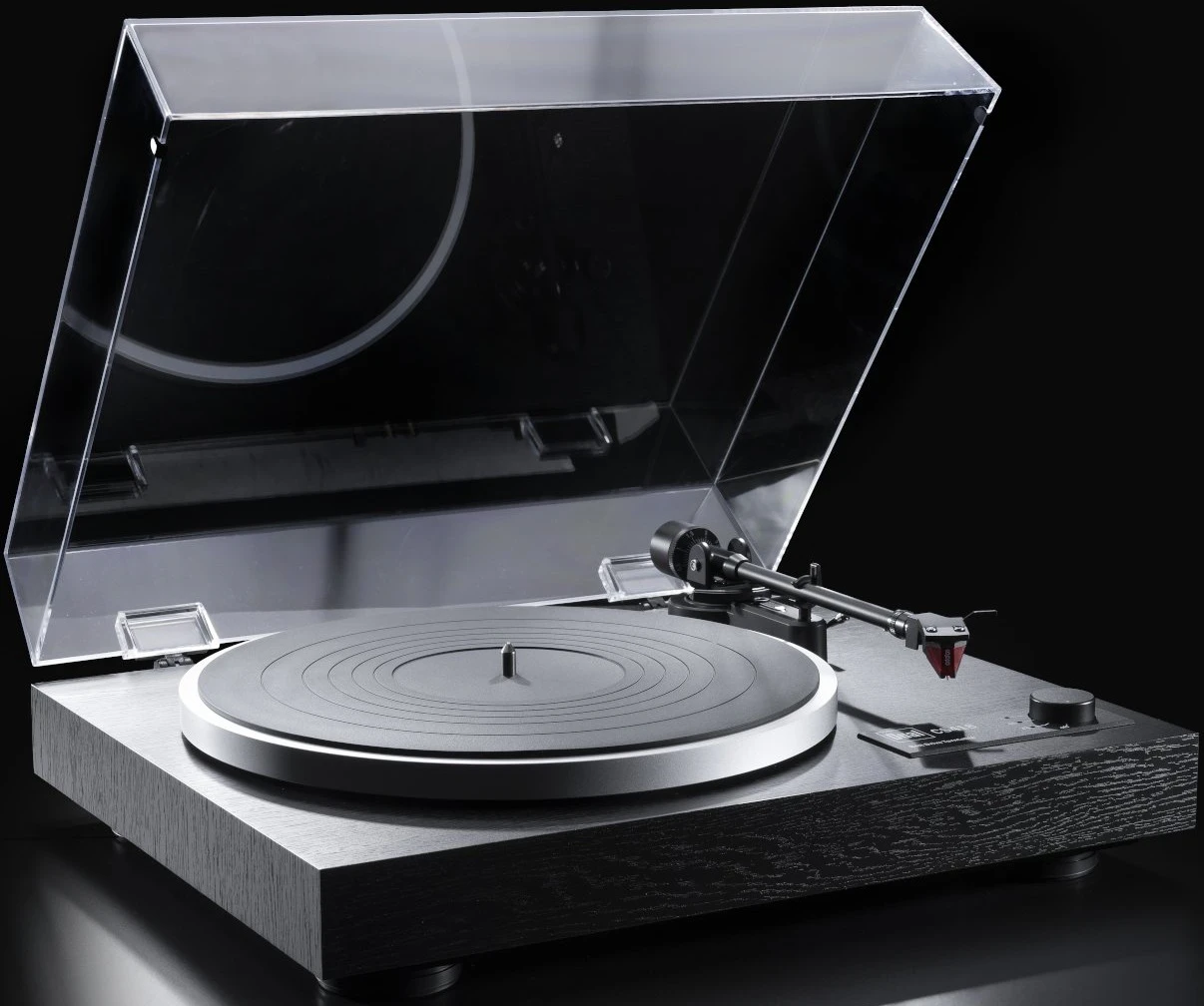

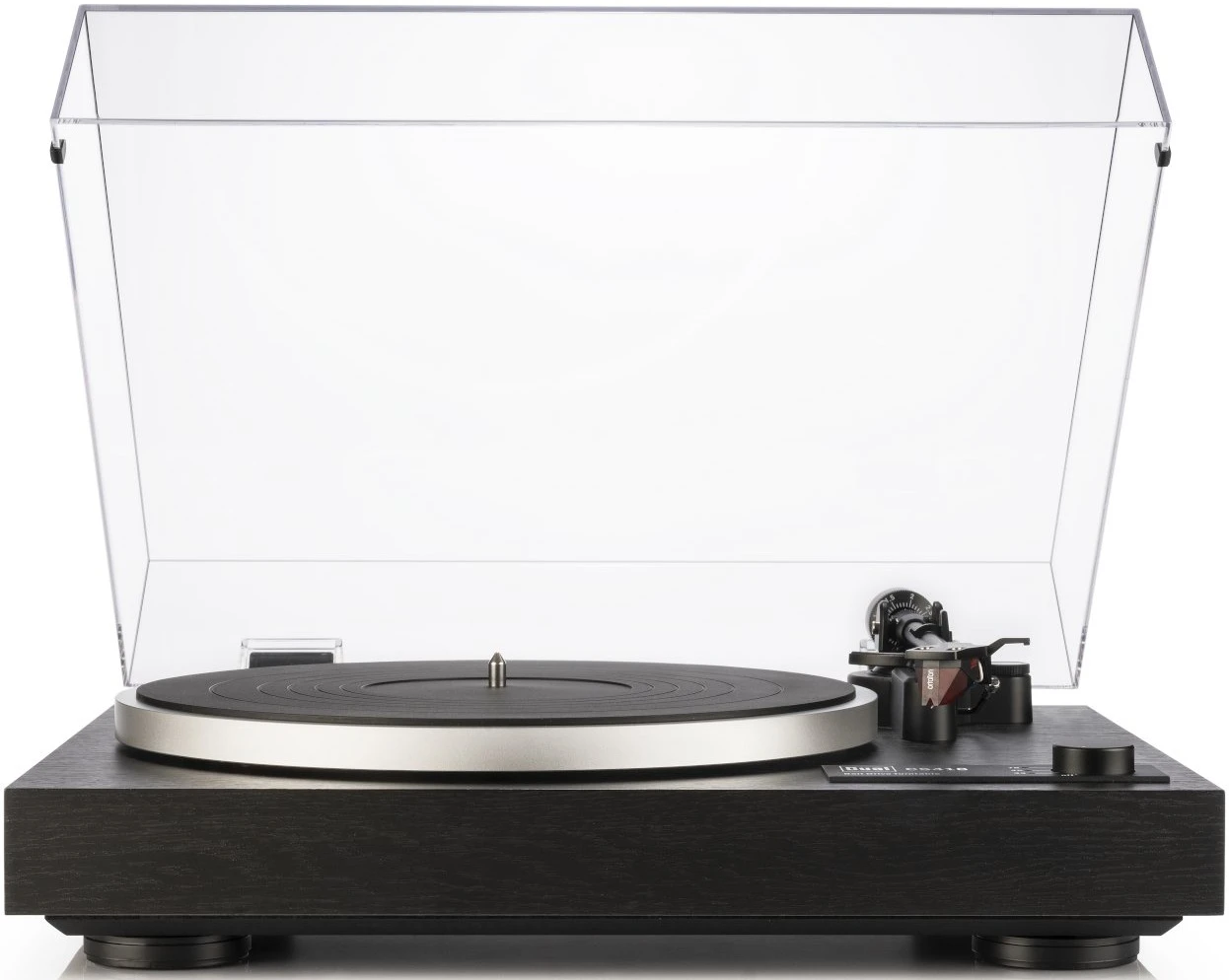

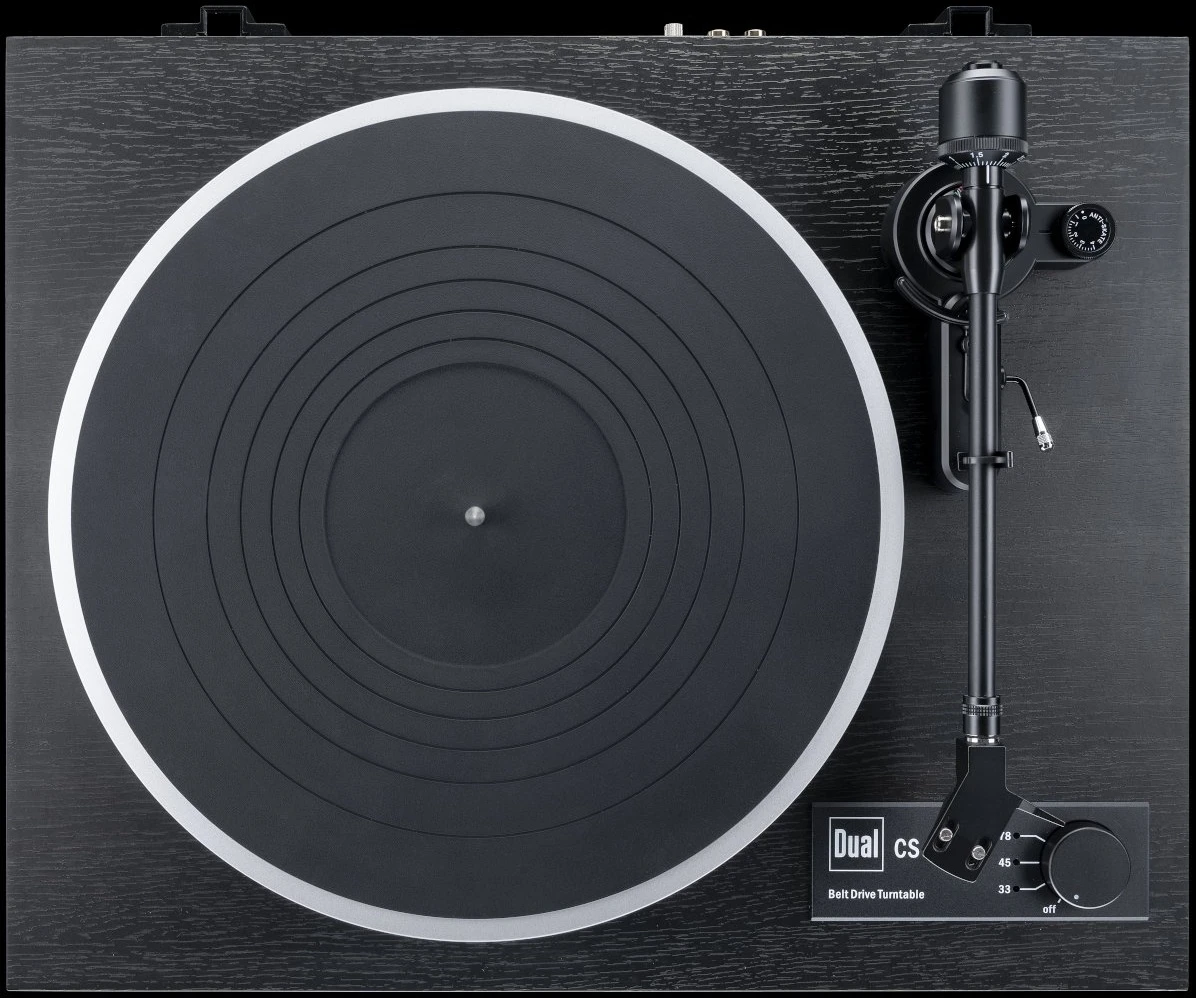

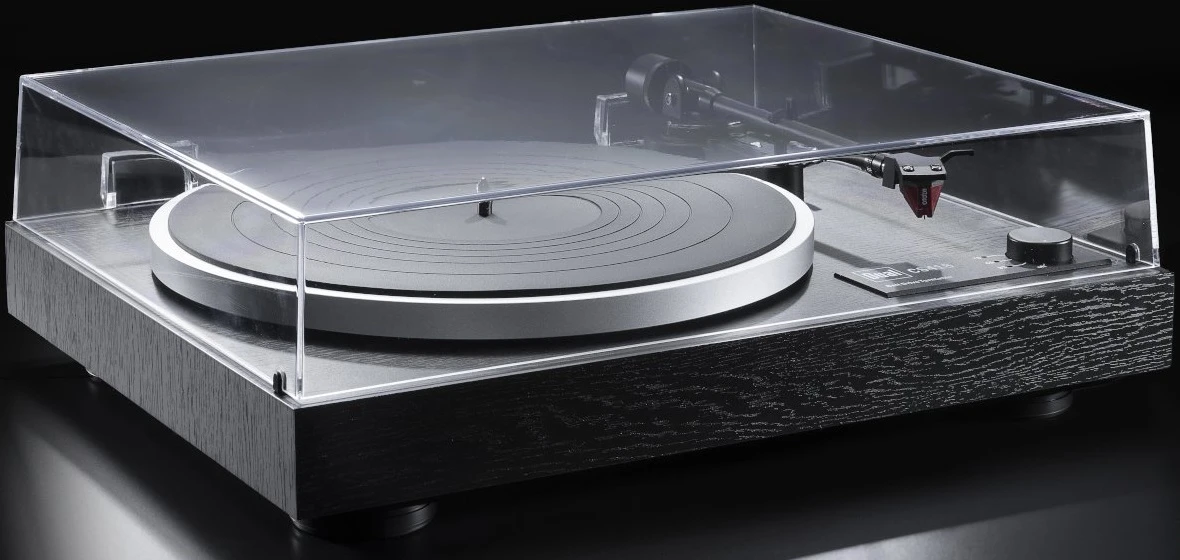

Dual CS 418 Manual 3-Speed Turntable With 2M Red Cartridge

CS 418

THE MANUAL

RECORD PLAYER ENTRY

Emphasis on high component precision is a feature of the
entire range of Dual products. This is the case for the entry model CS 418,
which uses the same platform as the higher models in the product range.

The Ortofon 2M Red pickup and a switchable MM-phono
preamplifier are an integral part of this ready to run package.

The CS 418 is not attractive just because it is excellent
value for money, but it also offers a superb and compelling balanced sound
experience and a 5-year warranty for long term ownership.

DETAILS:

Plinth: Solid MDF

• Folded
  MDF construction with a black vinyl veneer

• Elastomer
  vibration absorber integrated inside the feet

• Removable
  dust cover



Platter: Aluminum Die-cast

• Precise
  aluminum die-cast

• Heavy
  rubber mat for resonance damping

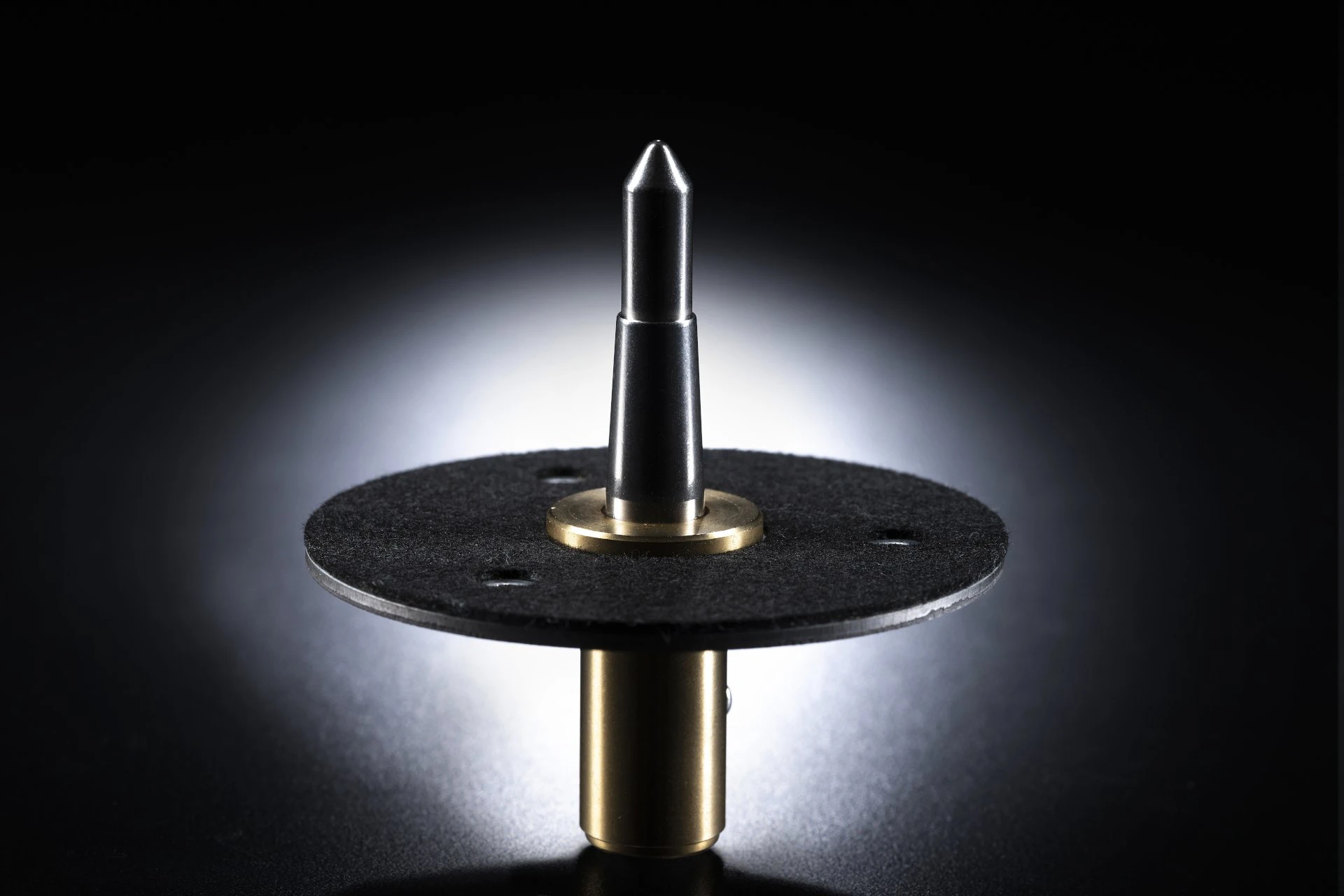

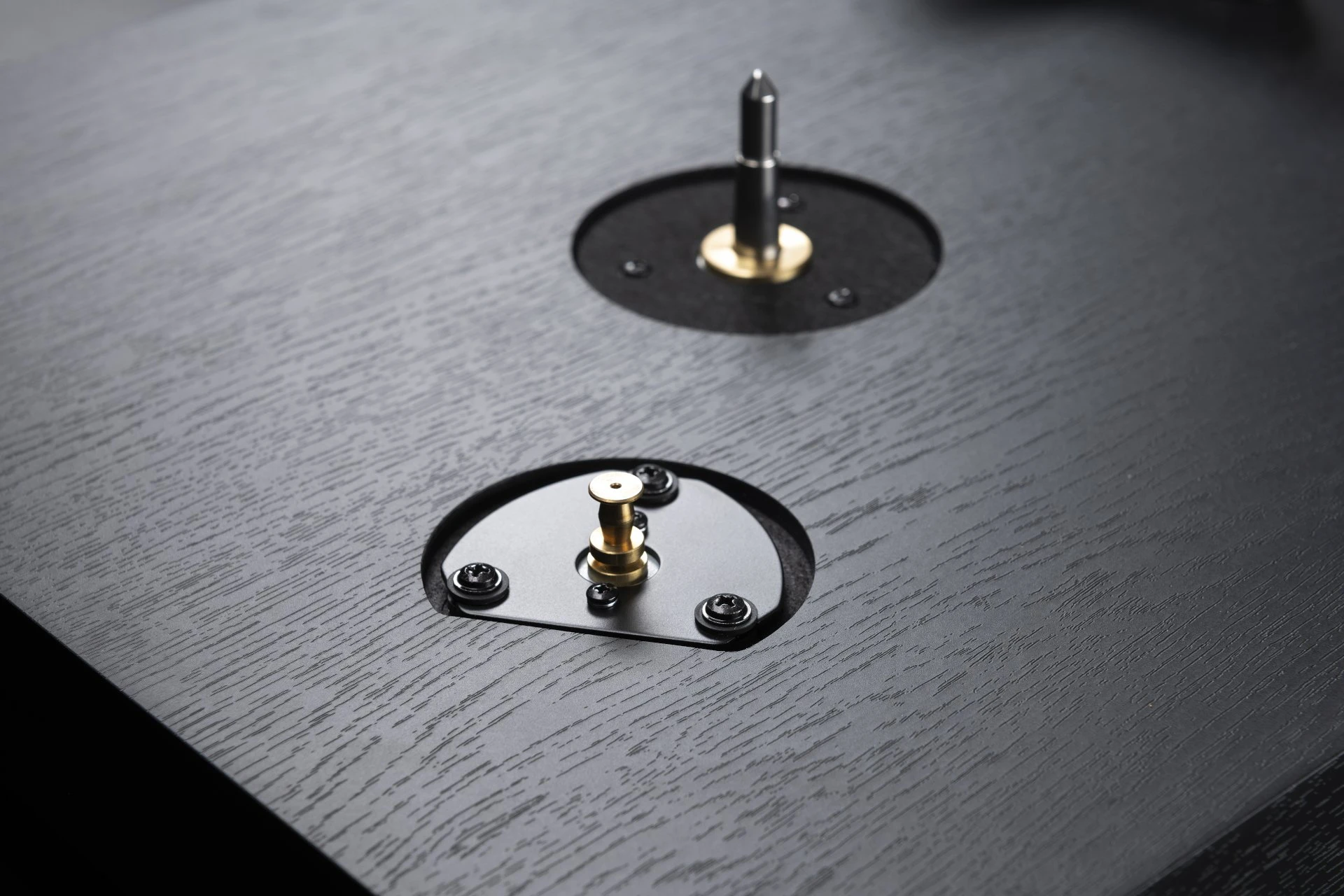

• Solid platter
  bearing with a hardened steel spindle in a brass bushing

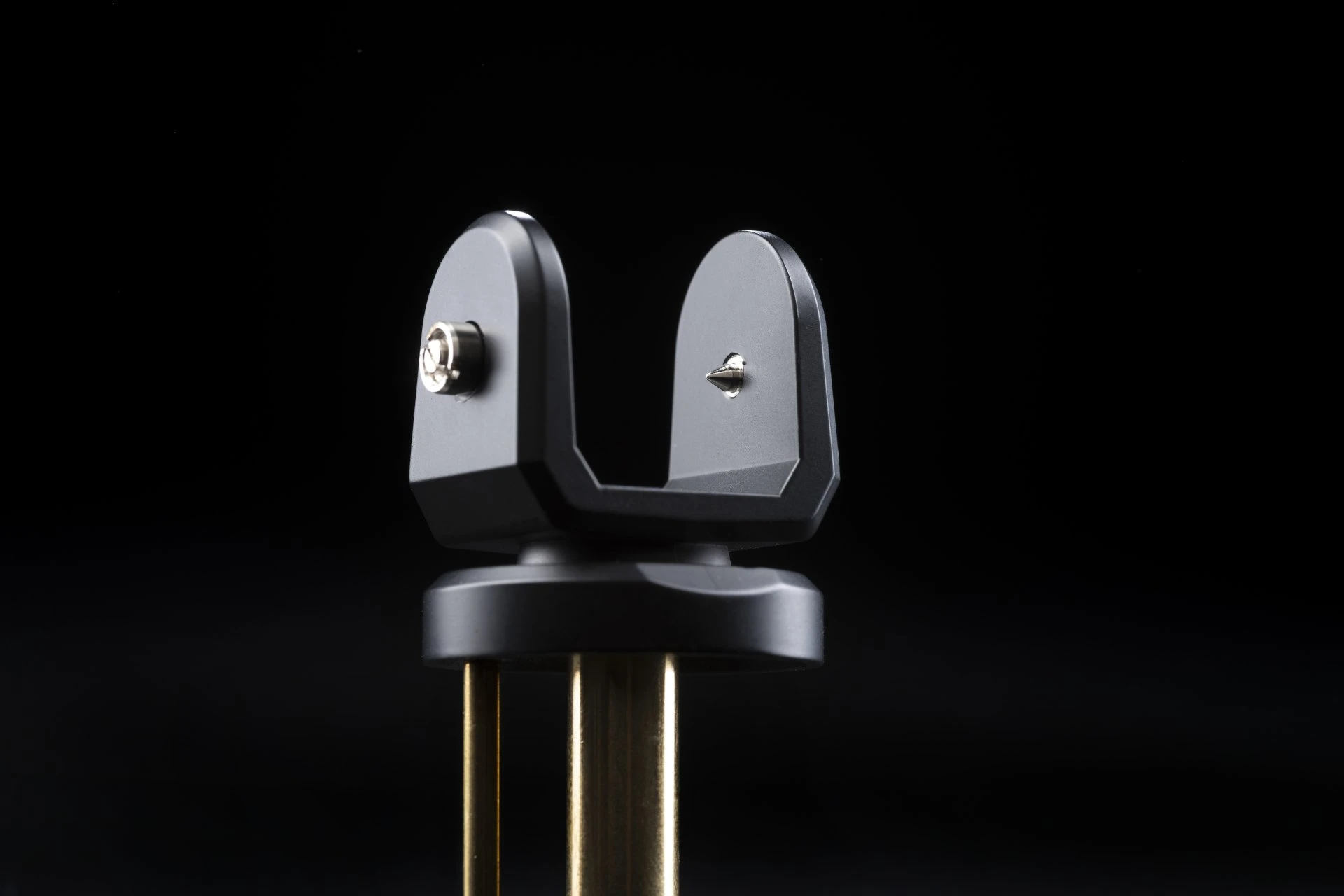

Tonearm: Straight, statically balanced

• Solid
  aluminum construction with ball-bearings

• Damped
  tonearm lift

• Adjustable
  tracking force and antiskating



Drive: DC- Motor / Belt

• Low
  vibration DC-Servo-Motor

• Rubber
  mountings for vibration decoupling

• Precision
  cut belt for lower wow & flutter



TECHNICAL DATA:

Motor:

Drive:
Belt

Speed settings:
33/45/78

Wow & Flutter:
< ±0,1 % (DIN WTD)

Tonearm:

Auto-Start/-Stop-Function:
✕

Bearing:
Ball-bearing

Effective length:
221,5 mm

Offset Angle:
25,6°

Overhang:
19 mm

Type:
statically balanced

Stylus Pressure Range:
0 g bis 4 g

Cartridge Weight Range
5 g bis 9 g

Factory installed pick up:
Ortofon 2M Red

Platter:

Material:
Aluminum die-cast

Mat:
Rubber 2,5 mm

Bearing:
Hardened steel spindle Brass bushing

Diameter:
305 mm

Weight (incl. Mat):
850 g

Plinth:

Material:
MDF, folded

Surface finish:
Vinyl veneer / Black

Feet:
Ø 62 mm / Elastomer

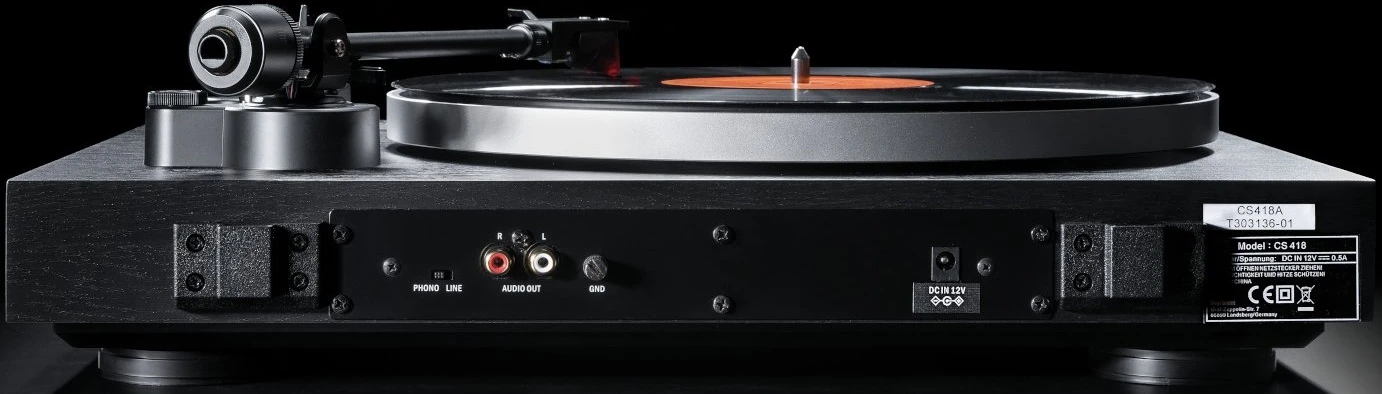

Connection:
RCA socket

Connection to Phono Input:
✓

Connection to Line Input:
✓

Digital Output:
✕

Dimension, closed dustcover:
435 x 367 x 145 mm

Dimension, open dustcover:
D: 415 mm / H: 400 mm

Weight:
5,8 kg

Power plug AC / DC:
External power supply
