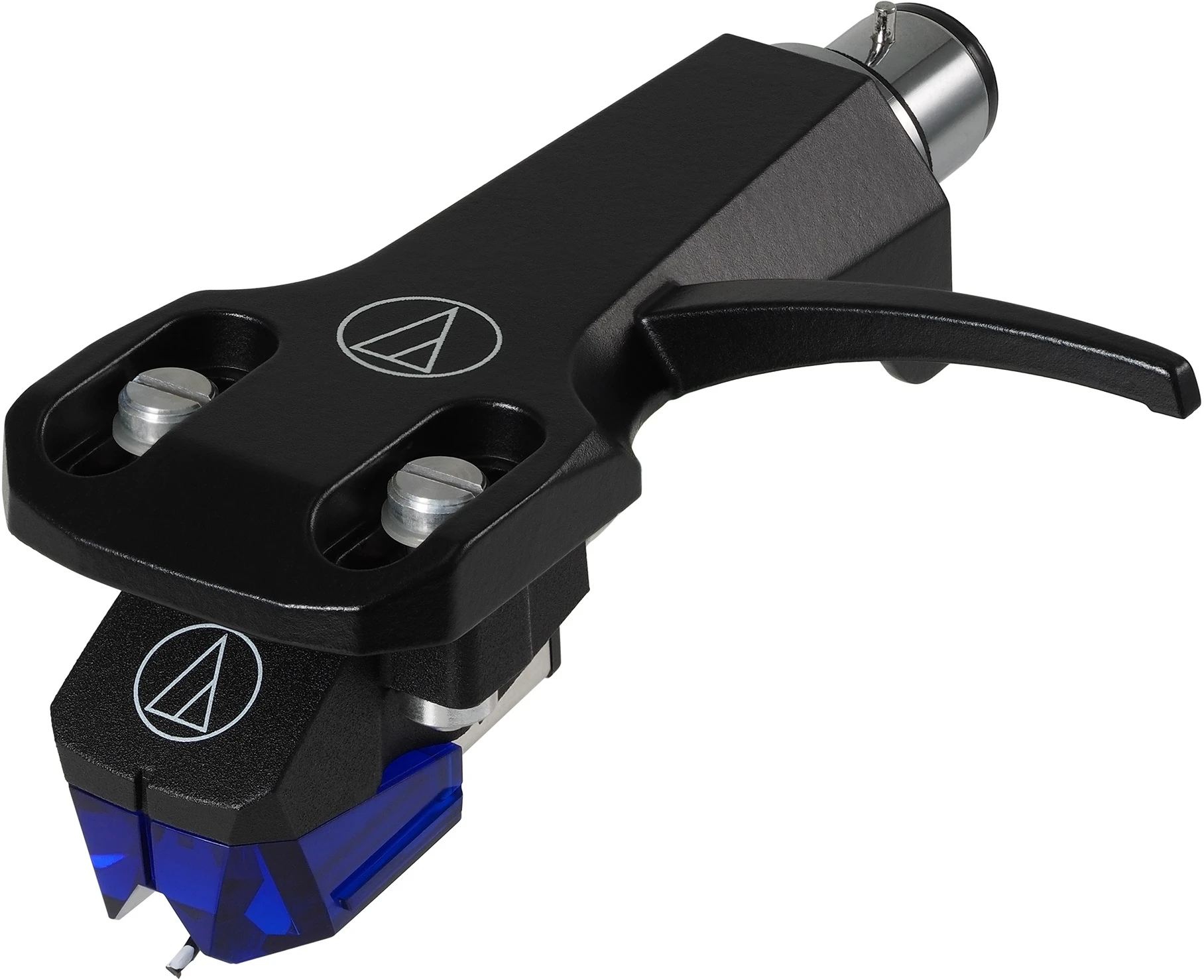

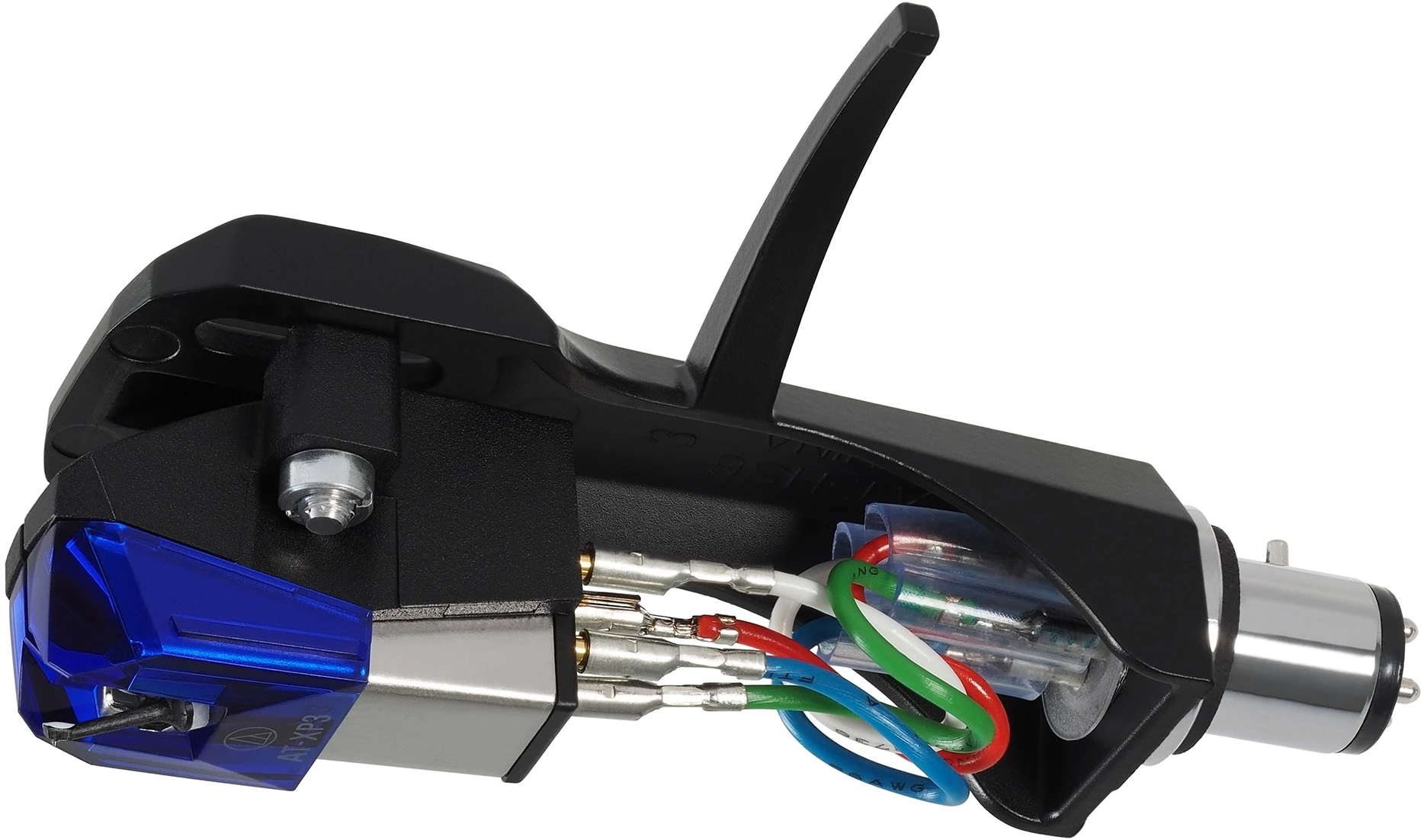

Audio-Technica AT-XP3/H Headshell And DJ Cartridge Combo Kit

The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge
premounted on the AT-HS6BK headshell.

• 0.6
  mil conical bonded stylus tip

• Highly-rigid
  polyphenylene sulfide (PPS)/glass fiber body

• 5.5 mV
  high-level output

• Tracking
  force of 2.0 to 4.0 grams (3.0 grams standard)

• Durable
  carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure
  precise tracking

• Design
  offers maximum visibility of the stylus tip

• Great
  tracking and channel separation for high-fidelity sound

• AT-XP3
  cartridge is compatible with any XP or VM95 Series replacement stylus,
  offering a wide choice of options for every budget and application

• Universal
  ½”-mount headshell for 4-pin turntable cartridges

Frequency Response	20-18,000 Hz
Channel Separation	20 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	2.0-4.0 g (3.0 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	6.7 k ohms (1 kHz)
Recommended load capacitance	100 to 200 pF
Output	5.5 mV (1 kHz, 5 cm/sec.)
Channel Balance	2.0 dB (1 kHz)
Stylus Shape	0.6 mil conical
Cantilever	Carbon fiber-reinforced ABS
Mount	Half-inch
Weight	cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
Dimensions	cartridge 17.2 mm (0.68″) H × 17.8 mm (0.67″) W × 28.3 mm (1.20″) D; cartridge and headshell 21.2 mm (0.83″) H × 21.4 mm (0.84″) W × 62.4 mm (2.46″) D
Replacement Stylus	ATN-XP3
Accessories Included	Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
