Audio-Technica AT-LPW30BKR Fully Manual Belt-Drive Turntable (Black)

AT-LPW30BK

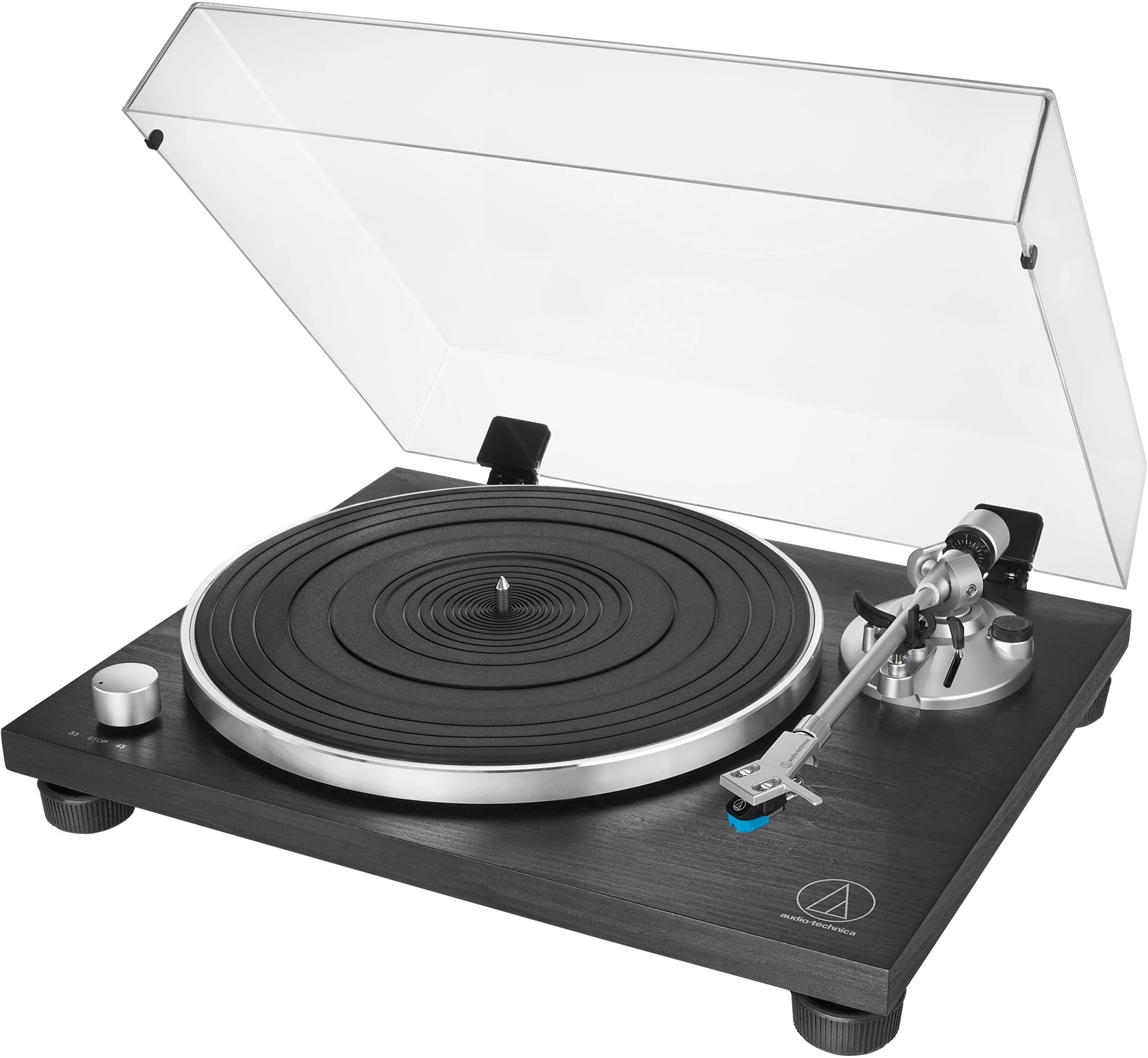

The AT-LPW30 is a fully manual, belt-drive turntable
designed to give you optimal high-fidelity audio reproduction from vinyl. The
two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing
anti-resonance MDF (medium density fiberboard) plinth with black wood veneer to
limit low-frequency acoustical feedback.

The turntable includes a straight aluminum tonearm with
adjustable tracking force and an AT-HS4 universal ½”-mount headshell with
an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a
leader in phono cartridge design for more than 60 years, and that expertise
shows in the versatile, high-performance AT-VM95C cartridge, which comes with a
0.6 mil conical stylus, but is also compatible with any VM95 Series replacement
stylus, offering a wide choice of options for every budget and application.

The AT-LPW30 is equipped with a built-in selectable phono
preamp and a detachable dual RCA output cable to enable direct connection to
components with or without a dedicated phono input.

Optimal High-Fidelity Audio Reproduction

Stylish Wood Turntable

A stunning addition to any system, the AT-LPW30 features an
anti-resonance plinth with black wood veneer to limit low-frequency acoustic
feedback.

Plays 33-1/3 and 45 RPM Records

Built-in Switchable Phono Pre-Amplifier

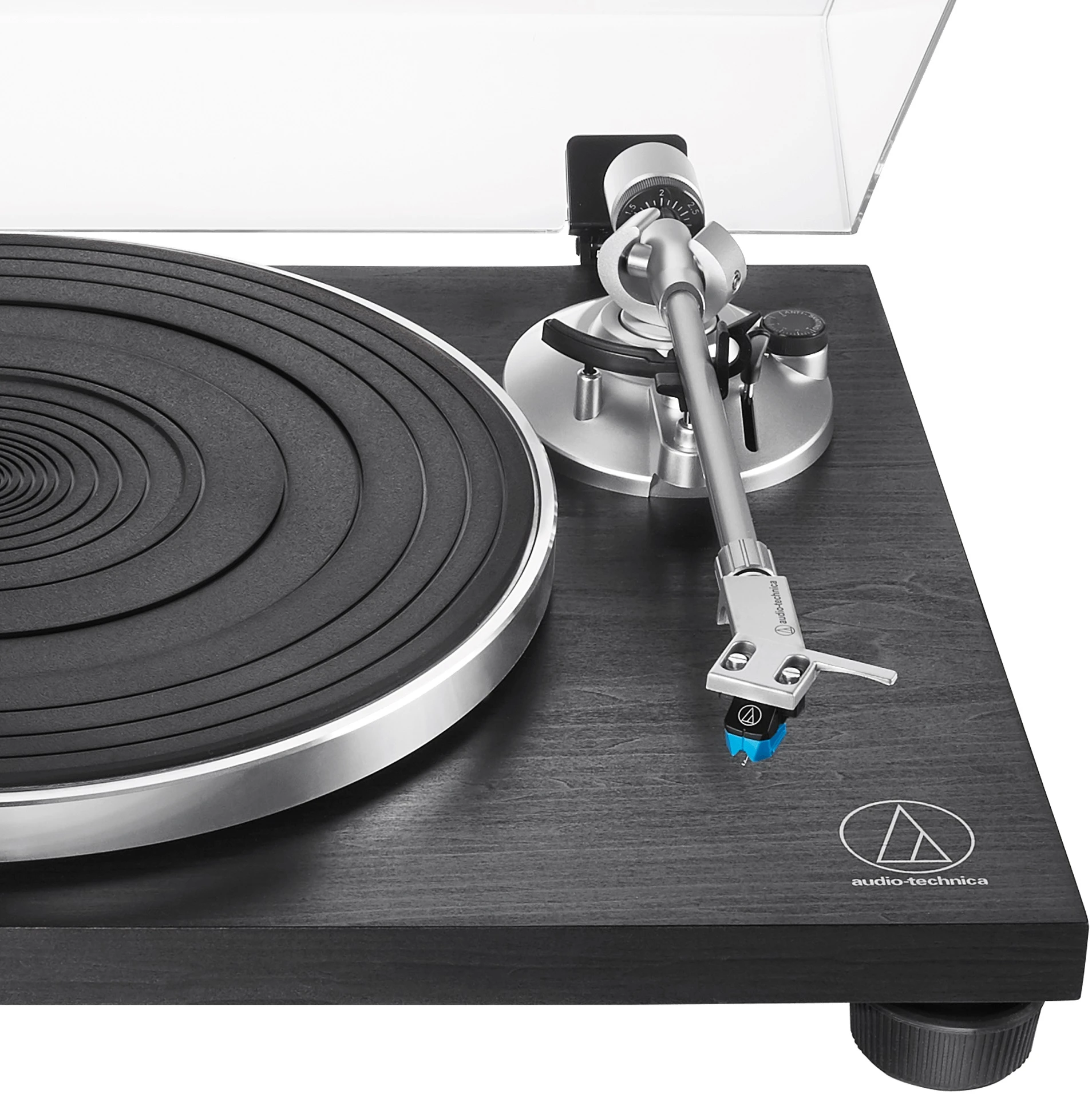

Straight Aluminum Tonearm

AT-VM95C Dual Magnet™ Phono Cartridge

Sophisticated Styling

Audio Aesthetics

The LPW30 was designed to give you optimal high-fidelity
audio reproduction from vinyl, with sophisticated styling.

Cartridge Assembly Line Circa 1962

Over 60 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and
manufacturing high-performance phono cartridges. That half-century’s worth of
analog expertise goes into every turntable we produce, ensuring you get the
best listening experience from your vinyl.

Features

• Fully
  manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM

• Fully
  manual operation

• Adjustable
  dynamic anti-skate control

• Professional
  anti-resonance, die-cast aluminum platter with rubber mat

• AT-HS4
  universal ½”-mount headshell and AT-VM95C Dual Moving Magnet phono
  cartridge with 0.6 mil conical stylus

• AT-VM95C
  cartridge is compatible with any VM95 Series replacement stylus, offering
  a wide choice of options for every budget and application

• Straight
  tonearm with hydraulically damped lift control and lockable rest

• Anti-resonance
  MDF (medium density fiberboard) plinth with black wood veneer

• Built-in
  switchable phono pre-amplifier for phono or line-level output

• AC
  adapter handles AC/DC conversion outside of the chassis, reducing noise in
  the signal chain

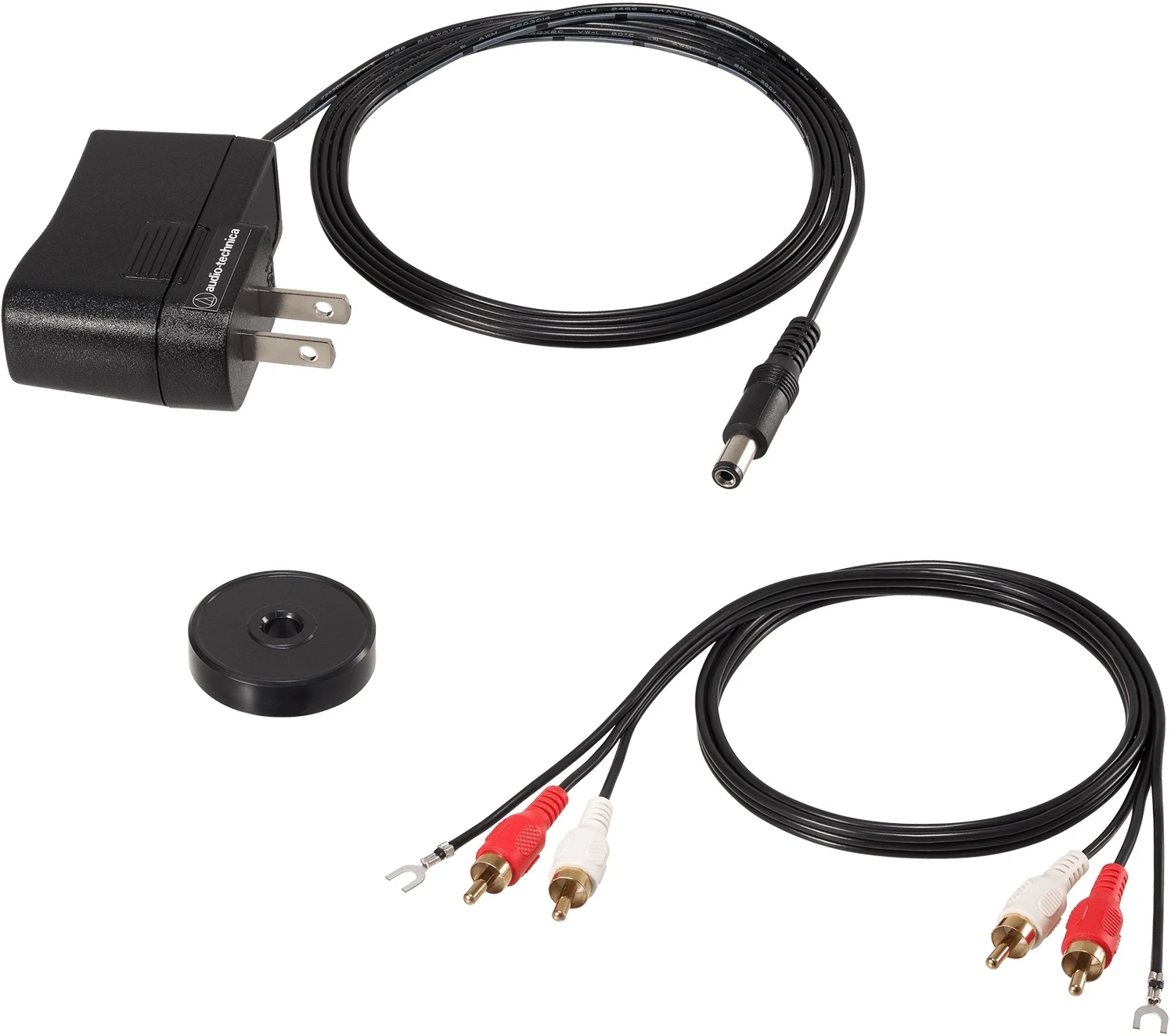

• Includes
  dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber
  mat, and removable hinged dust cover

Specifications

Turntable
Type	2-speed, fully manual operation
Motor	DC servo motor
Drive Method	Belt-drive
Speeds	331/3 RPM, 45 RPM
Turntable Platter	Die-cast aluminum
Wow and Flutter	< 0.15% WRMS (33RPM) at 3kHz
Signal-to-Noise Ratio	> 60dB
Output Level	Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec
Phono Pre-Amp Gain	35 dB nominal, RIAA equalized
Power Supply Requirements	100 to 240V, 50/60Hz
Dimensions	116.9 x 420.0 x 340.0 (H x W x Dmm)
Weight	5 kg
Accessories Included	AT-HS4SV Headshell AT-VM95C Dual Moving Magnet Cartridge with Conical Stylus Detachable RCA output cable (dual RCA male to dual RCA male) AC adapter 45 RPM adapter Counterweight Rubber mat Removable hinged dust cover
AC Adapter	12 V, 0.5 A
Tonearm Type	Static balanced straight aluminum pipe tonearm
Effective Arm Length	223.6 mm
Overhang	18.6 mm
Tracking Error Angle	<2 degrees
Applicable Cartridge Weight	12-17 g
Replacement Stylus	AT-VMN95C
Notes	Stylus pressure adjustment range: 0-3 g
