Technics SC-C70MK2 OTTAVA F Premium All-In-One Music System

Remastered Sound Quality.

Expansive and Rich Soundscape.

Newly Developed Speaker Units & Acoustic Lens

The 8-cm woofer unit offers significantly better basic
characteristics as a result of various improvements made, such as the reduced
weight of the voice coil, enhanced airflow and increased rigidity of the
diaphragm. The woofer provides superb response and sound clarity to reproduce
mid- and high-frequency sound comfortable to the ear. The high-res-ready 2-cm
dome tweeter unit features a lighter silk diaphragm to provide beautiful
lingering sound. What’s more, the acoustic lens is optimized for the new
tweeter shape and enhances the expansiveness of reproduced sound.

3 JENO Engines

In order to faithfully reproduce the information of rich
sounds with the 2.1ch configuration, three “JENO Engine” full digital amplifier
units have been equipped. In addition to utilizing the excellent processing
capacity of the three units and faithfully driving the left and right channels
and subwoofer, “Space Tune”, which optimizes the sound quality depending on the
installation status, has been realized.

Realizes an Optimal Sound Space According to the
Environment of the Room and Installation Location

Space Tune™

The SC-C70MK2 features Space Tune™ Auto to achieve optimally
balanced sound easily with the press of a button. This function measures test
tones played through a mic that is built into the SC-C70MK2 to analyze the
distance to walls and the effect of reflections. It then automatically optimizes
the sound field. In addition, the Space Tune™ function includes 3 presets
(Free, Near the Wall, and Near the Corner) for easy setting, and uses a
Technics Audio Center app to precisely adjust the sound quality to the
listening position.

iOS device calibration is available for more precise
adjustment

Measure room acoustic conditions by using microphone
integrated in iOS devices.

Tune DSP parameters to optimize acoustic performance.

Comfortable Enjoyment of a Greater Range of Music Content
and a Diversity of Connectivity

Multi-room

With a number of Chromecast built-in speakers, the variety
of music streaming services can be played in several rooms, or different music
can be played from room to room*. In addition, if you use Technics Audio Center
app and have another app compatible Technics devices, you can also enjoy other
music source in multi-room such as Bluetooth, AUX, Optical input, USB, Internet
radio and also OTTAVA™ f SC-C70MK2 compatible streaming music. * The Google
Home App is required.

Complete Compatibility

In addition to CDs and radio, this model is newly compatible
with Chromecast built-in, and supports a wide range of music streaming
services. Furthermore, it is also compatible with Spotify Connect, Deezer and
Internet radio. It is also compatible AirPlay 2, Bluetooth Wi-Fi, network
playback, USB memory playback and analogue/optical input to allow you to enjoy
various sound sources with one unit. The UI of our iOS/Android smartphone app,
“Technics Audio Center App” has also been redesigned, making it easier to use
than ever before.

Favorite Function

Up to 9 presets can be set on the main unit, such as favorite
internet radio stations, a DEEZER playlist, and USB songs. This makes it
possible to listen to your favorite music without even starting up an app.

Functional beauty that has been further refined

Following the elegant design of the previous C70 by
combining high sound quality and a sophisticated design. The C70MK2 features a
dark silver color to create an even more refined design. Furthermore, an
all-black variation has been added. The more you use it, the more your
enjoyment of experiencing music will deepen.

Accurate Digital Technology
JENO Engine (Jitter Elimination and Noise-shaping
Optimization)

Load Adaptive Phase Calibration (w/o Calibration function)

Space Tune

Twin Power Supply Circuit System

Re-master

Noiseless Signal Technology
Twin Power Supply Circuit System

Optimally Activated Circuit System

CD High-Res Re-master

Emotive Acoustic Technology
Acoustic Lens and Louver

Dual bass reflex port

Output Power
Front speaker: 30 W + 30 W (1 kHz, T.H.D. 1.0 %, 6Ω, 20 kHz
LPF)

Subwoofer : 40 W (70 Hz, T.H.D. 1.0 %, 4Ω, 20 kHz LPF)

Speaker Unit
Woofer : 8 cm Cone Type x2 / Tweeter: 2 cm Dome Type x 2 /
Subwoofer: 12 cm Cone Type

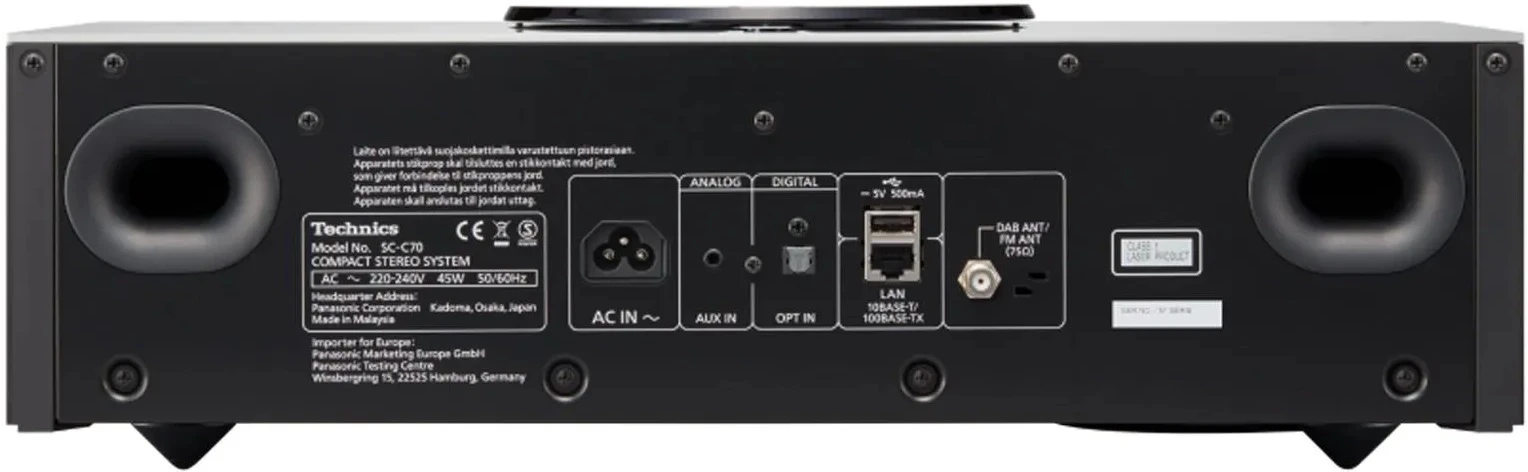

Analogue Input Terminal
AUX IN x1 (φ3.5mm) (1/8 inch)

Digital Input Terminal
Optical Digital x1, USB-A

Headphone Output
Yes (Ø3.5 mm) (1/8 inch)

Disc Compatibility
Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on
recording devices)

USB-A

iPod/iPhone/iPad
No

Support Codec
WAV Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24, 32 bit)
FLAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24 bit)
DSD Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
AIFF Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24, 32 bit)
ALAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24 bit)
AAC Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
MP3Yes (32, 44.1, 48 kHz / 16-320 kbps)

DLNA Support Codec
WAV Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24, 32 bit)
FLAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24 bit)
DSD Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
AIFF Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24, 32 bit)
ALAC Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
/ 16, 24 bit)
AAC Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
MP3 Yes (32, 44.1, 48 kHz / 16-320 kbps)

Ethernet Interface
LAN (100 Base-TX/10 Base-T)

Wi-Fi
IEEE 802.11 a/b/g/n/ac

2.4 GHz / 5 GHz Band

Chromecast built-in
Yes

Works with Google Assistant
Yes

AirPlay 2
Yes

Bluetooth® (Support codec)
Yes (AAC, SBC)

TIDAL / vTuner / Spotify
Yes* / Yes* / Yes*

Tuner
DAB/DAB+/FM

Power Supply
AC 120 V, 60 Hz

Power Consumption
45 W

Dimensions (W x H x D)
450 x 143 x 280 mm

17-23/32 x 5-5/8 x 11-1/32 inch

Weight
Approx. 8.0kg

Approx. 17.6 lbs.

Accessories
Remote Control, AC Cord, DAB Indoor Antenna 、Batteries
for Remote Control
