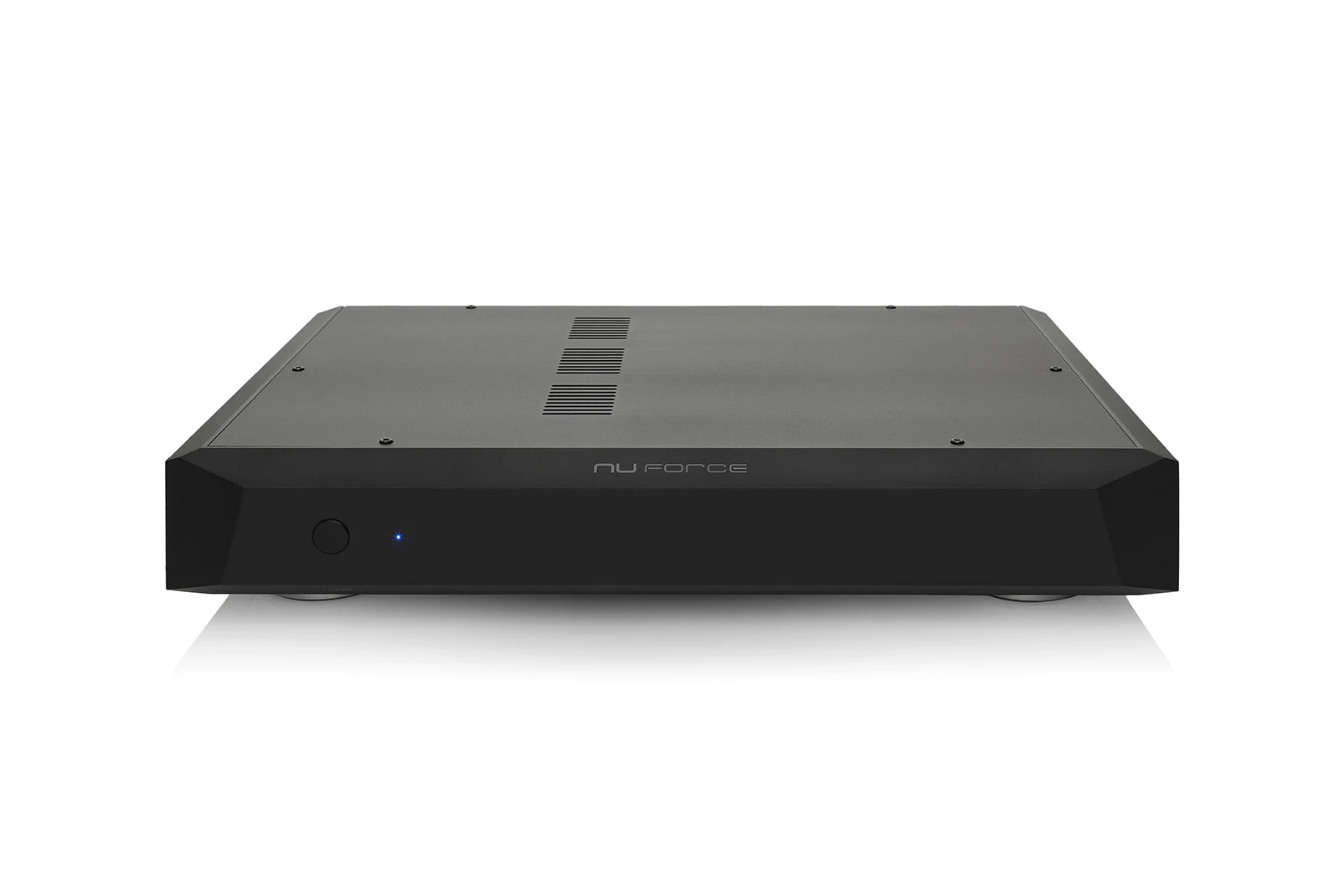

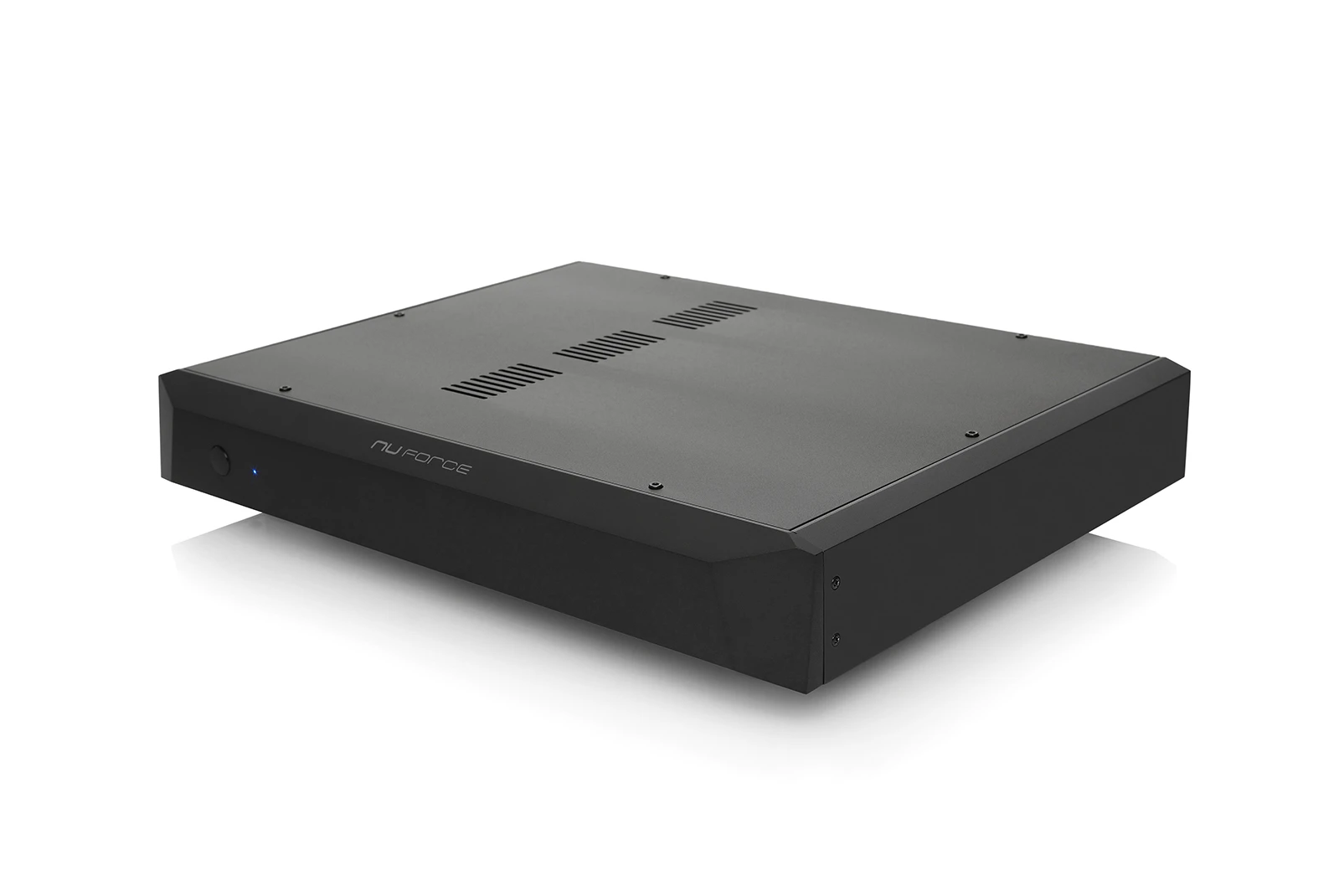

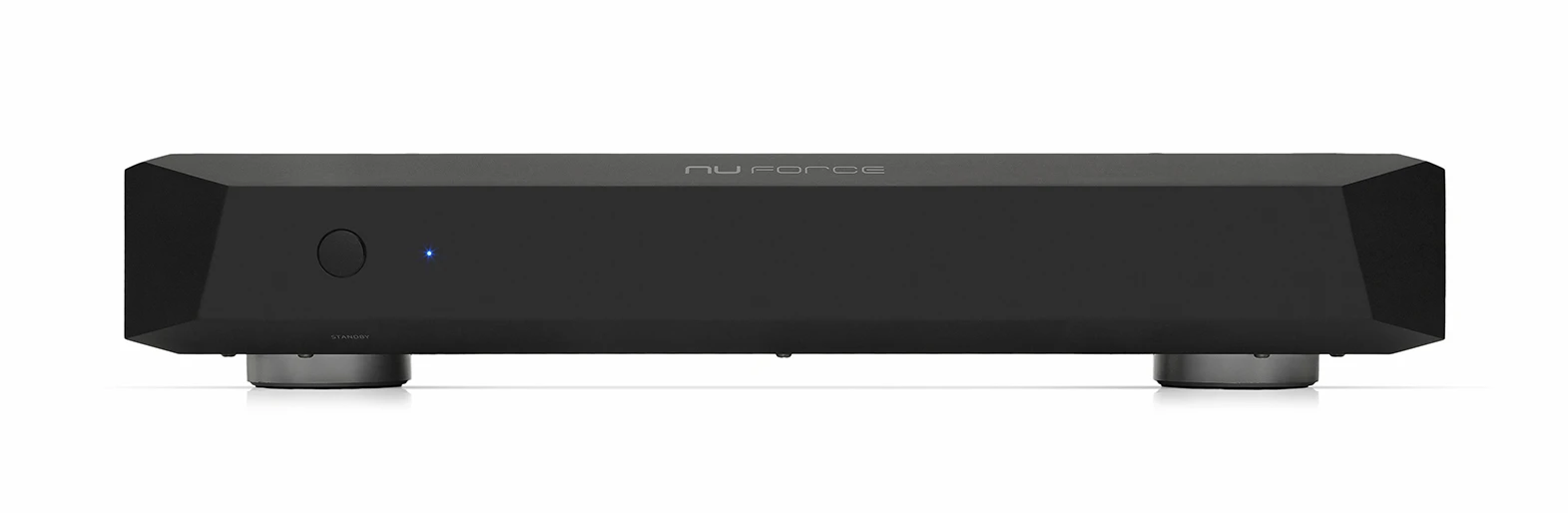

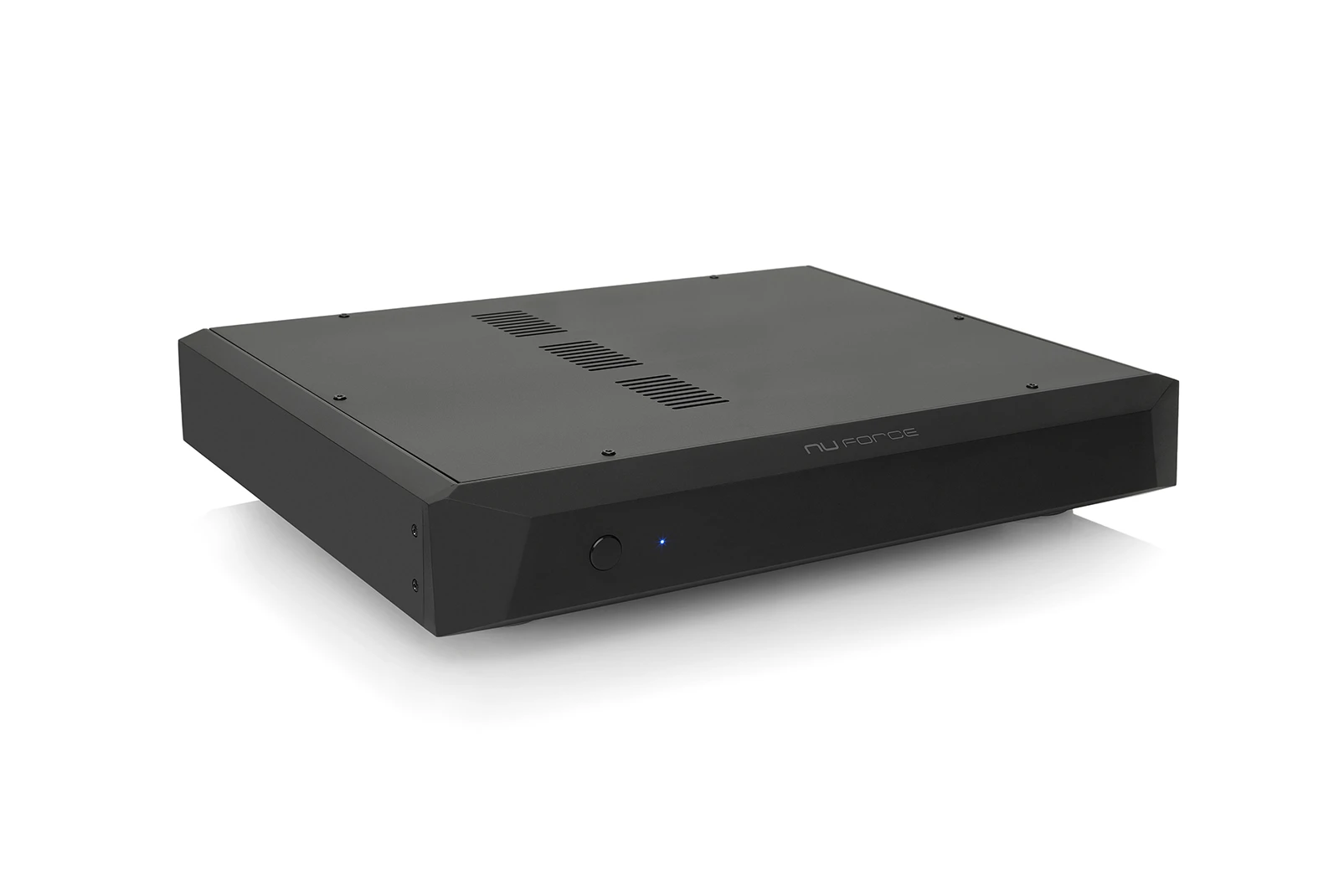

NuForce MCA18 Audiophile Multi Channel Amp

Audiophile multi
channel amp

The MCA20 and MCA18 multi-channel amplifier offers the audio
enthusiast eight channels of premium NuForce sound. Developed as an
audiophile-grade alternative to the plethora of consumer-grade amps being
offered for Home Cinema applications the MCA20 and MCA18 redresses the balance
for those serious about Home Cinema audio quality.

Features

Premium NuForce amplification

Ideal partner for the AVP18 digital AV preamp

110 Watts per channel (4 Ohms)

Total 880 Watts of power

Serious sound

The MCA18 multi-channel amplifier offers the audio
enthusiast eight channels of premium NuForce sound. Developed as an
audiophile-grade alternative to the plethora of consumer-grade amps being
offered for home Cinema applications, the MCA18 redresses the balance for those
serious about Home Cinema audio quality.

Power and heritage

Designed with the legendary NuForce amplifier heritage and
capable of delivering 110 Watts (4 Ohms) to each speaker, the MCA18 will render
your movie soundtracks with astounding accuracy. A remarkable combined 880
Watts ensures effortless power delivery to handle the explosive dynamics and
the quietest of details.

Tech info

Utilising high efficiency switching circuitry, a proprietary
negative feedback circuit forms the cornerstone of the MCA18’s remarkable
sound. A self-resonant design, the 400 kHz PWM high frequency switching
constantly adjusts to the input signal, output current demands, and loudspeaker
impedance variations, resulting in superb speed and accuracy.

General
Power output
“110W x 8Ch @ 4 Ohm 55W x 8Ch @ 8 Ohm”
Peak power output
“150W x 8Ch @ 4 Ohm 80W x 8Ch @ 8 Ohm”
Input impedance
25k Ohm
Output impedance
2.2K ohm
Gain
23 dB
Frequency response
10Hz – 50kHz
Sensitivity
0.89 V to rated power
Signal to noise ratio
> 91 dB
Total harmonic distortion
0.01%
Power supply
“110V FOR US VERSION, 100V FOR JP VERSION, 220V FOR CN
VERSION, 230V FOR EU VERSION”
Power consumption
1.6 Watts
Output voltage
0dB, 1kHz: RCA 4.0Vrms
Nominal input level
1.38V

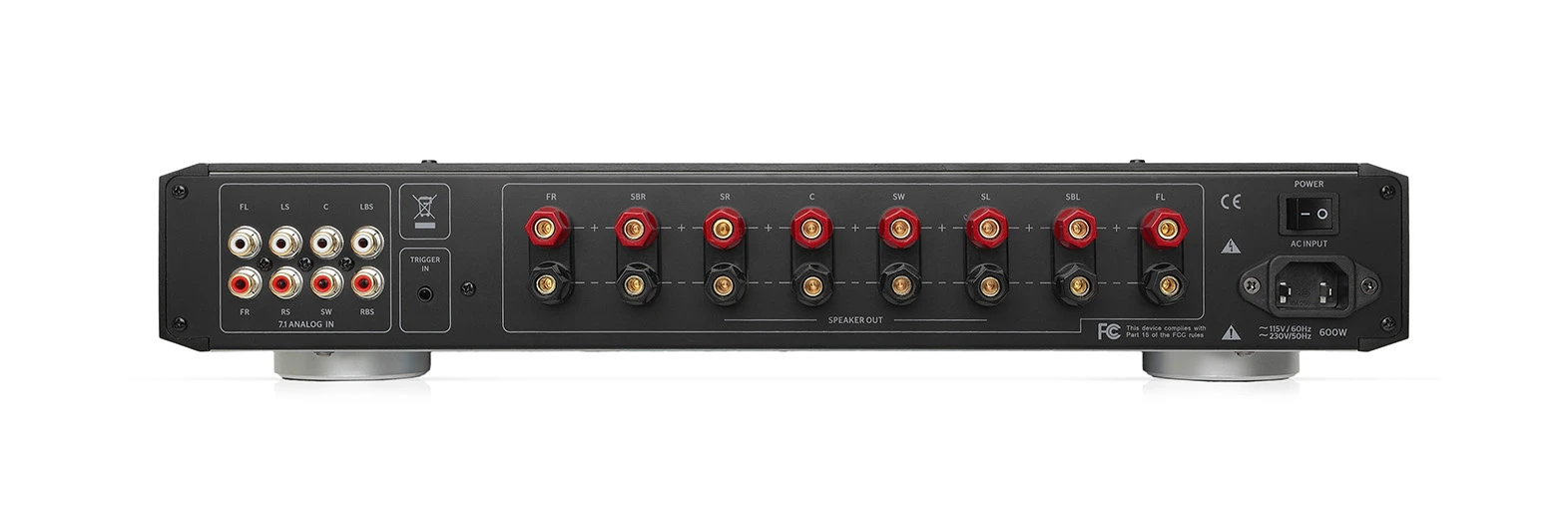

Connections input
8 x RCA
Connections output
8 x Four-way binding posts
Connections control
RS232
Weight and dimensions
Weight
14lb 12.3oz
Dimensions (W x H x D) (mm)
432 x 80 x 341
In the box
Standard accessories
1x 1m power cord Basic user’s manual
