Musical Fidelity M6X 250.5 5-Channel Class A/B Power Amplifier (Black)

M6X 250.5 | POWER AMPLIFIER

The M6x 250.5 is a 5 channel class A/B power amplifier.

You listen to CDs or stream music without picture, but have
you ever watched a movie without sound? The sound of a movie carries a
significant part to deliver emotions and tell stories. Silence is as important
as bombastic loudness. Sound designers use sound effects, foleys and music to
enhance your experience. A soundbar can never reproduce a real cinema feeling.
The M6x 250.5 will take your home cinema to the next level.

The Full Cinematic Experience

For many people, the cinema is just a place with a big
screen and expensive snacks – but there is more, which is usually not visible
at all: The surround-sound-system. It all started with a simple three speaker
setup in the 1980s and evolved to object based systems with up to 20 speakers.
With the new M6x 250.5 you can easily create a powerful 5.1 home cinema setup
(your active subwoofer is powered separately). You can connect your preamplifier/AV
processor with either RCA or fully balanced XLR cables. The XLR connection
furthermore enhances the sound quality and keeps the signal transmission clean.

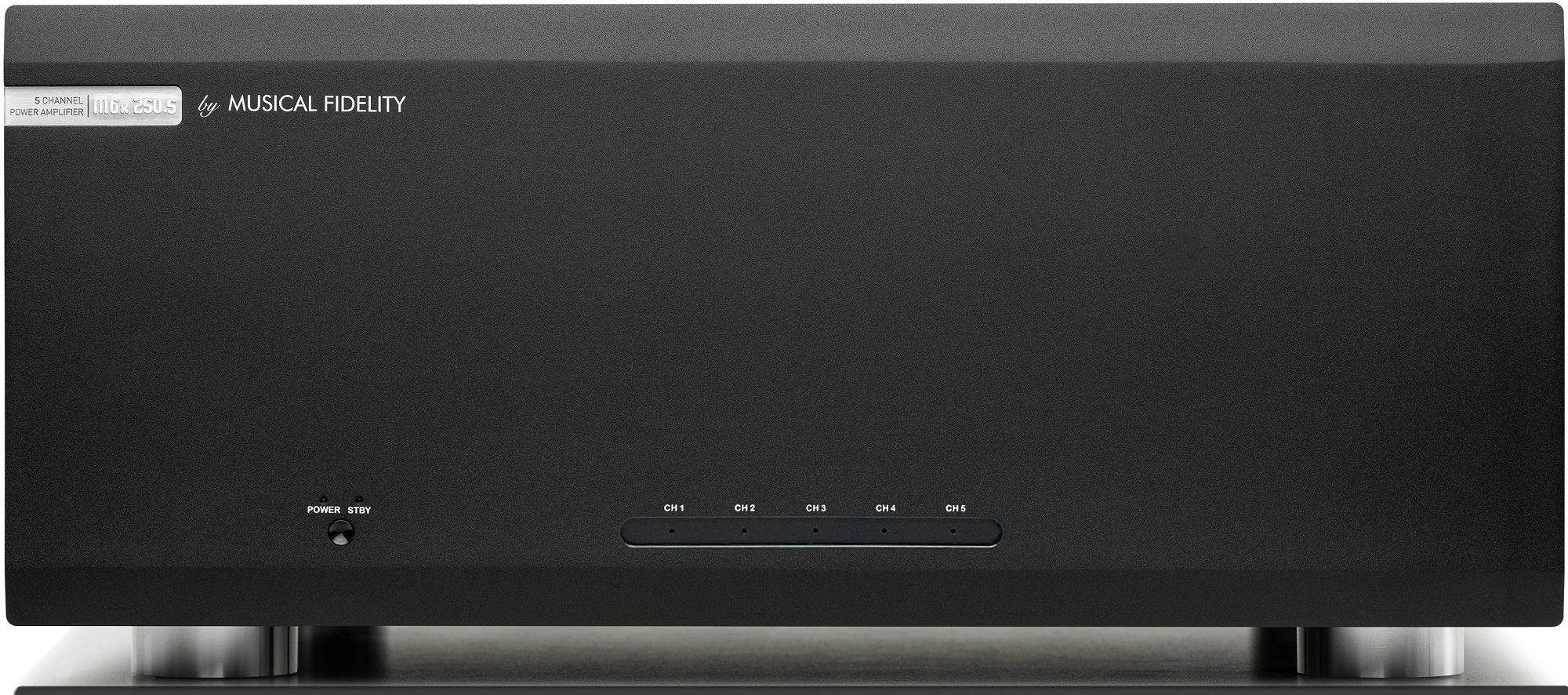

The Musical Fidelity M6x 250.5 will not only satisfy you
with its sound quality, but also with the high quality metalwork and overall
clean look. The front panel, in either black or silver finish, is a custom-made
fine line aluminum extrusion.

Connection

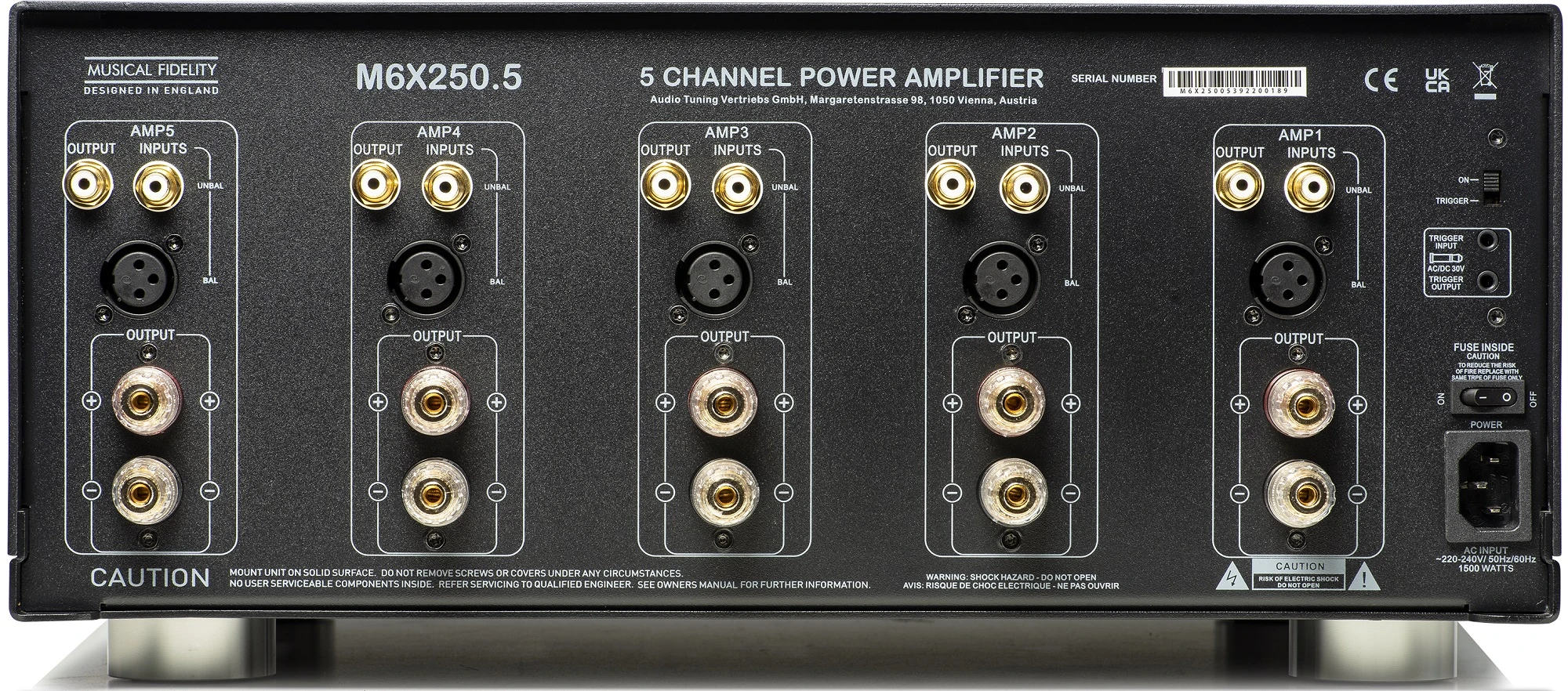

The M6x 250.5 offers a gold-plated RCA and a balanced XLR
input per channel. If you have XLR outputs on your preamp, we always recommend
using a balanced connection. This kind of signal transmission leads to
increased dynamics, less noise and improved signal-to-noise ratios. If you need
the same signal on multiple inputs for e.g., bi-amping, you can use the
gold-plated RCA through output and distribute the signal to the next input. The
gold-plated isolated speaker output terminals accept 4 mm Banana plugs, spades
connectors or naked wire. The trigger in-/output allows you to turn the device
on/off via other components.

Power

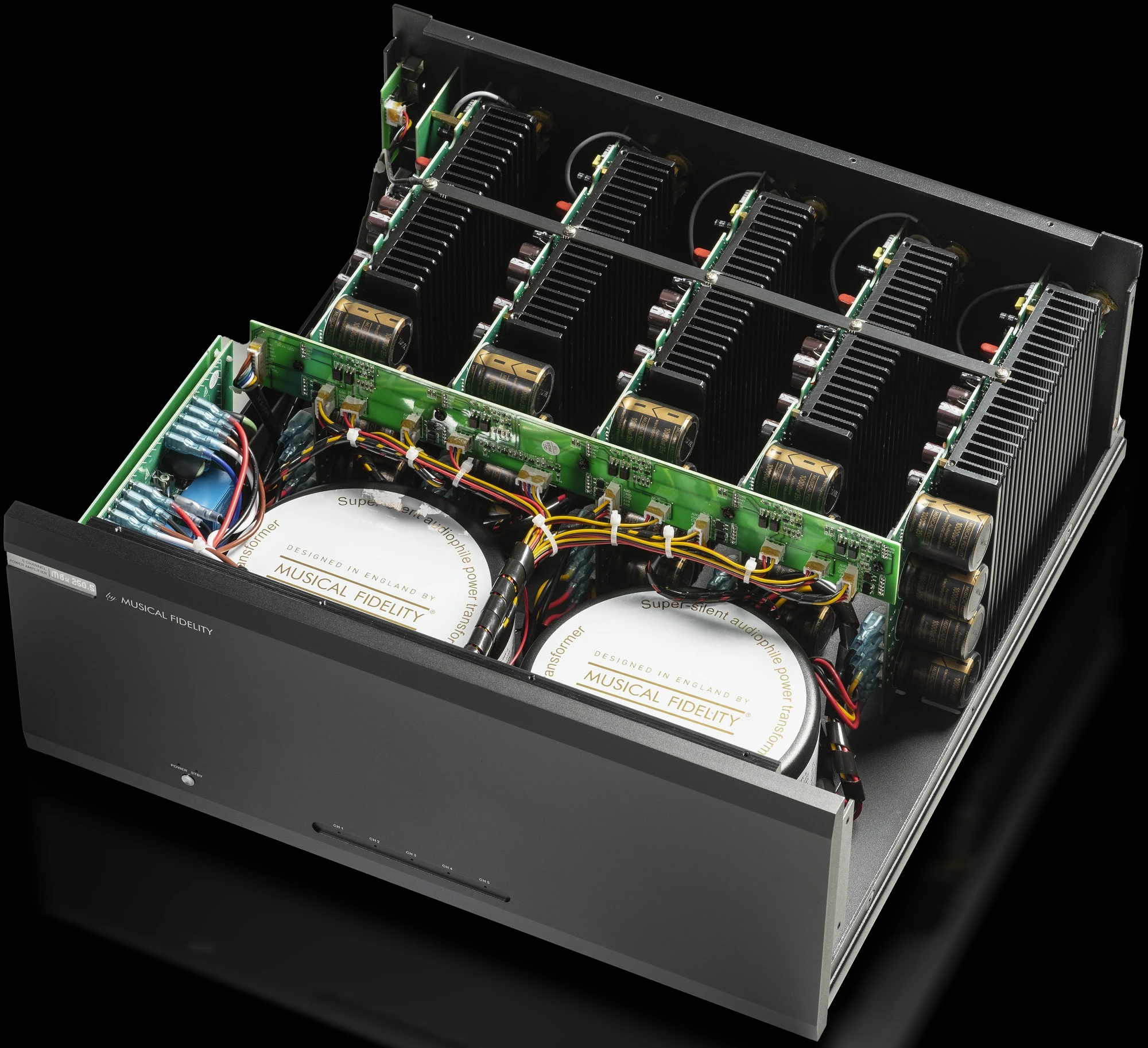

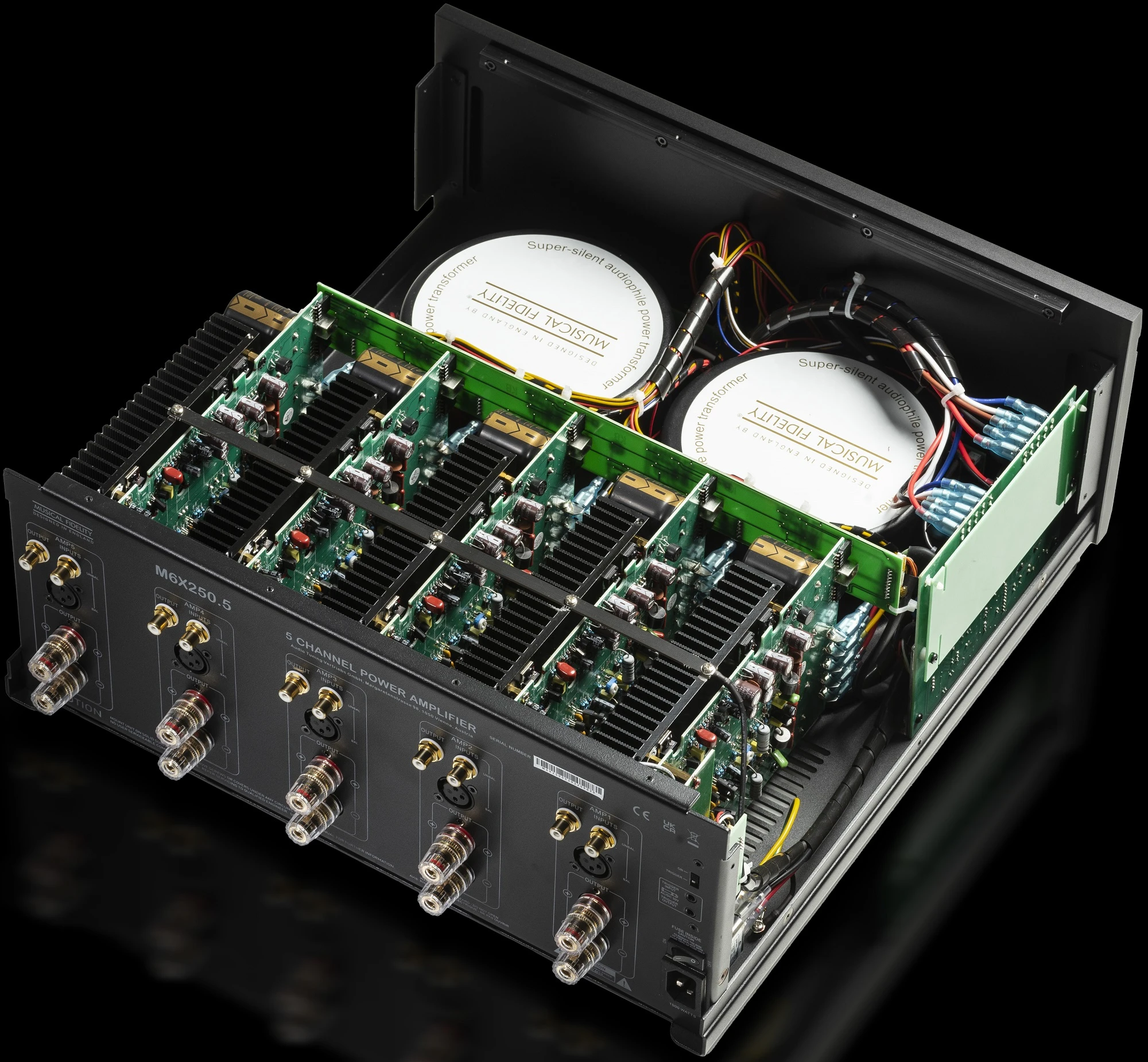

Our new multichannel amplifier is built modular with one
250W class A/B amplifier stage per channel. We designed our amplifier to sound
highly natural by keeping all transients and micro information. The super
silent audiophile power transformer distributes clean power, which results in a
high dynamic range and a detailed sound stage. This is a major feature for a
home cinema amplifier. The M6x 250.5 is able to preserve all the details and
emotion, no matter which volume. Due to the sophisticated heat sink design, the
M6x 250.5 does not need a fan to keep the amplifier cool. Despite its big
power, you will never hear any fan noise coming from the amp.

M6x 250.5 In Brief

• 250
  watts per channel for each of its 5 channels

• Excellent
  technical Musical Fidelity performance finally available for home theater
  enthusiasts

• Amazing
  load driving ability, unconditional stability will drive any loudspeaker

• RCA
  and balanced XLR inputs

• Through
  Out for bi-amping

• Trigger
  In/Out for seamless home theater integration

• Complete
  silent operation, no active cooling elements

• Excellent,
  massive and clean build quality

M6x 250.5 – Specifications

Output

• Power:
  5x 250W/4 ohms (Peak: 400W)

• THD+N:
  0,003% at 100W power output

• Frequency
  Response: 20Hz – 20kHz for 0,5dB

• SNR:
  105dB at 1kHz at 200W power output

• Damping
  Factor: >300

• Crosstalk
  20Hz – 20kHz: >80dB

Connections

• 5x
  line level RCA input

• 5x
  line level balanced XLR input

• 5x
  line level RCA through output

• 5x
  pair speaker terminals

• 1x
  Trigger input & output

Input Sensitivity

• 700mV
  at RCA input, 1,4V at XLR input

General Information

• Dimensions
  (WxHxD): 435 x 195 x 430mm

• Main
  voltages: 230V/115V Internally set or 100V optional AC 50/60Hz

• Max.
  Consumption: 1500W, <0.5W in standby

• Weight: 30,5kg (ca. 34kg incl. shipping carton)
