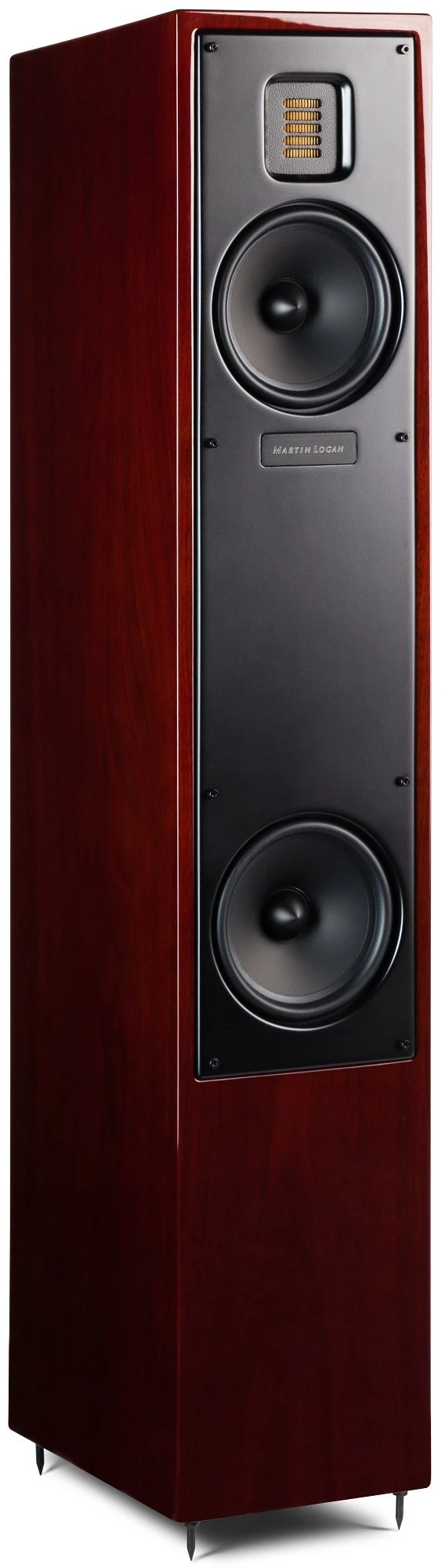

MartinLogan Motion 20 Floorstanding Speaker (Gloss Cherrywood)

Compact floorstanding speaker with a Folded Motion® tweeter,
dual black aluminum woofers with rear-firing bass port, and a luscious
high-gloss finish.



Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan’s
dedicated in-house engineering team started by utilizing and refining the most
advanced, compact technologies and combining them with innovative engineering.
The result is an emotionally engaging sound that rivals (and most times
trounces) traditional loudspeakers of similar size and price.

The Motion 20 is a breathtaking visual statement regardless
of its compact dimensions. Dual 5-1/2″ aluminum cone woofers are paired
with a rear-firing bass port for extra punch in the low frequencies. With the
addition of our Folded Motion tweeter it’s a design that delivers solid
low-frequency reinforcement, superb sound dispersion and precise, highly
dynamic high frequencies.

Folded Motion^® Tweeters

The signature Folded Motion tweeters utilize extremely low
mass diaphragms that “squeeze” air, and require significantly less
excursion than the typical 1-inch dome tweeter, which drastically minimizes
distortion while providing a lightning fast response time. The increased
surface area also provides a wide, yet controlled sound dispersion to create a
realistic and carefully etched sound stage.

Specifications

Specifications are subject to change without notice

Frequency Response	46–25,000 Hz ±3dB
Recommended Amplifier Power	20—200 watts per channel
Horizontal Dispersion	80°
Vertical Dispersion	80°
Sensitivity	90 db/2.83 volts/meter
Impedance	4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency	500 & 2,600 Hz
High Frequency Transducer	1″ × 1.4″ (2.6cm × 3.6cm) Folded Motion Transducer with 5.25″ × 1.75″ (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer	Two 5.5″ (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
Components	Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel

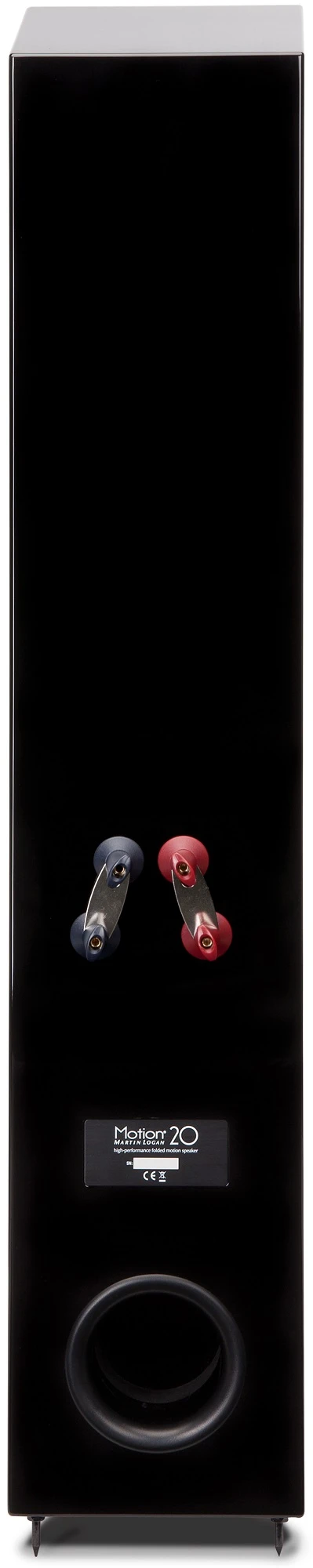

Inputs	Custom 5-way bi-wire tool-less binding posts
Weight	37 lbs. (16.8 kg)
Dimensions	36.6″ x 6.8″ x 11.7 ” (92.9cm x 17.3cm x 29.7cm)
