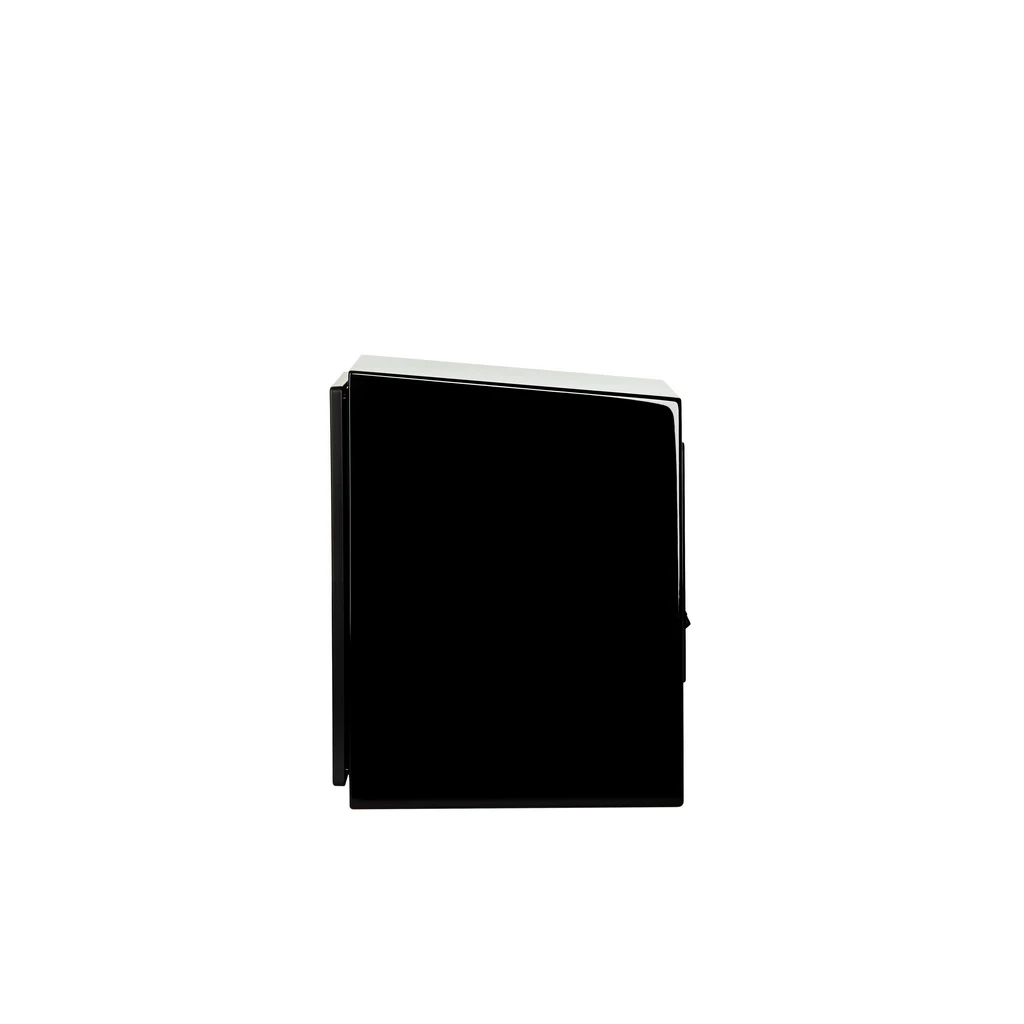

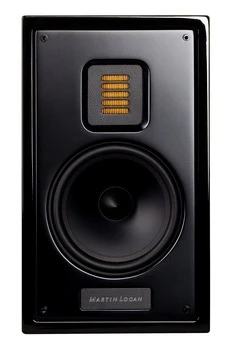

MartinLogan Motion 15 5-1/4″ 2-Way Bookshelf Speaker (Black)

Bookshelf speaker with a Folded Motion® tweeter and luscious
high-gloss finishes. Voice-matched with MartinLogan ESL speakers.

Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan’s
dedicated in-house engineering team started by utilizing and refining the most
advanced, compact technologies and combining them with innovative engineering.
The result is an emotionally engaging sound that rivals (and most times
trounces) traditional loudspeakers of similar size and price.

Folded Motion^® Tweeters

The signature Folded Motion tweeters utilize extremely low
mass diaphragms that “squeeze” air, and require significantly less
excursion than the typical 1-inch dome tweeter, which drastically minimizes
distortion while providing a lightning fast response time. The increased
surface area also provides a wide, yet controlled sound dispersion to create a
realistic and carefully etched sound stage.

High-Gloss Finishes

Motion 15 is available in three luxurious high-gloss
finishes; Piano Black, White or Black Cherrywood. The high-gloss black
cherrywood finish has deep cherry undertones and appears almost black in low
light, giving them a unique and understated elegance that blends into any
environment.

Specifications

Specifications are subject to change without notice

Frequency Response	60–25,000 Hz ±3dB
Recommended Amplifier Power	20—200 watts per channel
Horizontal Dispersion	80°
Vertical Dispersion	80°
Sensitivity	92 dB/2.83 volts/meter
Impedance	5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency	2,700 Hz
High Frequency Transducer	1″ × 1.4″ (2.6cm × 3.6cm) Folded Motion Transducer with 5.25″ × 1.75″ (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer	5.25” (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components	Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

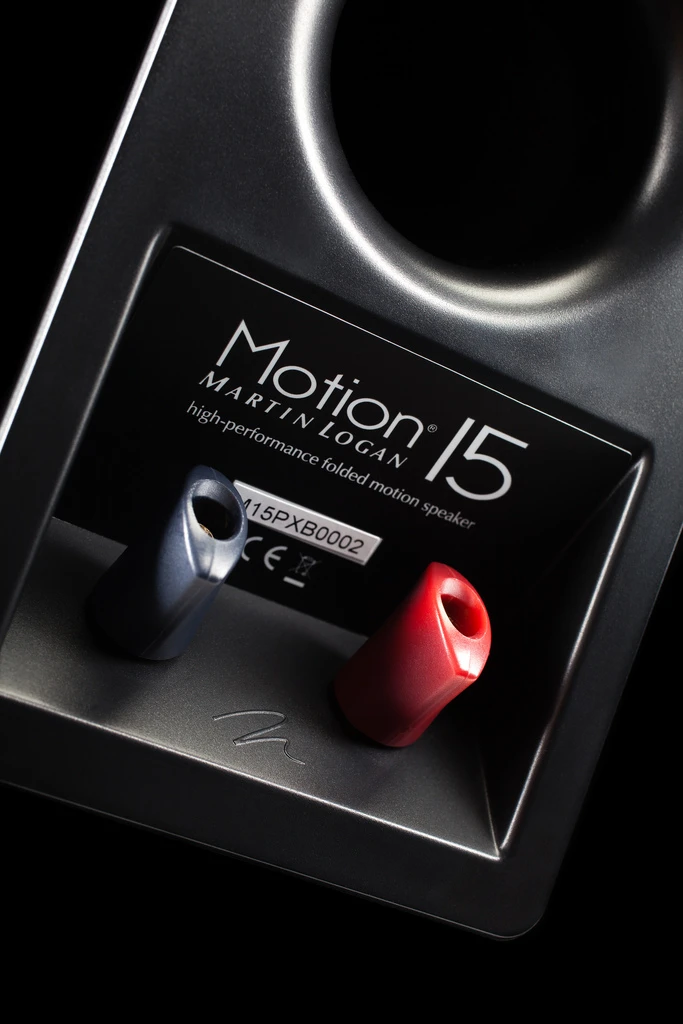

Inputs	Custom 5-way tool-less binding posts
Weight	12 lbs. (5.4 kg)
Dimensions	11.4″ x 6.8″ x 9.5 “ (29cm x 17.3cm x 24cm)
