MartinLogan ML-66i Installer Series In-Wall Speaker (Each)

Titanium dome tweeters and mineral-filled polypropylene

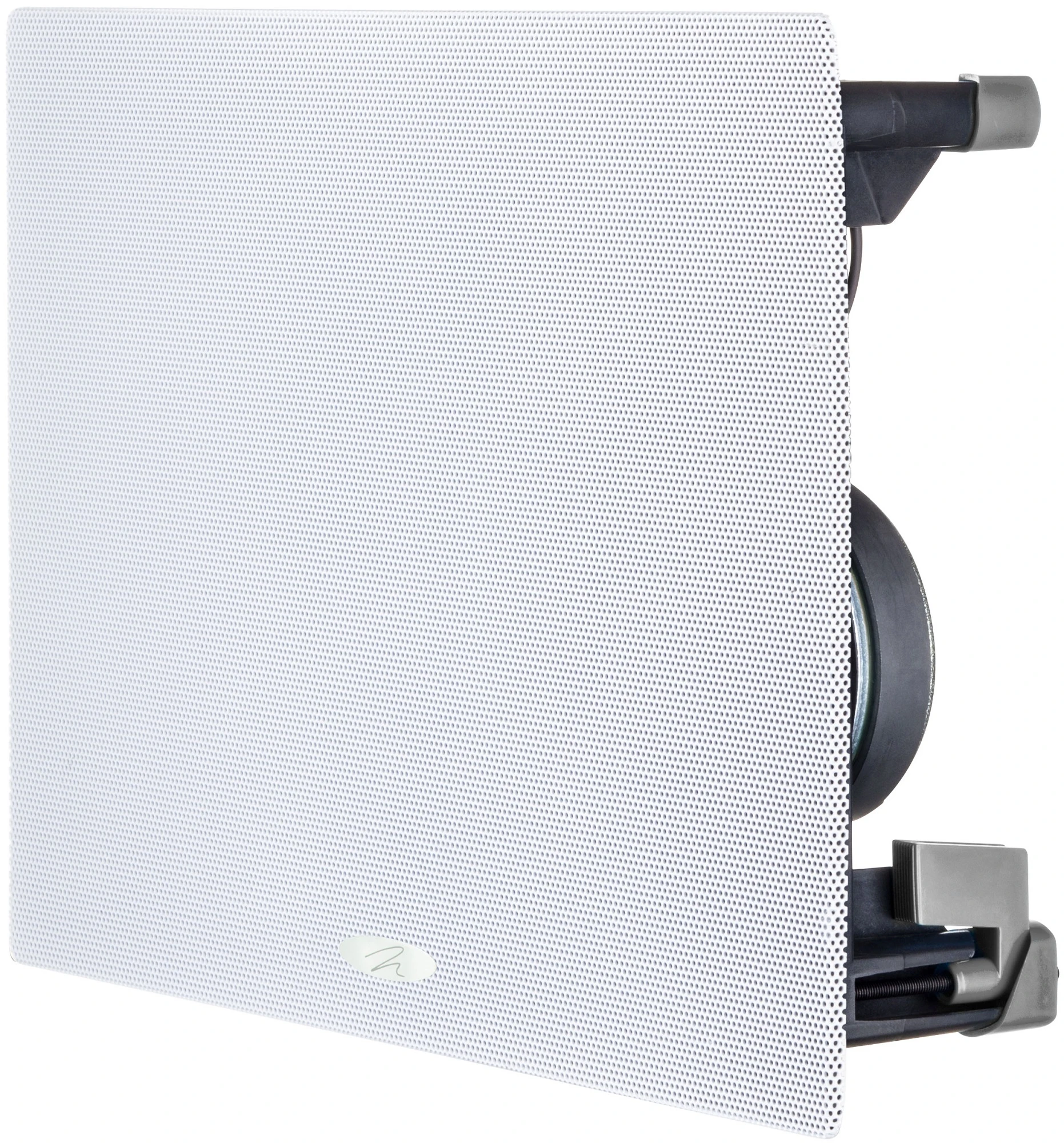

drivers ensure great performance, while bezel-free paintable grilles that are
secured with high-strength magnets provide an aesthetic that blends invisibly
into any room. Each model comes with an extremely robust mounting-lock system
that couples with the speaker’s vibration-resistant ABS chassis when installed.

Affordable High-Performance Solutions

The Installer Series™ by MartinLogan is a line of affordable
high-performance products, featuring custom installation solutions for in-wall,
in-ceiling, and outdoor applications. Manufactured to the highest standards of
quality, these products are available through authorized specialty custom
installation specialists and carry the full MartinLogan warranty.

Specifications

Specifications are subject to change without notice

Frequency Response	75–20,000 Hz ±3dB
Recommended Amplifier Power	20—140 watts per channel
Sensitivity	89 dB/2.83 volts/meter
Impedance	8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency	2500 Hz
High Frequency Transducer	3/4″ (2.5cm) titanium dome
Low Frequency Transducer	Two 5.5” (14cm) mineral-filled polypropylene cones
Inputs	Spring clip accommodates wire up to 12AWG
Weight	5.9 lbs. (2.7 kg)
Dimensions (overall size)	9.3″ x 12.7″ x 3.4 “ (23.7cm x 32.3cm x 8.6cm)
Cut-Out Dimensions	11.625″ x 8.25″  (29.5 cm x 20.9 cm)
Projection From Wall Surface	0.2″ (0.5cm)
Depth Behind Wall Surface	3.2″ (8.1 cm)
