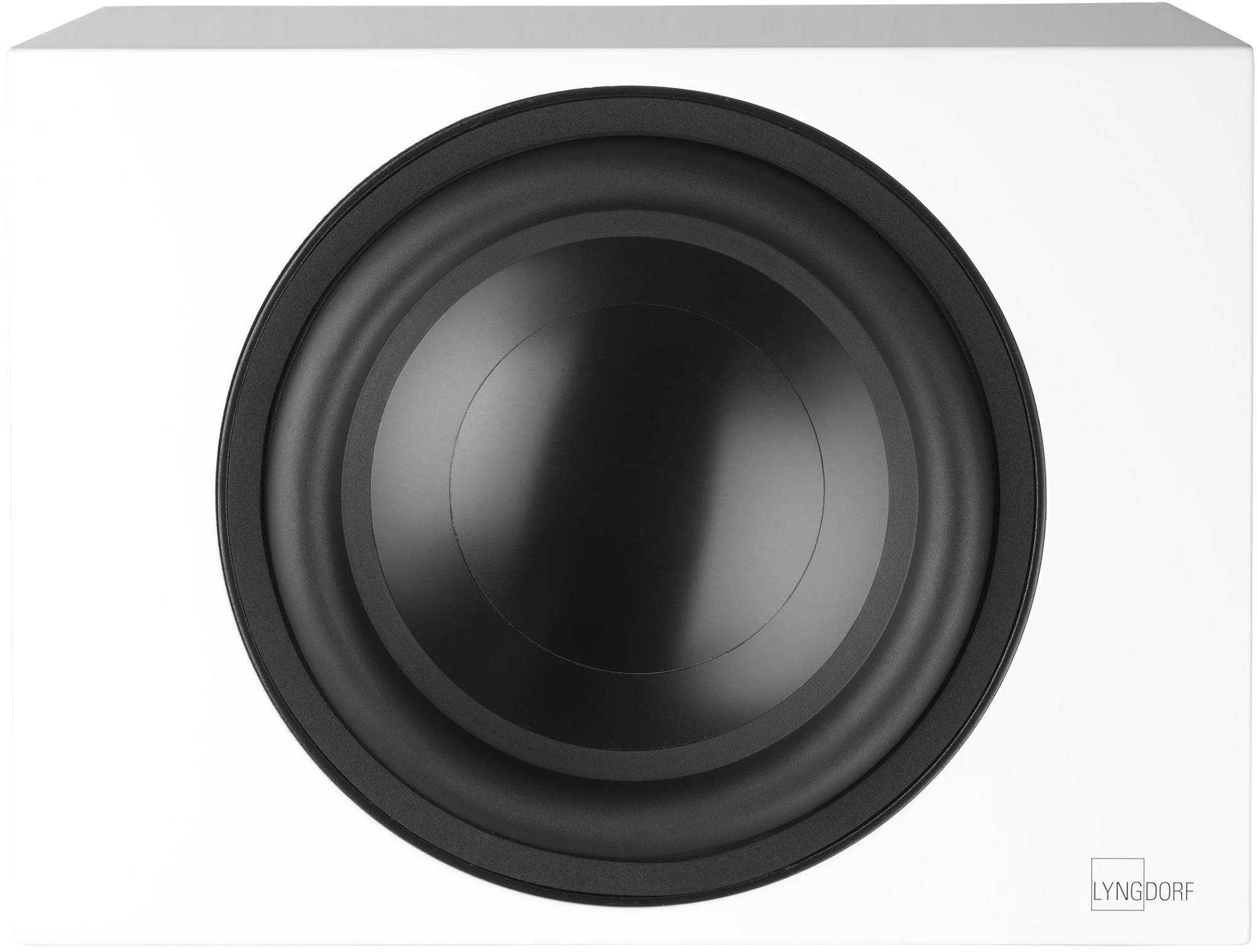

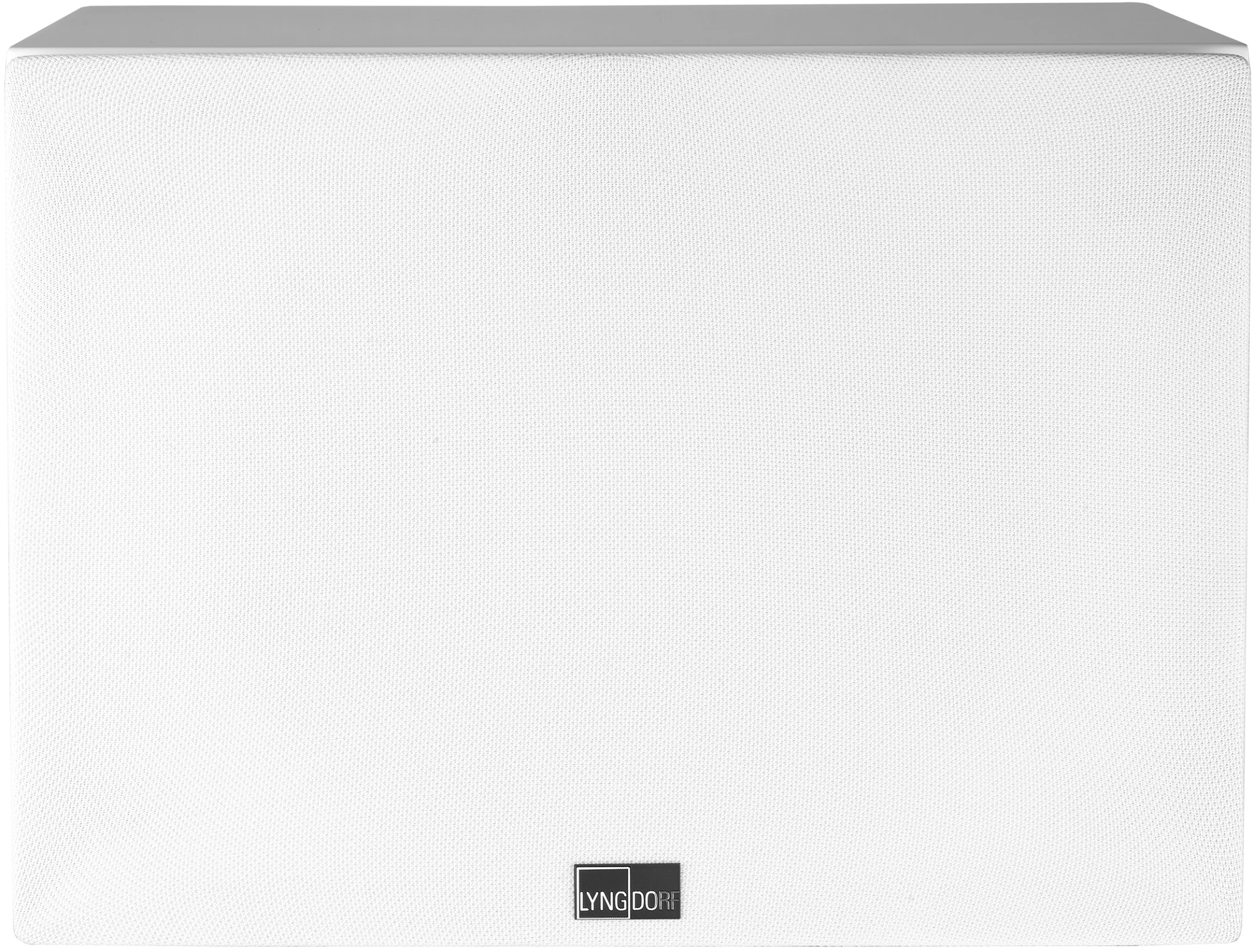

Lyngdorf BW-3 Active High Bandwidth Subwoofer (Matte White)

The BW-3 is designed as a high bandwidth subwoofer with the
objective of reproducing optimal dynamics and precision. This is reflected in
the frequency range of the driver reaching up to 800 Hz in bypass mode, in
contrast to traditional subwoofers, which are typically limited to 120 Hz.

Powerful and compact design

The internal amplifier is Lyngdorf Audio’s Class-D design
based on more than 15 years of experience in designing audiophile Class-D
amplifiers. With an output of 400 watts, it can deliver ample power to control
the powerful 8” driver – even at high levels. The BW-3 is equipped with a
long-throw driver mounted in an extremely compact enclosure. For the driver to
work in such a compact cabinet, with only 7 l of internal volume, a custom unit
was designed. The 8” woofer features a massive “motor,” which has an extremely
fast response and high efficiency.

Flexibility in installation

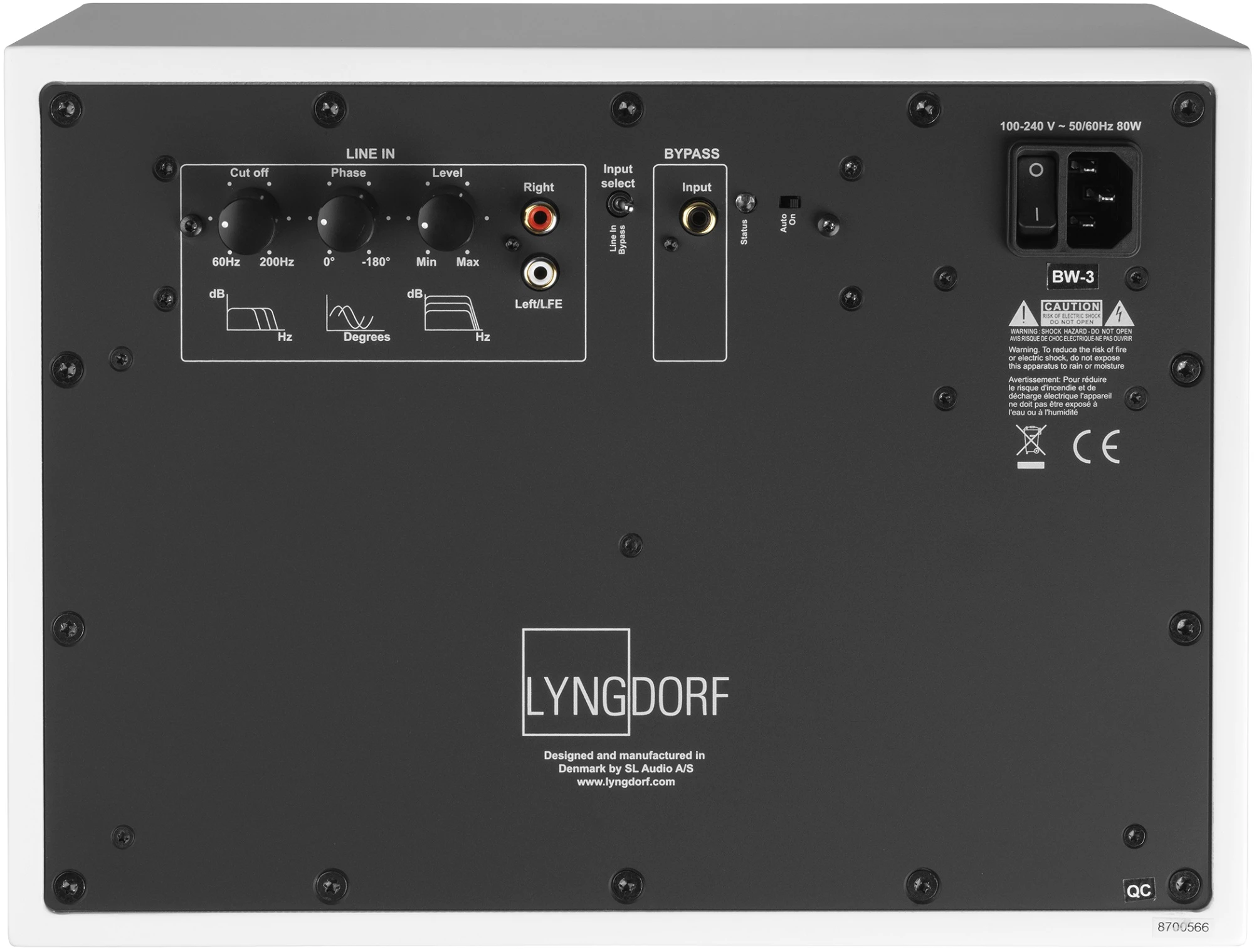

The woofer fits into all types of setups, as the amplifier
module holds the traditional signal controls as well as a bypass switch for
easy and direct connection to Lyngdorf Audio amplifier outputs or to other
audio products, which provides full control of the sub-out connection.

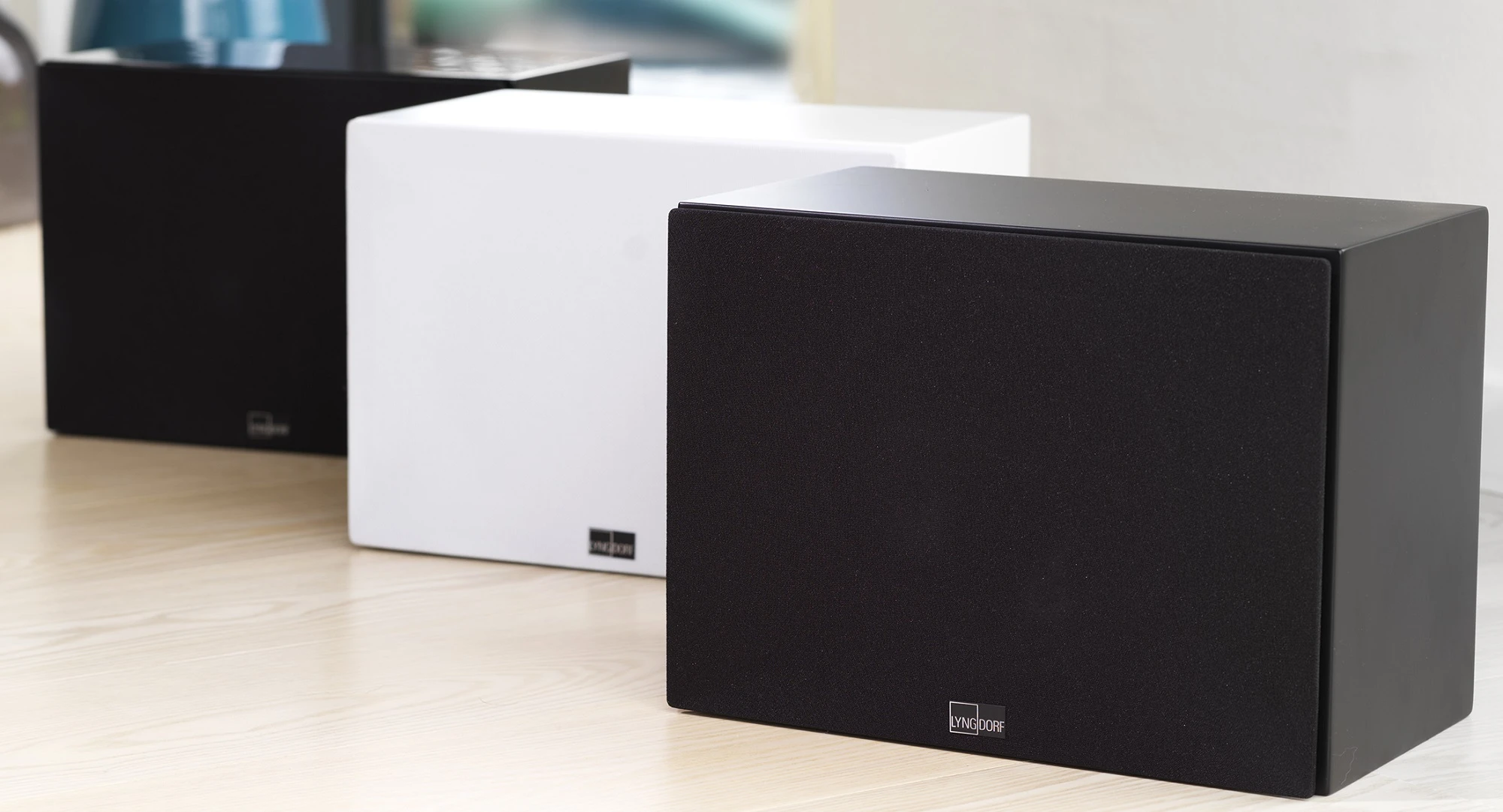

The BW-3 is delivered without feet mounted, as the compact
cabinet design allows for several ways to integrate the speaker with home

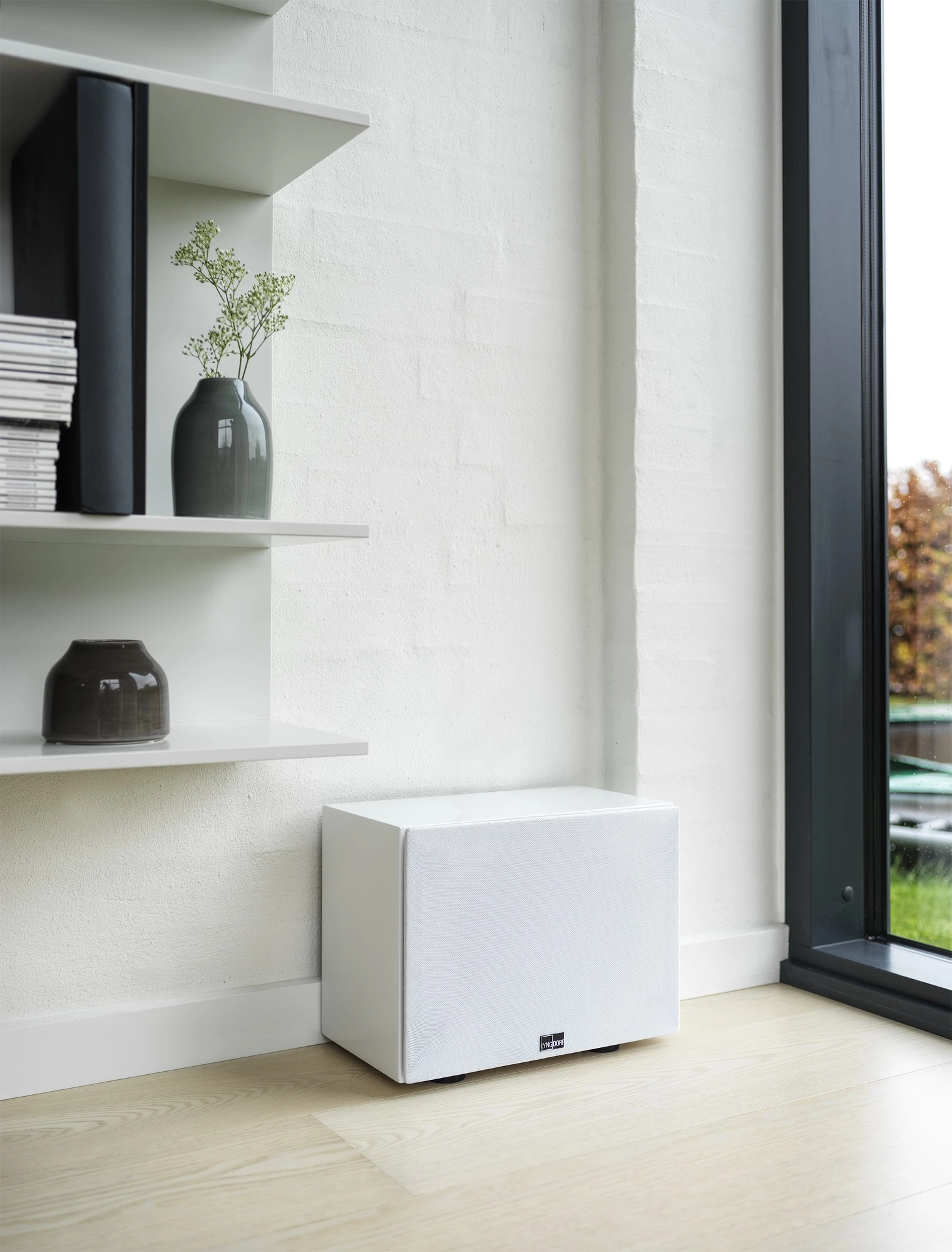

décor. With cabinet dimensions reduced to a minimum, the BW-3 can be positioned
standing upright or on its side in order to fit into the available space. This
construction makes it the perfect match for any setup, as a subwoofer for other
speakers in a stereo or home cinema system.

Specifications

: Active high bandwidth subwoofer

Midrange driver: 8” long throw driver, Ø 38mm / 1 1/2 in voice
coil, cone material: aluminum

Amplifier: 400 W RMS, Class-D type

Enclosure: Closed cabinet type, full MDF construction, volume: 7.25
liters

Frequency response: 27 to 200 Hz (using line in input), 27 to 800
Hz (using bypass input)

Maximum SPL: 99dB RMS THX method: 40-80 Hz

Controls: Bypass switch, phase control (0 to -180°), level control,
x-over frequency (60 to 200Hz)

Connections: RCA / analog mono input

Dimensions (W x H x D): 31.5 x 23 x 17.2 cm, 12.4 x 9.1 x 6.8 in

Weight: 8.9 kg / 19.6 lb

Finish: High-gloss black, matte black or matte white
