Legacy Audio Phantom HD On-Wall Speakers (Exotic Finishes)

SOLD AS A PAIR – CHOOSE FROM THE EXOTIC FINISHES

The role of the surround speaker is to create a convincing, continuous envelopment for each listener, without introducing distractions such as bright spots, dead zones, or timbre imbalance. Legacy Audio offers versatility and performance in surround speaker options by providing on-wall, inwall, stand mount and pivoting bracket designs.

You can be assured that each of these speakers is of premium quality and is carefully voiced to integrate within the Legacy line.

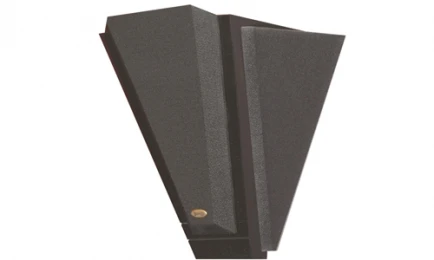

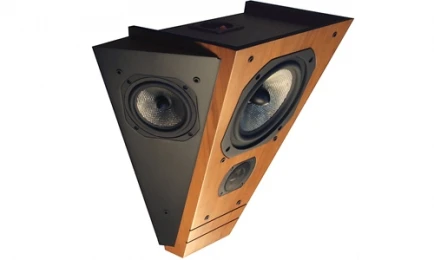

The Phantom HD on-wall speaker provides a multipolar radiation pattern for the ultimate in spatial envelopment. The front firing 8” Silver/Graphite midbass and the 1” spiral ribbon tweeter are precisely angled for optimal coverage of the listening area, while the bipolar 5.25” drivers fill the off-axis response. On-wall mounting is accomplished easily with a double keyhole mounting bracket (included) which locks the speaker securely into position.

Designer Notes from Bill Dudleston on the Phantom:

“The Phantom is a very carefully conceived speaker with more technology than meets the eye… I’ll explain.

Anytime you place a loudspeaker element near a boundary it is always accompanied by a reinforcement rise, then followed by a dip. The frequency of the dip is a function of the distance from the boundary. When I built the Phantom, I carefully positioned the 5.25″ drivers very close to the wall to fill in the response -just where the 8″ driver is subject to a dip in the frequency response.

This arrangement also enhances dispersion and prevents near field hot spots. Phantom is a diffuse field radiator that uses the wall to its advantage, yet provides great direct field clarity. The slopes in the baffles are key to the performance. They work great as side, rear, and height channels and can even be used as overhead channels on a sloped ceiling.

Consistent with the new Atmos (Dolby) standards, Phantom avoids the phasey dipole effect of the early days of home theater.”
