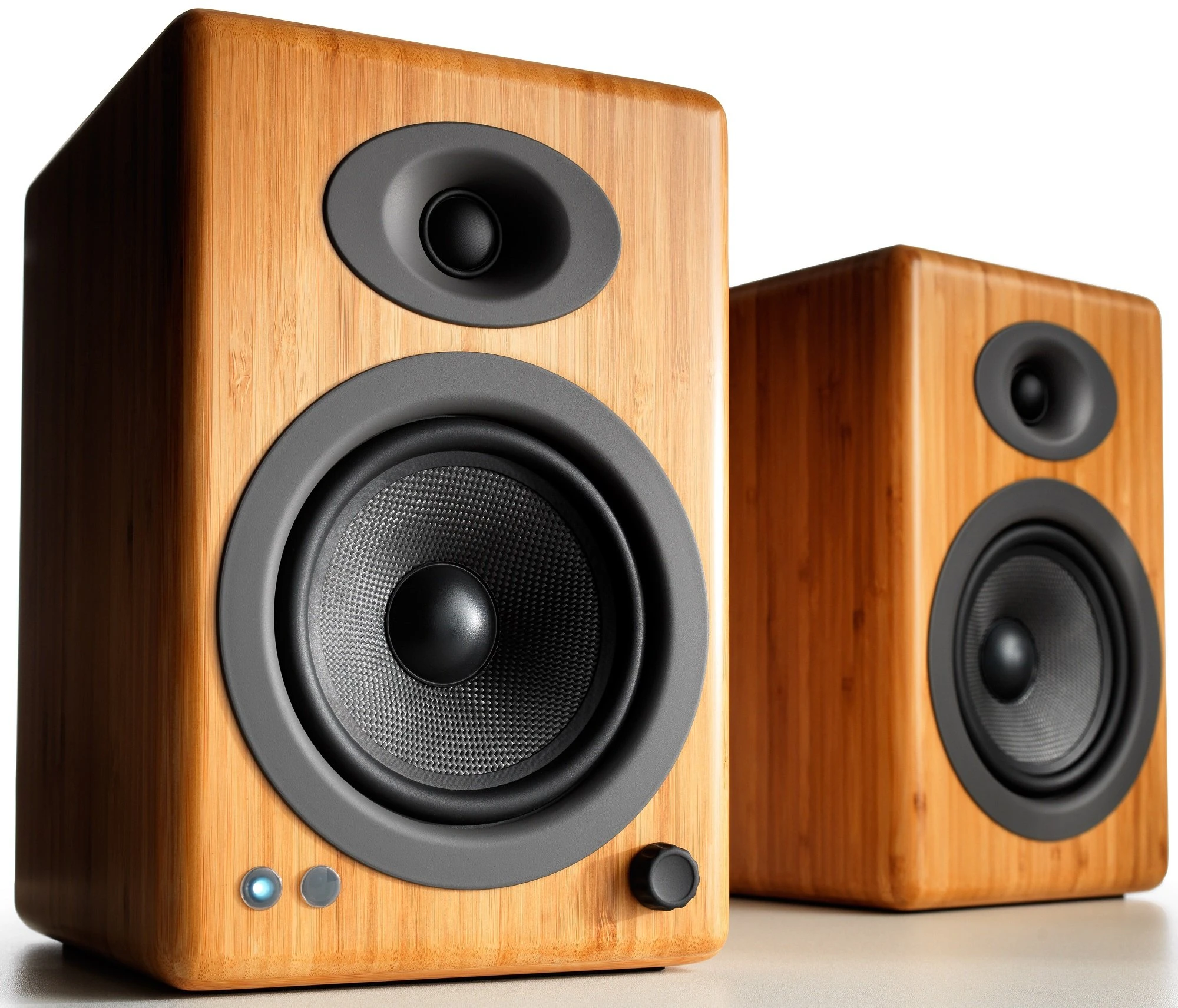

Audioengine A5+BT Wireless Bookshelf Speakers (Bamboo)

Powerful audiophile-grade wireless speakers.

The A5+ Wireless Speakers are an exciting evolution changing the way people
listen to music. A5+ Wireless isn’t just a pair of wireless speakers but a
complete music system.

HIGHLIGHTS

• Left
  and right speaker included.

• Everything
  you need is in the box!

• 3 year
  warranty*

EVERY APP, EVERY
DEVICE

WIRELESS THAT REALLY WORKS

The ultimate wireless music system that seamlessly works
with all your apps, music, and devices. No matter how you listen, A5+ Wireless
has you covered.
Tidal, Spotify, Pandora…all your favorite streaming apps
play instantly.

SMALL SPEAKERS, BIG
SOUND

Clear, full and powerful audio that fills any room. The A5+
Wireless Speakers are constructed with custom Audioengine components: Kevlar
woofers, silk tweeters, high-fidelity Bluetooth aptX-HD, and built-in power
amps wrapped in hand-built wood cabinets with furniture-grade finish. Perfect
for any size space.

SET UP IN SECONDS

SIMPLE. NO HASSLE. EASY TO USE.

The A5+ Wireless Speakers are small bookshelf speakers
packing a big sound that fills any room. There is no network to setup,
passwords to create, buttons to push, and inputs are always ready to go. Keep
your music fun and easy.

GO OLD SCHOOL

ANALOG, BABY

Audioengine speakers are special. Their class A/B analog
amps sound incredible compared to cheaper digital amps found in other
mass-produced brands. A whole new music experience, guaranteed.

Warning: Listening to the A5+ Wireless may cause goofy
smiling

FEATURES

Built-in analog class A/B monoblock power amplifiers Solid aluminum remote control High-fidelity advanced Bluetooth® with aptX®, simplified setup, extended range, and 24-bit upsampling RCA and mini-jack audio inputs Front panel volume control Variable preamp audio output Gold-plated connectors Full-size 5-way speaker binding posts Custom Kevlar woofers and silk tweeters Hand-built MDF wood cabinets Magnetically shielded Advance tuned cabinet with rear-ported waveguide Stand-mount 1/4″ threaded inserts Cables included

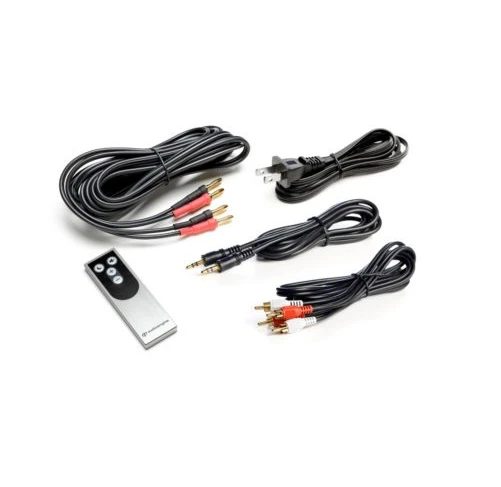

WHAT’S IN THE BOX

(1) A5+ Wireless powered (left) speaker (1) A5+ Wireless passive (right) speaker (1) Remote control (1) Antenna (1) Speaker wire (16AWG), 4 meters (~13ft) (1) Detachable AC power cord (1) Mini-jack audio cable, 2 meters (~6.5ft) (1) RCA audio cable, 2 meters (~6.5ft) (2) Microfiber speaker bags (1) Microfiber cable bag (1) Quickstart guide (1) Product line brochure

WORKS WITH

Mac, PC, tablets, or smartphones Any operating system (Windows, MacOS, Linux, iOS, Android) Any music player app or streaming service (iTunes, TIDAL, Youtube, Amarra, etc.) Any product with Bluetooth, mini-jack, or RCA outputs (TV, Apple TV, network streamer, etc) All Audioengine digital-to-analog converters and wireless audio adapters

FINISH OPTIONS

Black Satin Paint Hi-Gloss White Paint Solid Natural Bamboo

MATERIALS AND CONSTRUCTION

1/2” (13mm) thick MDF cabinets 5” (130mm) Kevlar woofers with advanced voice coils 3/4” (20mm) silk dome tweeters with neodymium magnets Torroidal power transformers



GENERAL SPECIFICATIONS

Type 2.0 powered (active) bookshelf-style speaker system Power Output 150W peak power total (50W RMS / 75W peak per channel), AES Inputs 3.5mm stereo mini-jack, RCA L/R Input Voltages 115/240V, 50/60Hz manually switchable Amplifier Type Dual Class AB monolithic Drivers 5″ Kevlar woofers, 3/4″ silk dome tweeters SNR >95dB (typical A-weighted) THD+N <0.05% at all power settings Crosstalk -50dB Frequency response 50Hz-22kHz ±1.5dB Input impedance 10K ohms unbalanced Protection Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fuse Power Consumption Idle: 10W Mute: 6W Sleep: 4W

BLUETOOTH SPECIFICATIONS

Internal D/A converter AKM AK4396 Input bit depth 24-bits upsampled Bluetooth receiver type Bluetooth 4.0 audio Supported codecs aptX, AAC, SBC Wireless operation range Up to 100ft (30m) typical Input data rate Determined by Bluetooth Wireless latency ~30 milliseconds (ms)

WEIGHTS AND MEASURES

Dimensions (each speaker HWD) Left – 10.75″ (27cm) x 7″ (18cm) x 9″ (23cm) Right – 10.75″ (27cm) x 7″ (18cm) x 7.75″ (20cm) Weight (LEFT speaker) 15.4 lbs (7 kg) Weight (RIGHT speaker) 9.6 lbs (4.4 kg) Shipping weight 31 lbs (14 kg) Shipping box dims 15″ (38cm) x 22″ (56cm) x 11.5″ (29cm)

FINISH OPTIONS

Satin Black Paint Hi-Gloss White Paint Solid Carbonized Bamboo

ENVIRONMENTAL REQUIREMENTS

Operating temperature: 32° to 95° F Non-operating temperature: -4° to 113° F Relative humidity: 5% to 95% non-condensing

MATERIALS AND CONSTRUCTION

1/2” (13mm) thick MDF cabinets 5” (130mm) Kevlar woofers with advanced voice coils 3/4” (20mm) silk dome tweeters with neodymium magnets Torroidal power transformer

INCLUDED ACCESSORIES

(1) Remote control (1) Antenna (1) Speaker wire (16AWG), 4 meters (~13ft) (1) Detachable AC power cord (1) Mini-jack audio cable, 2 meters (~6.5ft) (1) RCA audio cable, 2 meters (~6.5ft) (2) Microfiber speaker bags (1) Microfiber cable bag (1) Quickstart guide (1) Product line brochure

CUSTOM BUILT

Audioengine designs and manufactures our own tweeters, woofers, and other critical components. In other words, these are not “box built” speakers with off-the-shelf parts but custom-designed to our specifications. What we do not fabricate directly in our factory we have made to our designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components.

DRIVERS

Audioengine uses audiophile-quality, ferro fluid cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are Kevlar woven glass aramid composite with rubber surrounds. Kevlar is obviously very strong, which means that the woofer retains its shape when being driven at high levels. The speaker materials and construction are robust enough to stand up to some serious thrashing, so speaker grills aren’t needed and they will sound and look great after many years of use.

POWER AMPLIFIERS

The amplifiers in Audioengine speakers are located in the left speaker and are a conservatively rated analog design. All components are tuned together for each model, which provides a much more efficient system requiring less power than passive speakers and separate amplifiers. Circuit boards for the power and preamp sections are mounted for maximum mechanical shock protection.

POWER TRANSFORMERS

Power transformers are a large contributor to the overall audio performance, especially in the low end. Again, no off-the-shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, directly translating to lower noise. They are lighter than standard, lower-cost “EI” transformers and also generate less heat.































SHIELDING

Both drivers are directly video shielded and allow the user to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard-drive digital music players.
