Audio-Technica AT33EV Elliptical Nude Dual MC Phono Cartridge

Audio-Technica AT33EV Elliptical Nude Dual MC Phono
Cartridge

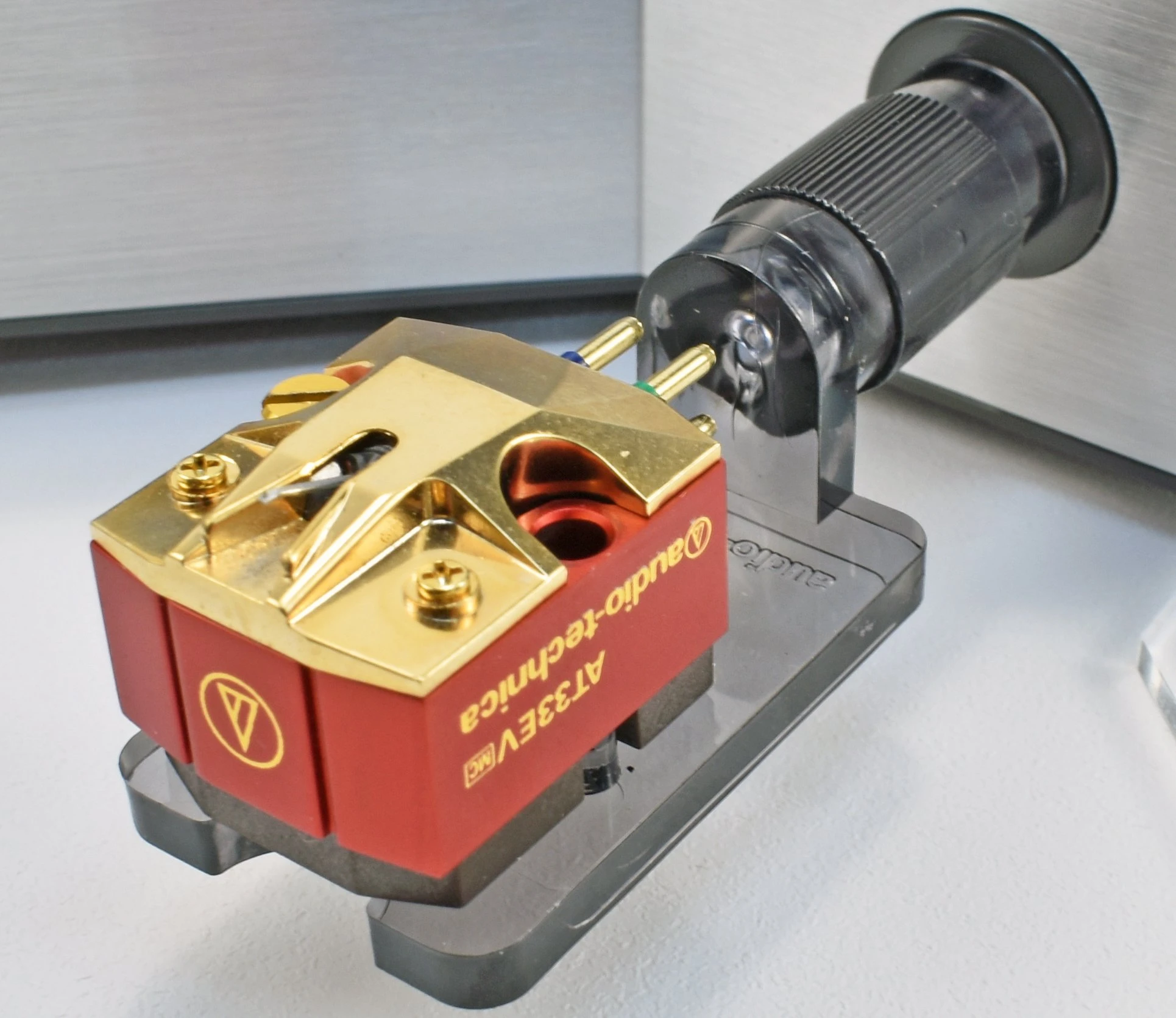

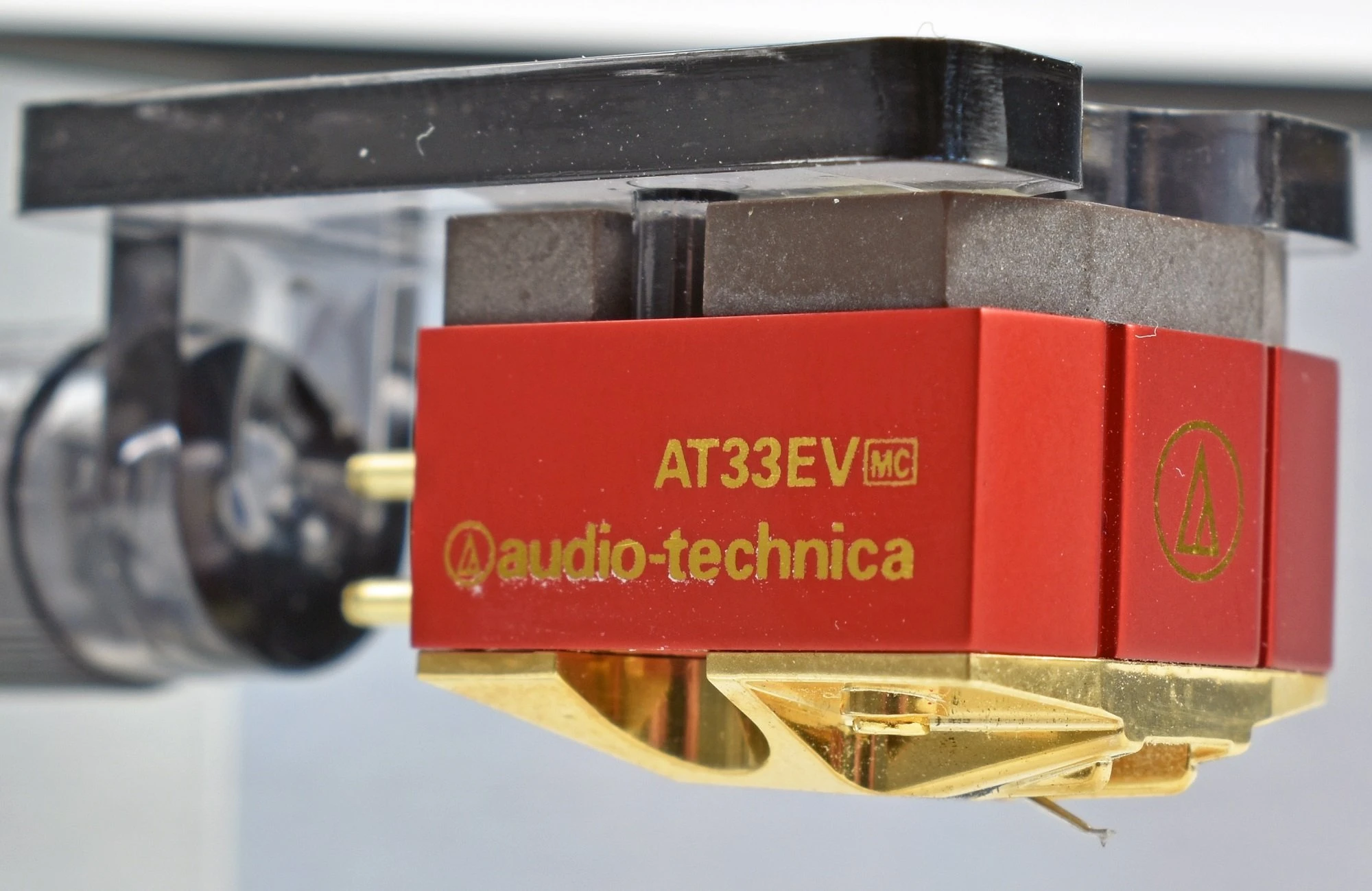

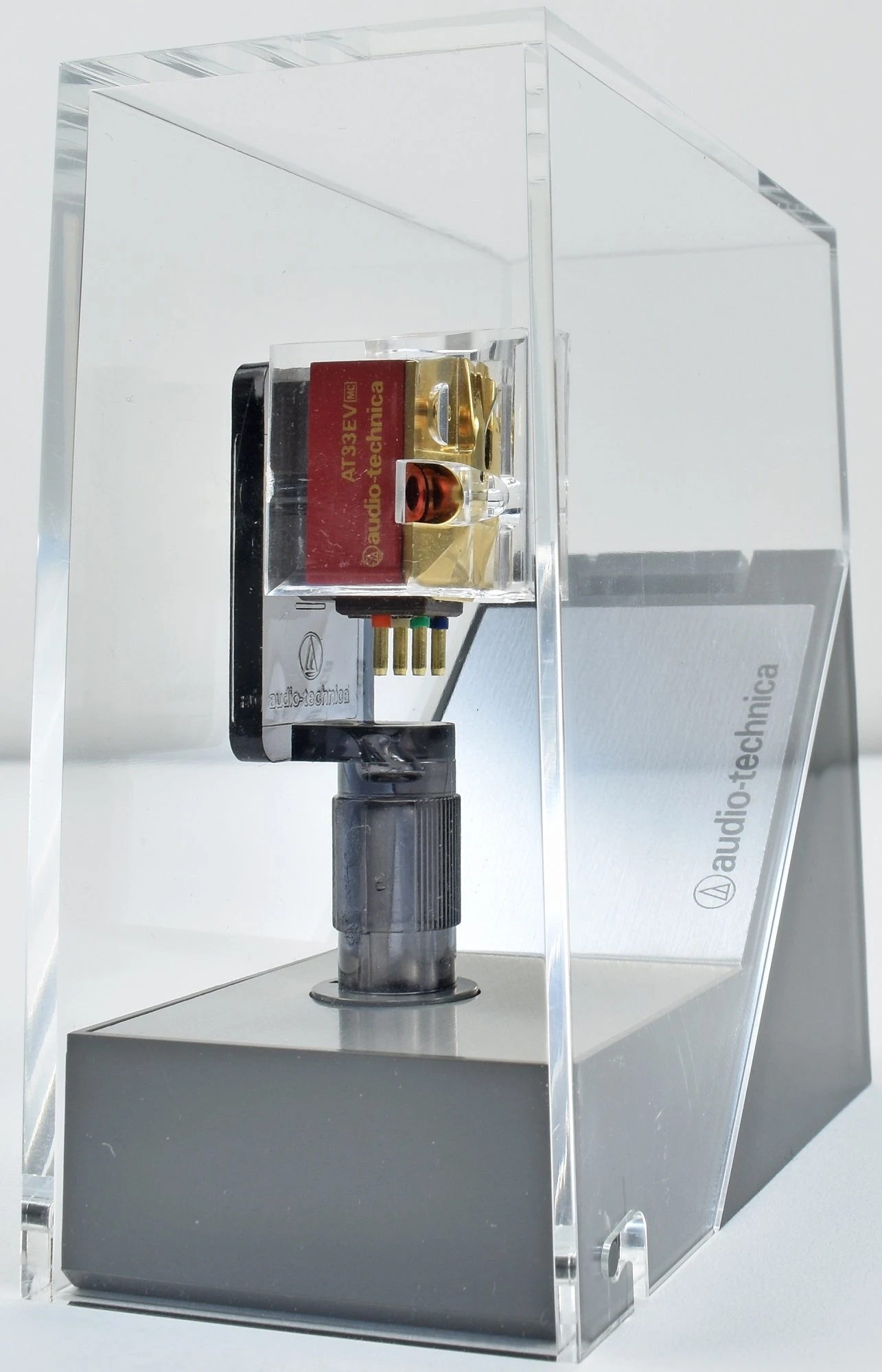

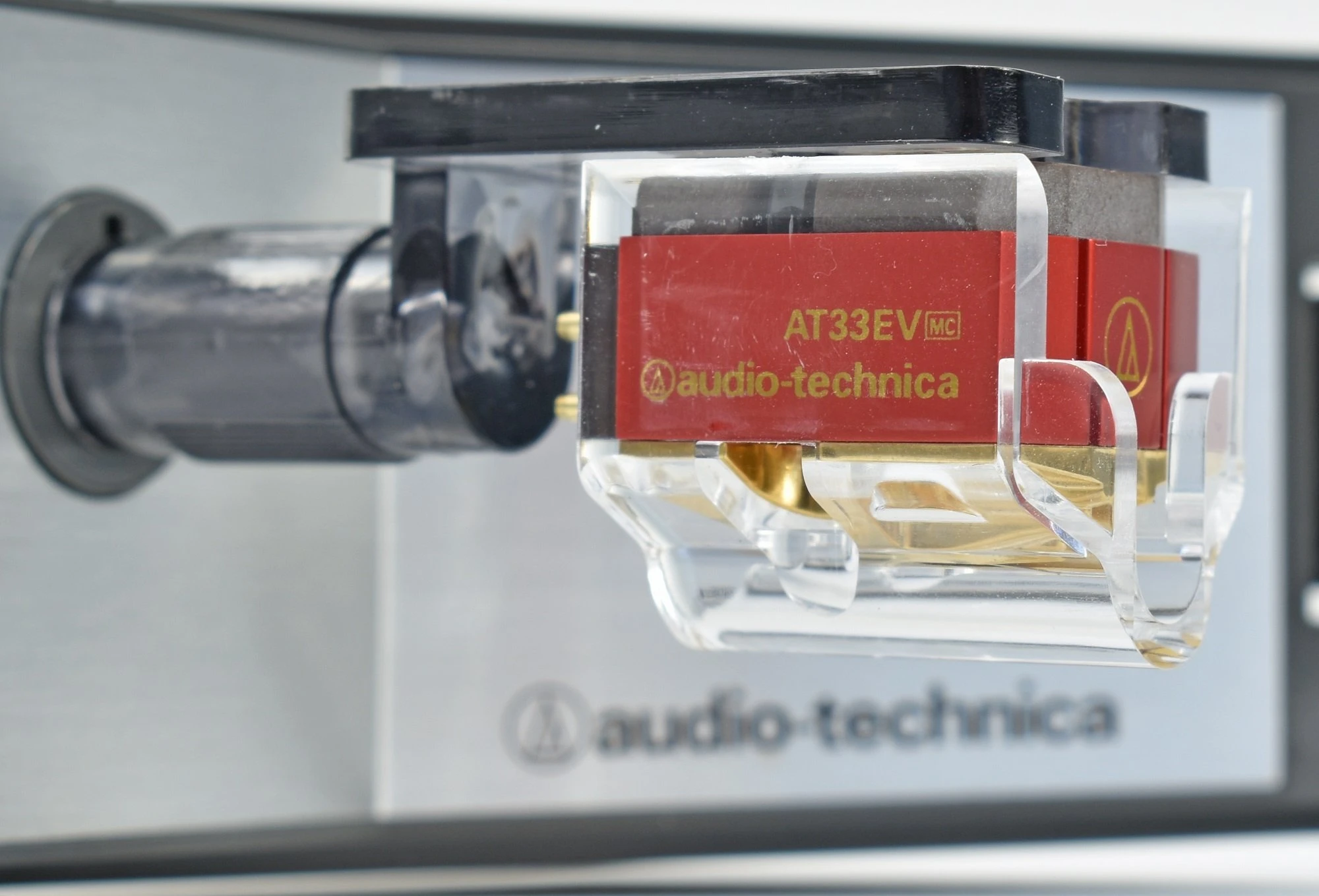

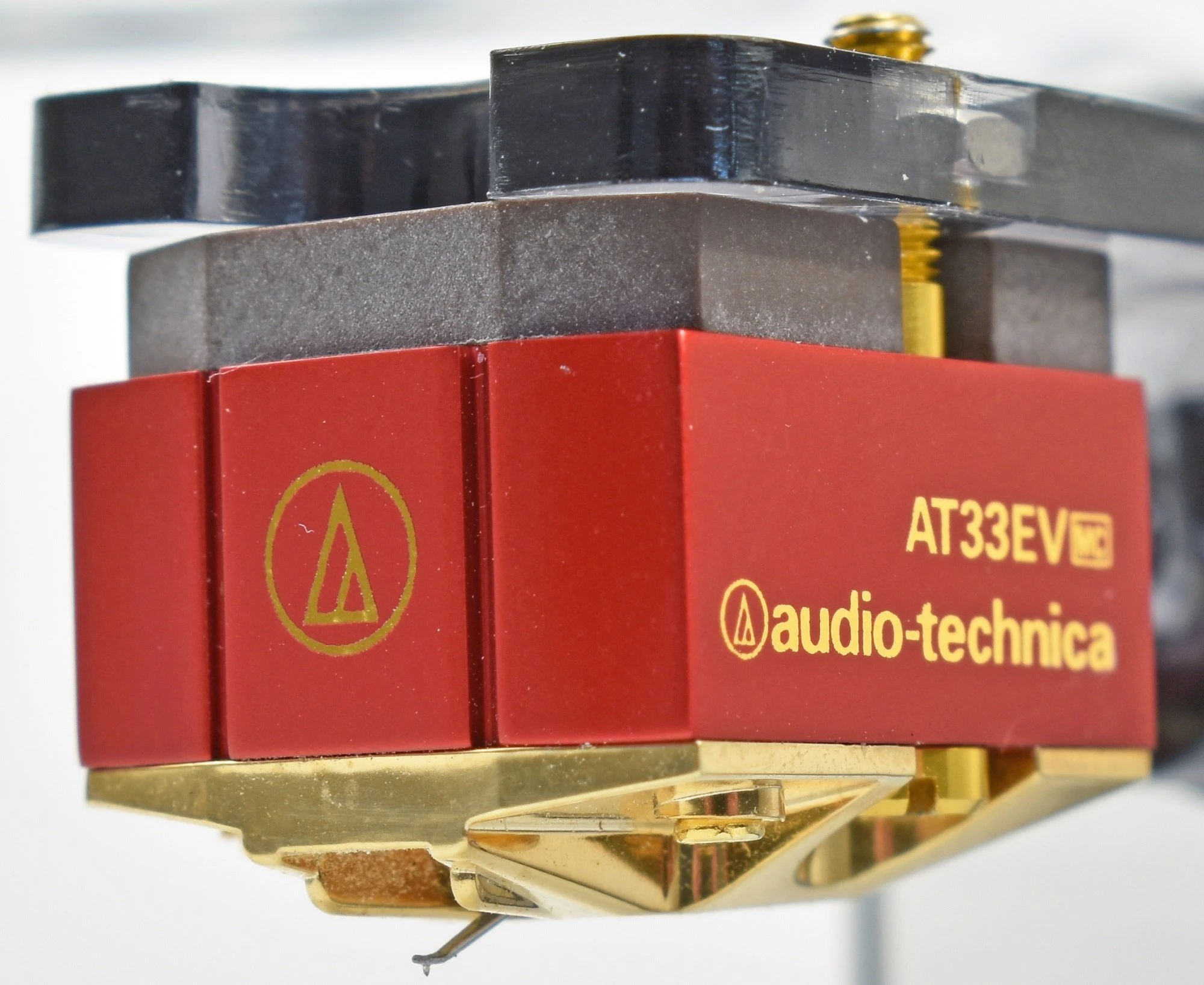

PREOWNED – FULLY TESTED – INCLUDES ORIGINAL
BOX, MANUAL, NEEDLE GUARD, SCREWS, HEADSHELL WIRES

AT33EV Moving Coil Cartridge
The original model of this stereo cartridge is the AT33ANV,
which was available as a special release to celebrate our 45th anniversary. The
A33ANV was the first in the AN33 series to feature a Duralumin cantilever,
which received wide acclaim for its sound quality. Retaining the basic
specification, we present a further improved and evolved model.
The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil
elliptical cartridge featuring a tapered Duralumin cantilever which reduces the
effective mass of the cartridge, resulting in a more durable cantilever. The
Dual Moving Coil cartridge design increases channel separation and extends the
frequency response range delivering extraordinary audio quality. Internally
constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for
pure audio transmission.

• Elliptical
  stylus chip and durable duralumin tapered pipe cantilever

• 10O
  mid impedance specifications

• Dramatically
  increased magnetism with neodymium magnets and PCOCC as the coil

• High
  separation, wide-response dual moving coil

• VC
  Mold eliminates unnecessary vibrations

• “Hanenite”
  anti-vibration rubber eliminates unwanted vibrations

“Minimises unnecessary vibration”
‘Hanenite’ is used in the housing interior and the
cantilever fulcrum support to minimize unnecessary vibration, to allow the
outstanding basic performance of the dual moving coil to fully express itself.
“Ability to richly reproduce sounds”
Elliptical stylus chip, embedded into a hard duralumin
tapered pipe cantilever, has the ability to richly reproduce sounds in the
medium and low ranges. With its outstanding machine strength, the duralumin
cantilever is tough enough for the job and produces natural sounds without
distortion.

Cartridge & Stylus
Frequency Response	15 – 50,000Hz
Channel Separation	30dB (1kHz)
Vertical Tracking Angle	23°
Stylus Construction	Nude Square Shank
Recommended Load Impedance	More than 100Ω (when head amp connected)
Coil Impedance	10Ω (1kHz)
DC Resistance	10Ω
Coil Inductance	22µH (1kHz)
Output Voltage	0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance	0.5dB (1kHz)
Stylus Shape	Elliptical
Cantilever	Duralumin
Static Compliance	40×10-6cm/dyne
Dynamic Compliance	10×10-6cm/dyne (100Hz)
Mounting	1/2″ Centers
Dimensions	H16×W16.6×D26.5mm
Accessories Included	Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material	Aluminium/Synthetic Resin
Stylus Curvature Radius	0.3 x 0.7 mil
Terminal Pins	Brass
Type	Dual Moving Coil
Weight	6.9g
