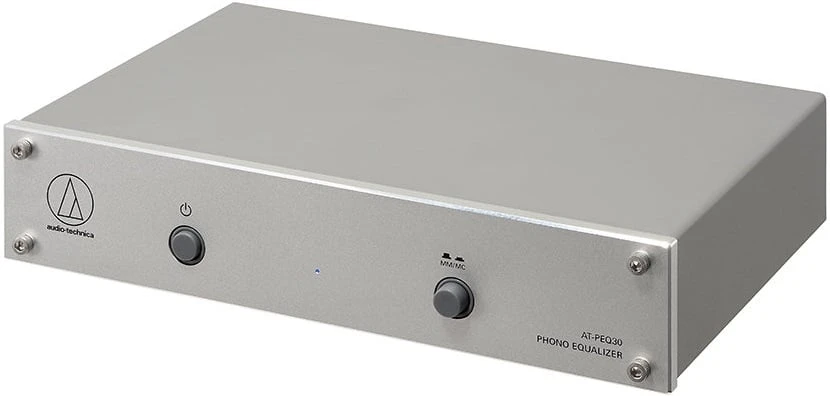

Audio-Technica AT-PEQ30 MC/MM Stereo Phono Preamp/Equalizer

The AT-PEQ30 is standalone phono preamp designed to upgrade
the sonics from your turntable. Even if your turntable has an in-built phono
pre-amp, the AT-PEQ30 will likely improve the sound you are receiving. It is
compatible with turntables with VM, MC and MM cartridges.

Features:

• Selectable
  MM and MC input with fixed gain and impedance allows for compatibility
  with a wide range of moving magnet and moving coil cartridges

• High-quality
  FET inputs ensure a low noise signal when incorporated with a negative
  feedback-type phono equalizer circuit

• Precision
  components provide an excellent RIAA response for best-in-class
  performance

• The
  all metal construction enclosure provides superior isolation from radio
  and electronic noise interference

• The
  machined aluminium front panel and gold-plated input/output RCA connectors
  are examples of the high-grade material used throughout

AT-PEQ30 Specifications

Input Impedance
      MM : 47kΩ / MC : 120Ω
Sensitivity
            MM : 4.5mV /
MC : 0.28mV
Nominal Output Level
 MM : 250mV / MC : 250mV
Gain
                      MM
: 35dB / MC : 59dB
Signal-To-Noise Ratio
 MM : 100dB / MC : 74dB
RIAA
Deviation
MM : ±0.5dB / MC : ±0.5dB (20 ~ 20kHz)
Power
Supply
DC 15V, 1.2A
Rating
Capacity
2.5W
Dimensions
H47mm x W197.5mm x D125.5mm
Weight
Approx. 890g
Accessories Furnished
 AC adapter
