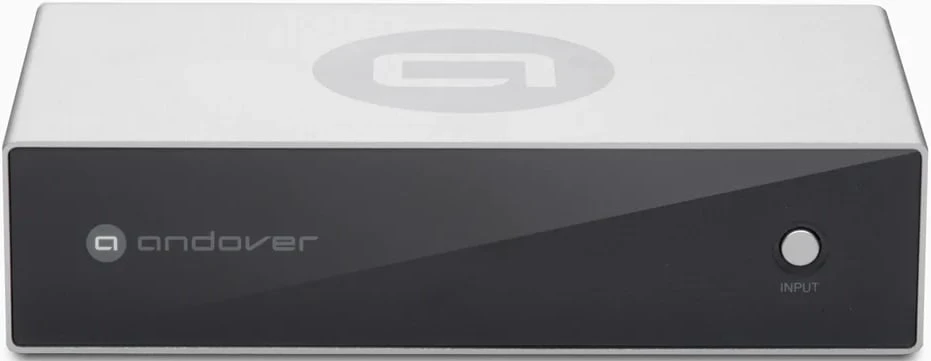

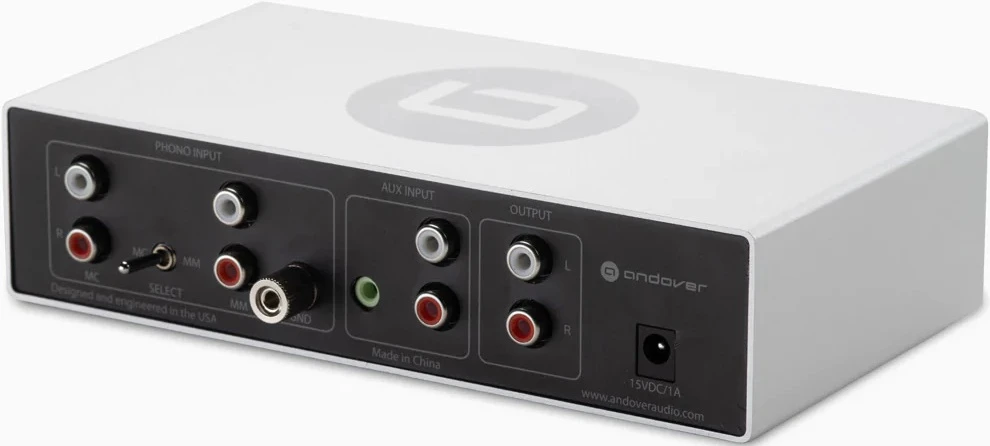

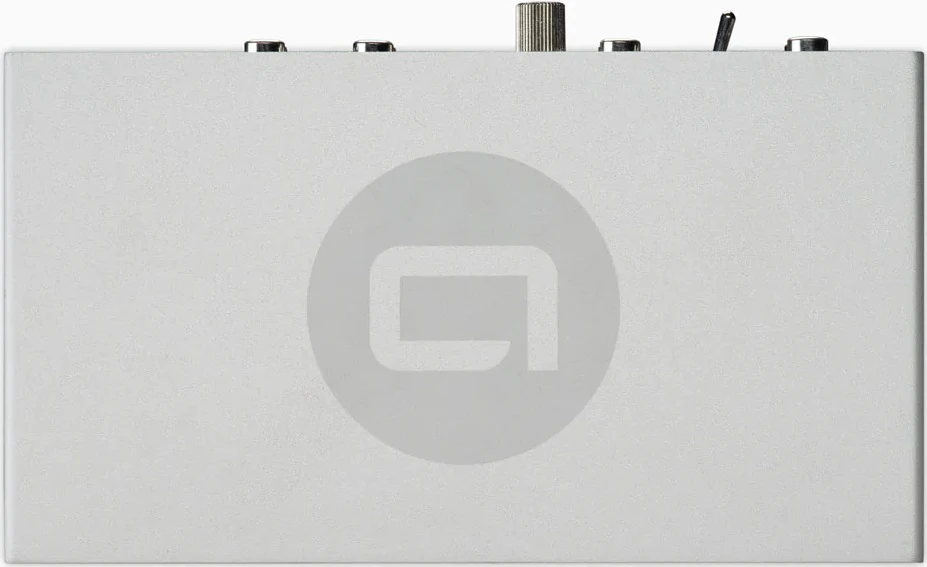

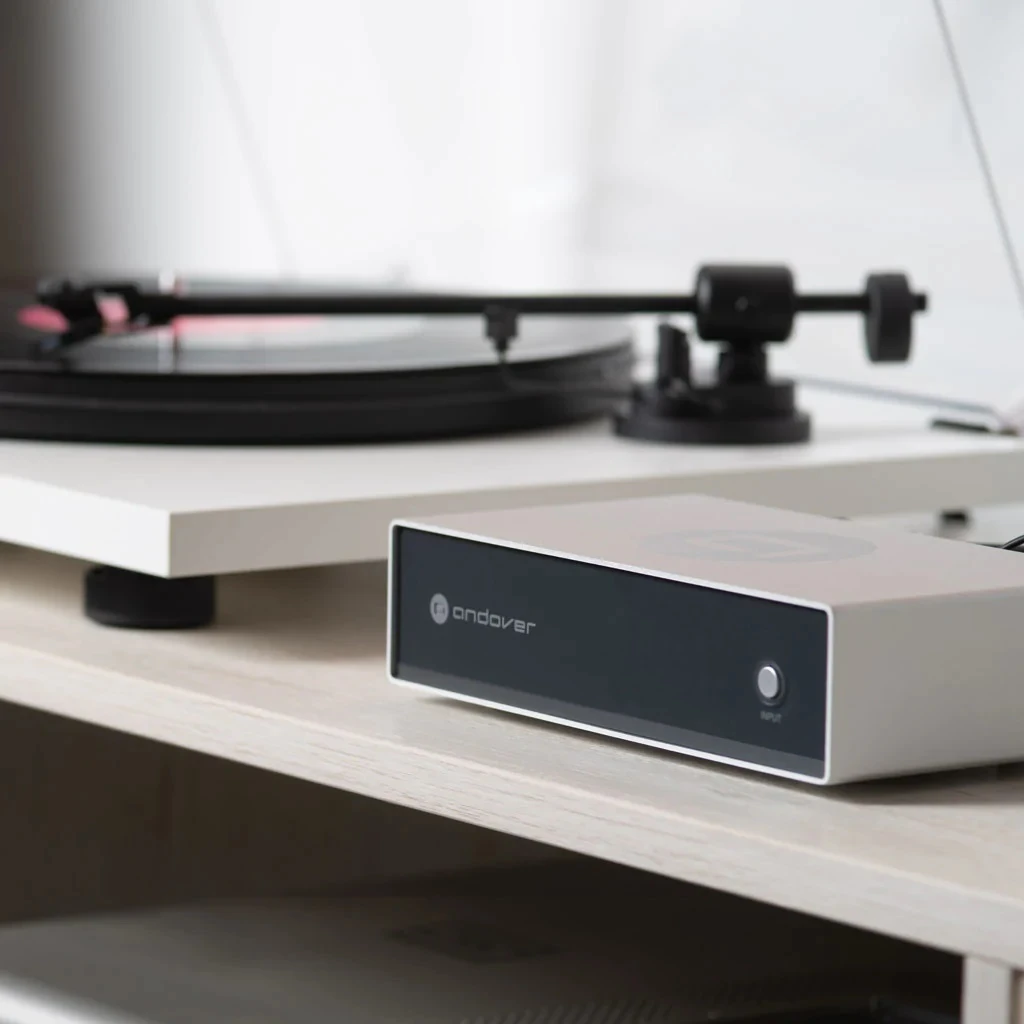

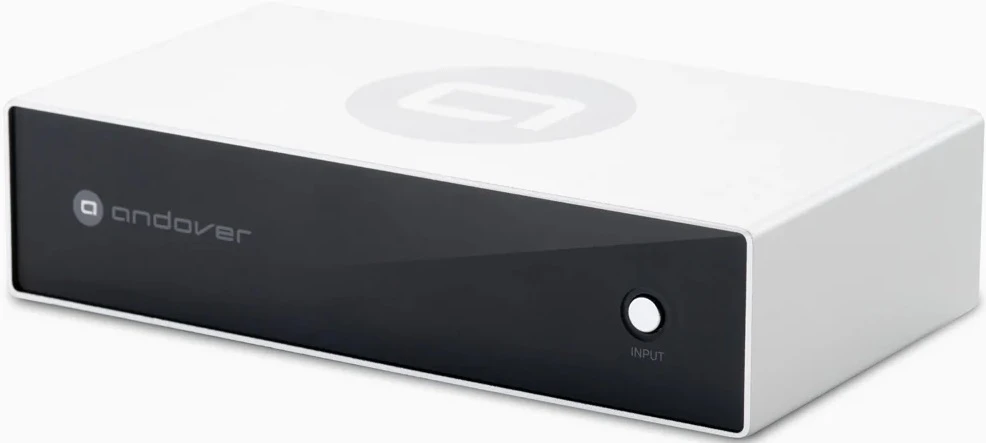

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier - Image 2

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier - Image 3

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier - Image 4

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier - Image 5

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier

Original price was: $249.00.Current price is: $98.99.

SKU: SpinStage Category: Turntables & Phono

Enjoy top quality items for less
Buy with Peace of Mind
Safeguard Your Shopping Experience
Fast, friendly, always here to help.

MOVING MAGNETIC / MOVING COIL PHONO STAGE

Ultra low-noise phono stage (pre-amp) to support virtually
any cartridge type.

Performance-Optimizing
Selectable Input Resistance & Capacitance and Subsonic
Filter

Isolated
Dual-Mono Circuitry

DC
Servo Circuit

Supports
Moving Magnetic/Coil Cartridges

Desktop-Friendly
Design

Bead-Blasted Aluminum
Shell

Acrylic
Front Panel

Soundbites
Series Component

SPINSTAGE – MOVING MAGNET / MOVING COIL PHONO STAGE

SpinStage has been painstakingly engineered to deliver
outstanding sound quality with virtually any Magnetic or Moving-Coil cartridge.
It is the perfect choice to add a phono input to an audio system that lacks
one, to add Moving-Coil compatibility, or to simply improve upon your system’s
internal circuit.

RIAA Equalization Accuracy:	+/- 0.1dB typ, 0.2dB max
Overall Frequency Response:	0.5Hz – 50kHz +/- 1dB
Signal to Noise Ratio (unweighted):	MM – 78dB, MC – 76dB (Referenced to 50 Ohm source)
Input Impedance, MM (selectable):	18k Ohm, 22k Ohm, 47 kOhm, 100k Ohm
Input Impedance, MC:	Effectively 0 Ohm
Input Capacitance, MM (Selectable):	0pF, 22pF, 47pF, 69pF, 100pF, 122pF, 147pF, 169pF, 220pF, 242pF, 267pF, 289pF, 320pF, 342pF, 389pF
Nominal Gain, MM:	40.5dB
Nominal Gain, MC:	66.5dB (with 10Ohm source)
Subsonic Filter:	20Hz, 12db/Octave. Bypassable.
Typical Output Level:	500mV RMS
Max Output Level:	8V RMS
Input Overload, MM:	120mV @ 1kHz
Input Overload, MC:	6mV @ 1kHz
Aux Input:	Direct passthrough via relay, no active circuitry.
Power Requirements:	15vDC/500mA
Dimensions:	7-1/4″ (185mm) W x 1-7/8″(47.5mm) H x 4.5″ (115mm) D
Product Weight:	1.1 lbs (500g )
Finish:	Fine bead-blasted clear anodized aluminum

Weight	0.00000000 lbs

Reviews

There are no reviews yet.

Andover Audio SpinStage MM/MC Ultra Low-Noise Phono Preamplifier

MOVING MAGNETIC / MOVING COIL PHONO STAGE

Ultra low-noise phono stage (pre-amp) to support virtually any cartridge type.

Performance-Optimizing Selectable Input Resistance & Capacitance and Subsonic Filter Isolated Dual-Mono Circuitry DC Servo Circuit Supports Moving Magnetic/Coil Cartridges Desktop-Friendly Design Bead-Blasted Aluminum Shell Acrylic Front Panel Soundbites Series Component

SPINSTAGE – MOVING MAGNET / MOVING COIL PHONO STAGE

RIAA Equalization Accuracy:

+/- 0.1dB typ, 0.2dB max

Overall Frequency Response:

0.5Hz – 50kHz +/- 1dB

Signal to Noise Ratio (unweighted):

MM – 78dB, MC – 76dB (Referenced to 50 Ohm source)

Input Impedance, MM (selectable):

18k Ohm, 22k Ohm, 47 kOhm, 100k Ohm

Input Impedance, MC:

Effectively 0 Ohm

Input Capacitance, MM (Selectable):

0pF, 22pF, 47pF, 69pF, 100pF, 122pF, 147pF, 169pF, 220pF, 242pF, 267pF, 289pF, 320pF, 342pF, 389pF

Nominal Gain, MM:

40.5dB

Nominal Gain, MC:

66.5dB (with 10Ohm source)

Subsonic Filter:

20Hz, 12db/Octave. Bypassable.

Typical Output Level:

500mV RMS

Max Output Level:

8V RMS

Input Overload, MM:

120mV @ 1kHz

Input Overload, MC:

6mV @ 1kHz

Aux Input:

Direct passthrough via relay, no active circuitry.

Power Requirements:

15vDC/500mA

Dimensions:

7-1/4″ (185mm) W x 1-7/8″(47.5mm) H x 4.5″ (115mm) D

Product Weight:

1.1 lbs (500g )

Finish:

Fine bead-blasted clear anodized aluminum
